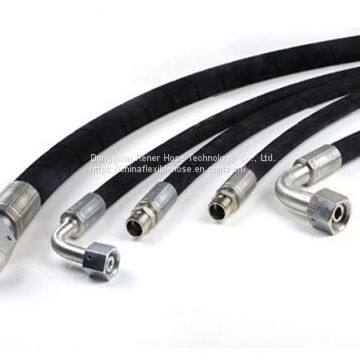

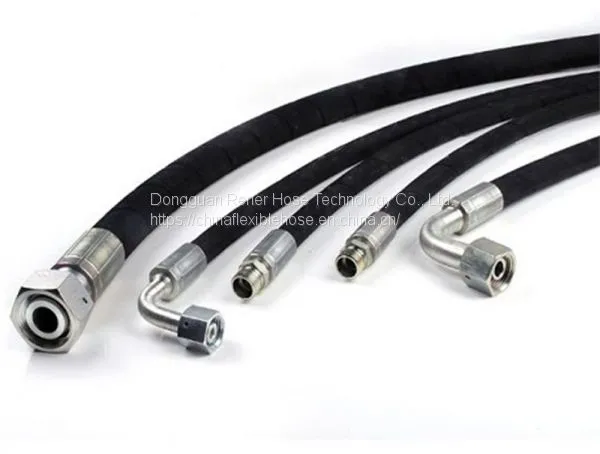

Help CenterAutomotive AC Hose
Related Products
Automotive AC Hose, Car Air Conditioner Hose Assembly, High pressure Car Wash Hose Supplier.
Introduction:
TUBE: inner tube of weather resistant synthetic
REINFORCEMENT: lsolation layer is made of nylon barrier material resistant to low refrigerant permeation and low moisture permeability
COVER: black smooth
IMPLEMENTATION STANDARDS:QC/T664-2000
Features:
Oil, heat and aging resistant high compression resistance good flexibility Anti leakage, anti-aging and long service life
Application:
Product Overview： Products are mainly used in Various types of automobile air conditioner suitable for conveying refrigerant R134a, It is used in automobile, mini truck, truck, big minibus and so on. This hose is made of special weather resistant rubber compound, lsolation layer is made of nylon barrier material resistant to low refrigerant permeation and low moisture permeability. Hose finish is black smooth. Hose quality subject to QC/T 664-2000 stand requirement of big domestic and foreign automobile manufacturers.
Parameter:
Automotive AC Hose Series Specifications:
LT789A size（suitable for mini trucks, trucks and aftermarket） |
LT789B size（suitable for mini truck, truck, big minibus and aftermarket） |
||||
NOM SIZE |
INSIDE DIAMETER (mm) |
OUTSIDE DIAMETER （mm） |
NOM SIZE |
INSIDE DIAMETER (mm) |
OUTSIDE DIAMETER （mm） |
8.0 |
Φ8±0.3 |
Φ15.2±0.4 |
5/16 |
Φ8.2±0.4 |
Φ19.0±0.5 |
11.2 |
Φ11.2±0.3 |
Φ18.4±0.4 |
13/32 |
Φ10.5±0.4 |
Φ23.0±0.8 |
13.0 |
Φ13.0±0.3 |
Φ21.0±0.4 |
1/2A |
Φ13.0±0.5 |
Φ25.4±0.8 |
15.2A |
Φ15.2±0.4 |
Φ24.5±0.5 |
1/2B |
Φ13.0±0.5 |
Φ23.0±0.8 |
15.2B |
Φ15.2±0.4 |
Φ23±0.5 |
1/2C |
Φ13.0±0.5 |
Φ22.4±0.8 |
5/8 |
Φ16.1±0.5 |
Φ28.6±0.8 |
|||
LT789C size（Suitable for car and after sales market） |
LT789D size（suitable for large minibus and aftermarket） |
||||
NOM SIZE |
INSIDE DIAMETER （mm） |
OUTSIDE DIAMETER （mm） |
NOM SIZE |
INSIDE DIAMETER （mm） |
OUTSIDE DIAMETER （mm） |
5/16 |
Φ8.2±0.4 |
Φ14.7±0.5 |
3/4 |
Φ19.4±0.5 |
Φ28.4±0.5 |
13/32 |
Φ10.5±0.4 |
Φ17.3±0.5 |
7/8 |
Φ22.7±0.5 |
Φ32.8±0.5 |
1/2 |
Φ13.0±0.5 |
Φ19.4±0.5 |
9/8 |
Φ29.0±0.5 |
Φ40.2±0.5 |
5/8 |
Φ16.1±0.5 |
Φ23.6±0.5 |
|||
Dongguan Rener specializes in all kinds of hydraulic hoses and flexible hose assembly solution. Our main products: Food Grade Hose, Water Steam Hose, Oil Suction Hose, high pressure rubber hose, Industrial Hose, etc. If you have interested in our High Pressure Hydraulic Hose, please feel free to contact us.
