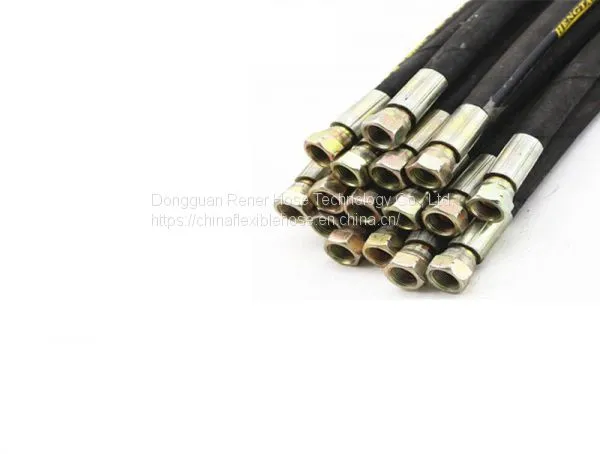

Help CenterMining Heavy-Calibre Wire Braided Hydraulic Rubber Hose
Related Products
-
SAE 100R4 Hydraulic Suction Rubber HoseUS$ 1 - 2MOQ: 10 Meters -
5000 Super Artery Wire Braid Hydraulic Rubber HoseUS$ 1 - 2MOQ: 10 Meters
-
6000 3C Super Artery Braid And Spiral Artery Wire Spiral Hydraulic Rubber HoseUS$ 1 - 2MOQ: 10 Meters
-
Mining Heavy-Calibre Wire Spiral Hydraulic Rubber HoseUS$ 1 - 2MOQ: 10 Meters
-
Super High Temperature Heat Oil Resisting Wire Braided Rubber HoseUS$ 1 - 2MOQ: 10 Meters
Wire Braid Hydraulic Rubber Hose, Mining Heavy Calibre Hose, Fiber Hydraulic Rubber Hose Supplier.
MEDIA: Tube: Inner tube of oil resistant synthetic rubber
W.P.(MAX):Reinforcement：One or two steel wire braids reinforcement
TEMP.MIN~MAX: Cover: Oil and weather resistant synthetic rubber cover
INNER LAYER: Working Pressure:7Mpa(Max)
INSERT: Temperature Range: -40℃~+100℃（-40°F~+212°F）
OUTER LAYER: Implementation standards：MT98
Oil, heat and aging resistant, high compression resistance
It is a hydraulic tube with large diameter for special exploitation and production of coal mine by Letone, the Maximum caliber up to 104.5mm.This section covers hose for use petroleum base hydraulic fluids and the inner tube of oil resistant synthetic rubber, one or two steel wire braids reinforcement and oil and weather resistant rubber cover.
Parameter:
MT98-Large Size Wire Braid Hydraulic Rubber Hose Specifications:
SIZE |
SIZE |
internal diameter I .D |
outside diameters O.D |
Working pressure Max .W.P |
burst pressure Min. B.P |
Bending radius Min. B.R |
|
DN |
Inches |
I .D (mm) |
O.D(mm) |
Max. W.P |
Min. B.P |
Min. B.R |
|
Min |
Max |
Max |
(Mpa) |
(Mpa) |
(mm) |
||
64 |
2-1/2-1 |
63.5 |
65.3 |
80.0 |
3.5 |
10.5 |
800 |
76 |
3"-1 |
75.5 |
77.5 |
92.0 |
3 |
9 |
920 |
86 |
3-3/8-1 |
84.5 |
86.7 |
101.0 |
2.5 |
7.5 |
1000 |
89 |
3-1/2-1 |
88.4 |
90.0 |
106.0 |
2.5 |
7.5 |
1100 |
101 |
4"-1 |
101.0 |
104.5 |
121.0 |
2 |
6 |
1300 |
64 |
2-1/2-2 |
63.5 |
65.3 |
80.0 |
7 |
21 |
800 |
76 |
3"-2 |
75.5 |
77.5 |
94.0 |
6 |
18 |
920 |
86 |
3-3/8-2 |
84.5 |
86.7 |
103.0 |
5 |
15 |
1000 |
89 |
3-1/2-2 |
88.4 |
90.0 |
108.0 |
5 |
15 |
1100 |
102 |
4"-2 |
101 |
104.5 |
123 |
4 |
12 |
1300 |
Dongguan Rener specializes in all all kinds of hydraulic hoses and flexible hose assembly solution. Our main products: high pressure rubber hose, Industrial Hose, etc. If you have interested in our High Pressure Hydraulic Hose, please feel free to contact us
