Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > LG Vertical Screw Pump Glue Pump Pulp Pump Juice Pump

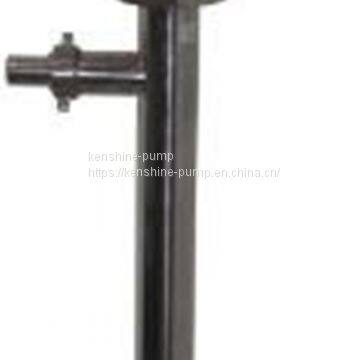

LG Vertical Screw Pump Glue Pump Pulp Pump Juice Pump
US$ 1200 - 6000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
LG30-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
FG,G Single Screw Pump Single Stage Double Stage Three Stage and Four StageUS$ 950 - 10000MOQ: 1 Set -
FG Stainless Steel Single Screw PumpUS$ 500 - 6000MOQ: 1 Set
-
ZB3A Stainless Steel Lobe Rotor PumpUS$ 300 - 10000MOQ: 1 Set
-
RGB Peristaltic Pump Hose Pump Slurry Pump Food PumpUS$ 600 - 10000MOQ: 1 Set
-
G Single Screw Pump Slurry PumpUS$ 300 - 6000MOQ: 1 Set
Brand Name
kenshine-pump
Place of Origin
China
Model Number
LG30-1
Application
Other, high viscosity transfer
Fuel
Other, electric motor
Power
Electric
Usage
Other, high viscosity fluids
Theory
Rotary Pump
Standard or Nonstandard
Standard
Structure
Screw Pump
Pressure
Low Pressure
LG Vertical screw pump can be directly inserted into the tank to transfer high viscosity fluids and good self priming performance.
LG Vertical screw pump can be specially made of cast iron or stainless steel (SS304,SS316,SS316L etc) with high temperature resistant type, heat preservation type and water cooling type etc
Caliber:25 to 150mm
Flow rate:0-150m3/h
Head:0-240m
| Model | Flow | Pressure | Speed | motor | NPSHr | inlet | outlet | Grain Dia. | Fiber Length |
| m3/h | MPA | （r/min） | （kw） | （m） | （mm） | （mm） | （mm） | （mm） | |
| LG10-1 | 0.1 | 0.8 | 960 | 0.55 | 3.6 | 25 | 25 | 0.8 | 15 |
| LG10-2 | 1.6 | 0.55 | |||||||
| LG13-1 | 0.4 | 0.6 | 960 | 0.55 | 3.6 | 25 | 25 | 0.8 | 15 |
| LG13-2 | 1.2 | 0.55 | |||||||
| LG15-1 | 0.8 | 0.6 | 960 | 0.55 | 3.6 | 25 | 25 | 1 | 20 |
| LG15-2 | 1.2 | 0.75 | |||||||
| LG20-1 | 1.2 | 0.6 | 960 | 0.75 | 4 | 25 | 25 | 1.5 | 25 |
| LG20-2 | 1.2 | 1.5 | |||||||
| LG25-1 | 2 | 0.6 | 960 | 1.5 | 40 | 32 | 2 | 30 | |
| LG25-2 | 1.2 | 2.2 | |||||||
| LG30-1 | 5 | 0.6 | 960 | 2.2 | 50 | 40 | 2.5 | 35 | |
| LG30-2 | 1.2 | 3 | |||||||
| LG35-1 | 8 | 0.6 | 960 | 3 | 65 | 50 | 3 | 40 | |
| LG35-2 | 1.2 | 4 | |||||||
| LG40-1 | 12 | 0.6 | 960 | 4 | 80 | 65 | 3.8 | 45 | |
| LG40-2 | 1.2 | 5.5 | |||||||
| LG50-1 | 20 | 0.6 | 960 | 5.5 | 4.5 | 100 | 80 | 5 | 50 |
| LG50-2 | 1.2 | 7.5 | |||||||
| LG60-1 | 30 | 0.6 | 960 | 11 | 5 | 125 | 100 | 6 | 60 |
| LG60-2 | 1.2 | 15 | |||||||
| LG70-1 | 45 | 0.6 | 720 | 11 | 150 | 125 | 8 | 70 | |
| LG70-2 | 1.2 | 18.5 | |||||||
| LG85-1 | 65 | 0.6 | 630 | 15 | 150 | 150 | 10 | 80 | |
| LG85-2 | 1.2 | 30 |
