4 port 100M good quality embedded ethernet switch module
Model:YN-S10401
Product Description:

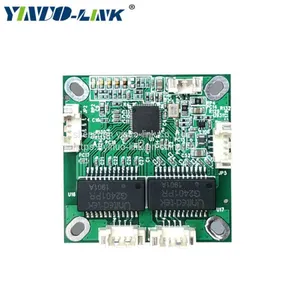

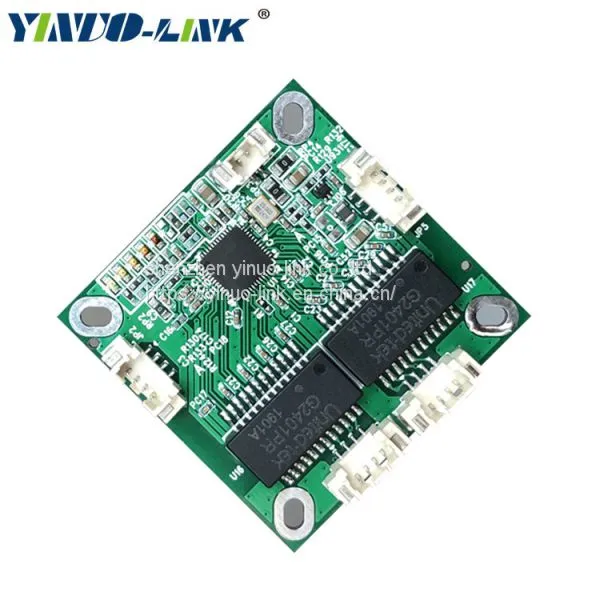

YN-S10401 is a four port mini unmanaged Ethernet switch core module that provides four 10/100M adaptive Ethernet ports. The 38X38 mini design size is easy to install and adapts to different embedded system integrations.
Product Features:
l Comply with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab standards;
l Full-duplex adopts IEEE 802.3x standard, half-duplex adopts Backpressure standard;
l 4 10/100M adaptive pin network ports, support port auto flip(Auto MDI/MDIX)
l Each port supports auto-negotiation and automatically adjusts the transmission mode and transmission rate;
l Support MAC address self-learning;
l Support full speed forwarding communication without blocking;

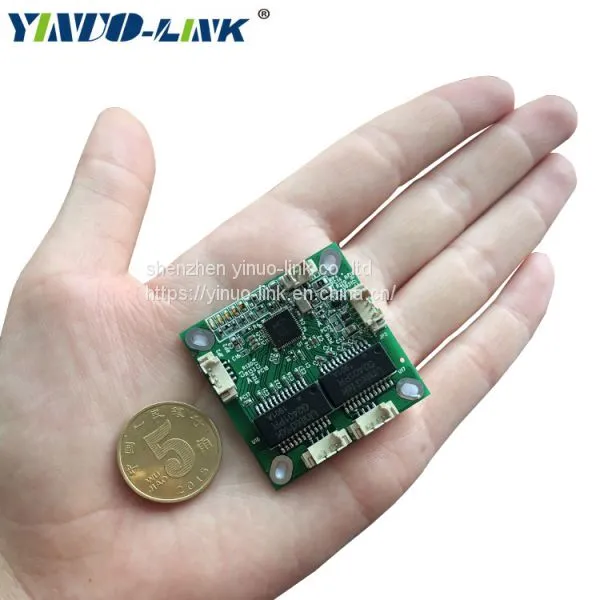

l Mini size design, 38X38MM (length X width);
l Dynamic LED indicator to provide simple working status prompts and troubleshooting;
l Power supply supports 9-12V input;
Product Specifications:
Protocol |
Standard:IEEE802.3,IEEE802.3u,IEEE802.3x Flow control:IEEE802.3x.Back Pressure |
Interface |
100M network port: 10Base-T/100Base-TX adaptive |
Transmission distance |
Twisted pair: 100M (standard CAT5/CAT5e cable) |
Indicator light |
Interface indicator:1-4(LINK/ACT) Power Indicator: PWR |
Exchange attribute |
100 Mbps forwarding speed:148810pps Transmission method: store and forward System exchange broadband: 1.0G Cache size: 1.0G MAC address: 1K |
Power supply |
Input voltage: 12VDC (9~12VDC) Input method: Pin type 2P terminal block, spacing 1.25MM |
Consumption |
No load: 0.9W@12VDC Load: 2W@VDC |
Working environment |
Working temperature: -5~+55°C Storage temperature: -40~+85°C Humidity: 10%~95% (no condensation) |
Product structure |
Weight: 12g Size: 38 mm × 38 mm × 7 mm (length X width X height) |
Packing list |
1* 4 port Switch core module |
Warranty |
2 years |
Product Application :
This product is an embedded integrated module for conference room systems, education systems, security systems, industrial computers, robots, gateways, and so on.
