STM32F407VGT6 core board, with the Ethernet function, I/O full etraction 100mil
Ethernet PHY:DP83848
ADSL RJ45:HR911105A
LWIP ST eample of all pass through.
MNUSB , Need to buy another, you need to please contact customer service.
Description:
STM32-ETH-47V/UET core The board is based on the ST chip STM32F407VGT6. All the GPIOS are lead out by 2.54mm pitch. The Ethernet interface and testing provided. program is
The JTAG interface you With can use debugger STLINKIII or JLINKV8 to Your programe. test
Features:
- STM32F407VGT6 MCU: (100pin)
- Work at up to 168M Core frequency
- Flash and 192+4KB RAM 1MB
- 210DMIPS, 17 TIMs, Ethernet
- 1 Key Reset
- 1 Key Boot0
- 1 Led Power
- 1 Led User
- 1 power interface USB
- Debug port JTAG
- 802.3-2002 compliant Ethernet connector IEEE
- Regulator 3.3V
brief introduction:
STM32-ETH-47V/UETCore board useSTchipSTM32F407VGT6. AllGPIOCan pass2.54mmStandard double needle spacing by etraction. Provide Ethernet program and core board flash program. Factory for Ethernet program.
User can useSTLINKThe simulation level orJLINKSimulator throughJTAGPort simulation download.
characteristic:
- STM32F407VG6 MCU: (100foot)
- Maimum operating frequency:168M
- Flash and 192+4KB RAM 1MB
- Board25MCrystal oscillator
- TD, RD, GNDPad
- A reset key
- ABoot0key
- A power indicator
- A user indicating lamp
- AUSBPower interface
- JTAGDebug port
- 3.3VVoltage stabilizing circuit
- EthernetPHY: DP83848
- RJ45Interface
- EthernetRMIIWork way
Order numberSTM32-ETH-47V/UET

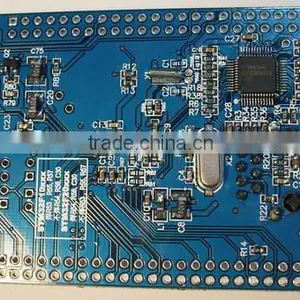

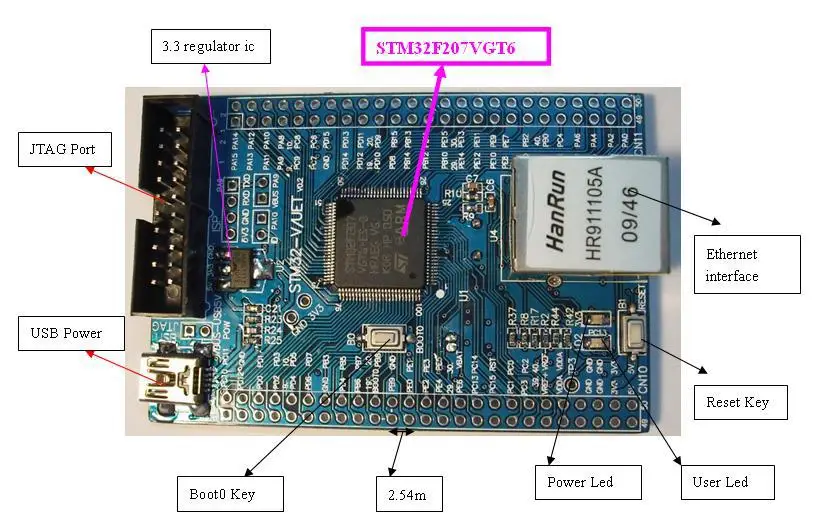

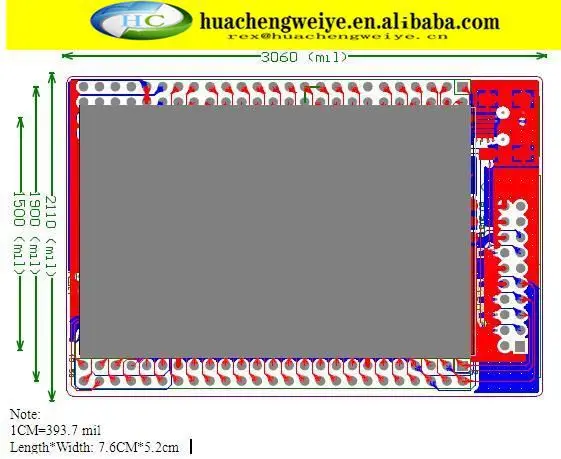

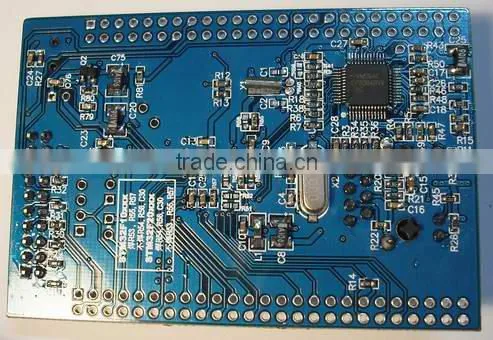

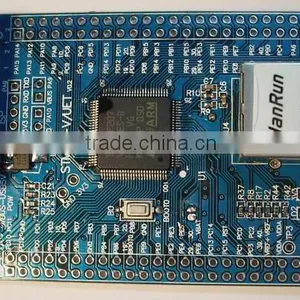

The following picture is for reference only:
