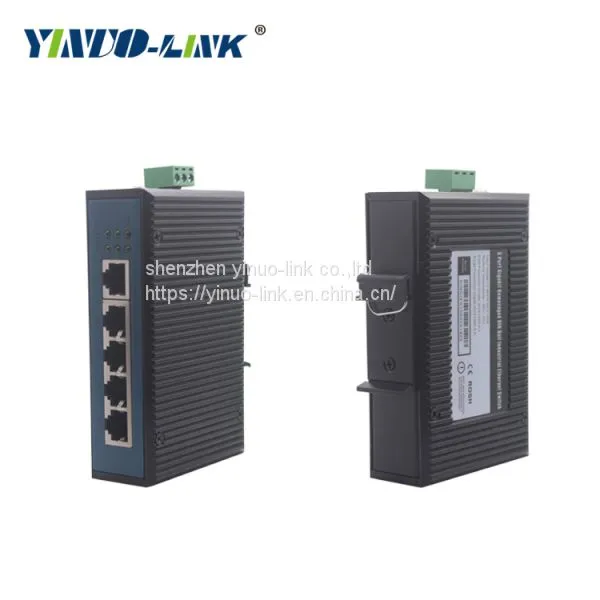

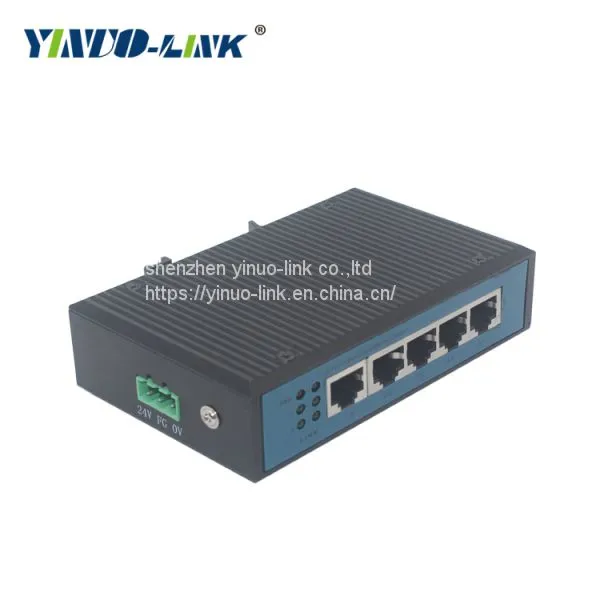

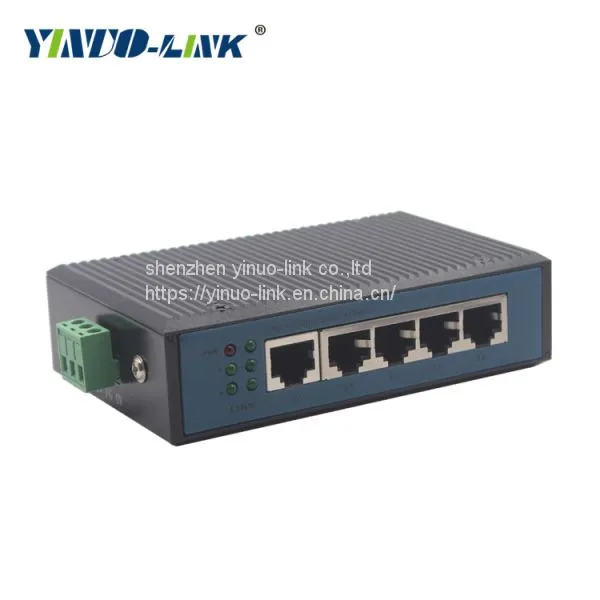

yinuolink DIN rail industrial gigabit ethernet switch with 5 years warranty
Description
YN-IES10503 is a type of unmanaged industrial Ethernet switch with 5 port 10/100/1000Base-T(X ) Ethernet port , supports IEEE802.3, EEE802.3u standard, support positive and negative DC input protection to prevent burnout. With no fan and low power consumption design, IP40 grade protection ensures reliable work in harsh environment. LED indicator is helpful to monitor the status of network connection. DIN rail installation and wide operating temperature (-40~+75℃),it fulfil the industrial working environment, can provide reliable and quickly solution for your Ethernet device.
Specification
Exchange Attribute |
100M forward speed: 148810pps 1000M forward speed: 1488100pps 100M maximum filter speed: 148810pps 1000M maximum filter speed: 1488100pps Transmit mode: store and forward System exchange bandwidth: 10G MAC address table: 8K Memory:1M |
Interface |
Ethernet port: 10Base-T/100Base-TX/1000Base-Tx,flow control, Half/full duplex and MDI/MDI-X self-adaption, |
Transmission Distance |
Twisted cable: 100M (standard CAT5/CAT5e cable) |
LED Indicator |
Run indicator: Run , Interface indicator: Link (1~5) Power supply indicator: PWR |
Power Supply |
Input Voltage: 24VDC (12~48VDC) Type of input: 3P/5.08mm plugged connector Support over-current protection Support power input without polarity,prevent reverse connection protection |
Consumption |
No-load consumption: 0.48W@24VDC Full-load consumption: 1.2W@24VDC |
Working Environment |
Working temperature: -40~75℃ Storage temperature: -40~85℃ Relative Humidity: 10%~95 %( non-condensing) |
Mechanical Structure |
Shell: IP40 protection grade, metal shell Installation: DIN rail mounted Weight: 400g Size: 118mm×75mm×33mm |
Industry Standard |
EMI: FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2 (ESD), Leve 4 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 4 EN61000-4-5 (Surge), Level 4 EN61000-4-6 (CS), Level 3 EN61000-4-8, Level 5 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
Packaging List |
1*Industrial Ethernet Switch 1*User Manual 1*Warranty Card 1*DIN Rail Holder & 3* Screws |
Advantages
1. Adopt 5 ports industrial grade imported chips
2. PCB using TG180 imported PCB material,Immersion gold craft and antioxidant ability will be good
3. Crystal use Japanese Kyocera brand, support -40~+125°C
4. Ethernet port is gold-plated 1.5U, it’s also very stable with many time plugs
5. DC to DC power IC using imported MPS, maximum support 12-48V
6. Capacitors all made by Murata Japan
Features
1. Support 5 port 10Base-T/100Base-TX/1000Base-TX Ethernet
2. Support IEEE802.3/802.3u store and forward
3. Support Ethernet 10/100M self-adaption
4. 12~48VDC wide voltage power supply input
5. No fan, low consumption design
6. IP40 protection, high strength metal shell, DIN rail mounted
7. -40~75℃ working temperature
8. Support MAC address self-learning
If you need 10/100Mbps, please click here
