Multi Power WTEM Transient Electromagnetic Survey System
Product Details
This TEM system has the advantages of similar TEM systems at home and abroad. It has the advantages of high transmitting power, fast shutdown, high reliability, super anti-interference ability, lightweight and low power consumption.
Main Application
1. Configuration is selectable for different geological problems, such as quick survey, stereo mapping, deep mine finding and shallow detection.
2. It is mainly used for metal mine, coal mine, oil and gas field, geothermic field, and hydrological & engineering geology survey.
Technical Parameters

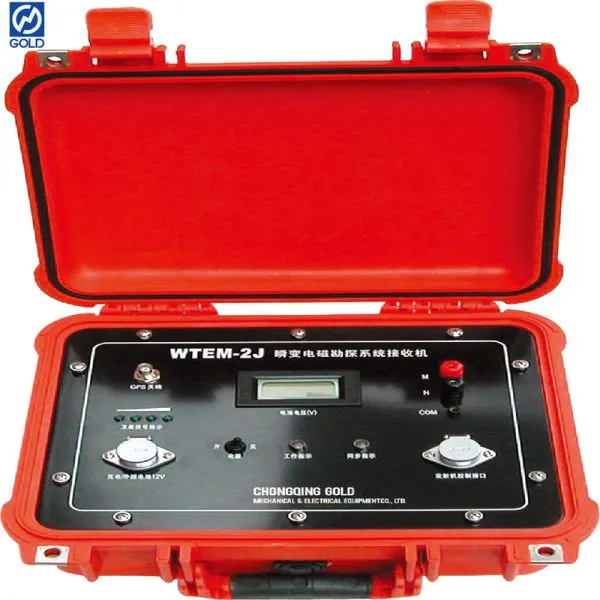

WTEM-2J/GPS TEM Exploration System Receiver
Channel number |
1 |
Main amplifier gain |
1,2,4,8,16,32,64,128 times |
| Band pass | 0~50kHz(liner phased filter), full band 0~400kHz |
| The minimum sample interval | 1μs |
| Crystal oscillation total error | ≤5×10-9 |
| Trace number | 50 |
| Stack number | 1~9999 |
| Synchronization mode | (1)Cable synchronization (2) GPS synchronization |
| Power supply | Built-in 12V rechargeable battery(support outside power), working time>10 hours |
| Working temperature | -10℃~+50℃ |

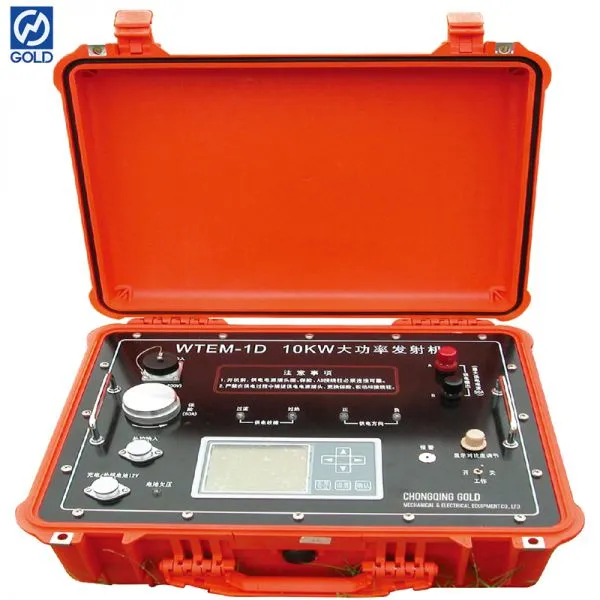

WTEM-1D 10KW Large Power Transmitter
Transmitting voltage |
200V |
Transmitting current |
50A |
Current measurement precision |
1% |
Power supply frequencies |
0.0625Hz,0.125Hz,0.25Hz,0.5Hz,1Hz,2Hz,4Hz,8Hz,16Hz,32Hz |
| Working temperature | -10℃~+50℃ |
| Transmitting power voltage display | Liquid crystal display unit V, display resolution 0.1V |
Packaging
Packaging in accordance with national export standards, packaging methods and materials can be selected according to customer needs.
Services
Gold provides strong service support for pre-sale, in-sale work of customers, In addition, it will provide according to your actual requirements, the most suitable equipment and technical proposal for you as well as complete technology consulting, training and guidance in equipment installation, debugging and maintenance to solve customers’ problem during the process of instrument usage.
Don't be hesitate to contact with us!
