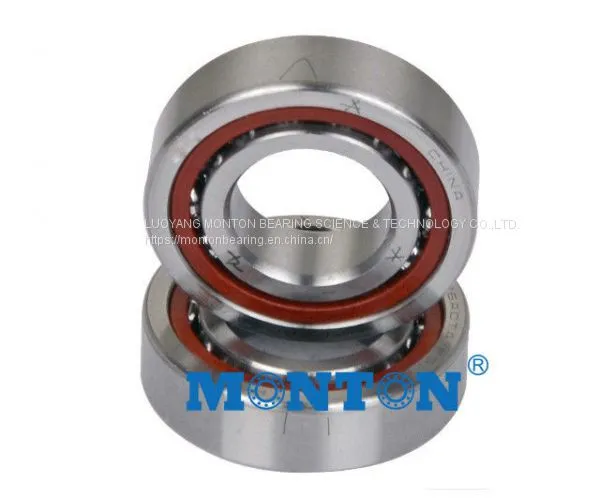

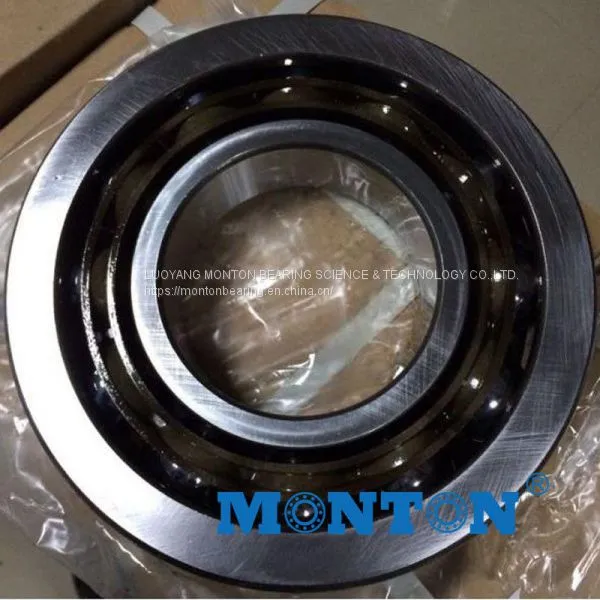

Brass Cage 7315 BECBM
Single Row Angular Contact Ball Bearing
ceramic precision spindle bearings factory
1. Structure: angular contact ball bearings
2. Brand Name: Monton
3. Bore Size: 90mm
4. Outside Diameter: 115mm
5. Model Number: 71818CAP4DBB
6. Precision Rating: ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4
7. Number of Row: Single row
8. Place of Origin: Japan
9. Width: 12mm
10. Net weight: 0.027KG
11. Material: GCr15 Stainless steel and so on
12. Type: ball bearing
13. Clearance: C0,C1,C2,C3,C4,C5 etc.
14. Vibration: V1,V2,V3
15. Service: OEM Service & Good Service
16. Sample available: Yes
17. Manufacturer: Yes
Angular contact ball bearingsare withhigh speed limit,can support radial load and axial load,can also be subject to
pure axial load,theaxial load capacity determined by the contact angle, with the contact angleincrease,the capacity increases,too.
Single row angular contact ball bearingsonlycan withstand axial load in one direction,when burdenthe radial load, will cause
additional axial force,and it mustbe applied to the corresponding reverse load,sothe types of bearings are generally used in pairs.
Double row angular contact ball bearings can withstand greater radial load,mainly consisting of radial and axial combined load
and torque load, it limits bi-axial displacement of shaft or housing, the contact angleis30 degrees.
