Description Wholesale water pressure calibration hand pump

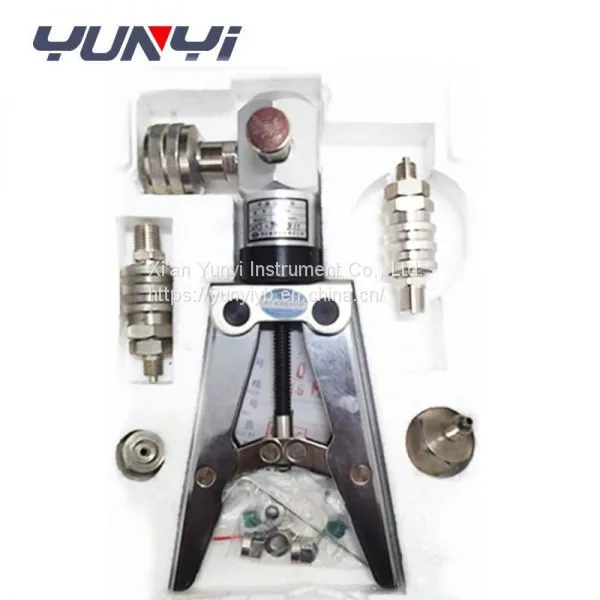

Hand-Held Pressure calibrator pumps is a portable pressure pump.For field installation of instrument calibration in the industrial process and control of indoor use all kinds of pressure gauges.Can also provide pressure source correction table for pressure measuring instrument manufacturer.All kinds of pressure transmitter within every 60 M pa,Pressure sensor and all kinds of pressure gauges Check all available hand pressure pump.
Detailed Images Wholesale water pressure calibration hand pump
Specification Wholesale water pressure calibration hand pump
Output pressure:0~60Mpa
Work environment:
Temperature::0~40℃b Relative humidity≤100%
Weight:≤0.8Kg
Table joint thread: M14 x 1.5 internal thread (exports by 1/4 NPT), high pressure hose joint thread: M20 x 1.5 internal thread (exports by 1/2 NPT)
Features Wholesale water pressure calibration hand pump
1.Portable, light weight,,Suppression of light.Easy to use Structural design pressure fine-tuning hand,Rotate the fine-tuning hand can easily change the output pressure.Also comes with a high-pressure hose connection is timing
,Meter connector connect pressure gauge .
2.Hand pressure pump is the handle, the piston rod. Through gas, pump cover, put the oil hand, fine-tuning hand, form joint, etc .rotation.
Selection Guide Wholesale water pressure calibration hand pump
| Model number | Range | Medium |
| Y039 | 0-1.6Mpa | barometric pressure |
| Y061 | -0.1-0Mpa | barometric pressure |
| Y060 | 0-25Mpa | Hydraulic pressure |
| YFP-1.6 | -0.1-1.6Mpa | barometric pressure |
| YFP-2.0 | -0.1-2.0Mpa | barometric pressure |
| YFP-2.5 | -0.1-2.5Mpa | barometric pressure |
| XYSB60 | 0-60Mpa | Hydraulic pressure |
