DC Aging Power supply

Product Features of [DC Aging Power supply]

1. Adjustable voltage-stabilizing constant-current DC power supply;

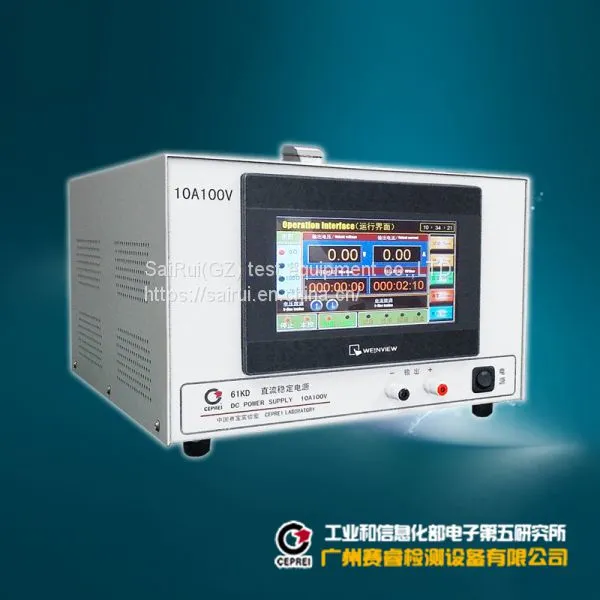

2.7inch color touch screen (MT6070I) to display and set the parameters;

3. Atmel high-performance 8-bit AVR single-chip microcomputer (ATmega32A) is used to control;

4. programming the output voltage to rise and down;

5. High conversion efficiency, light weight;

6. High output power;

7. The continuous working time is long (at least 1000h), and the time drift is low (about 0.5%);

8. Support U disk history data copy, test run plot printing function (optional);

9. Non-standard customization can be made according to the customer's needs.

Introduction of [DC aging power supply]

61KD series DC-stabilized power supply is a voltage-stabilized and current-stabilized switching power supply. It adopts advanced high-frequency pulse width modulation (PWM) technology and adjusts the pulse width of the conversion circuit to achieve voltage stabilization and current stabilization. This power supply has high stability, low ripple voltage, long continuous time, and automatic protection functions such as over-voltage, over-current, overheating, over-temperature, etc., so that the output voltage and current can be kept reliable and stable under any circumstances. The whole system is controlled by Atmel high performance 8-bit AVR single chip microcomputer (ATmega162), which is measured by two-channel A / D conversion module and controlled by two-way D-A conversion module. All the parameters and the working state of the instrument are displayed and set on the 7-inch color touch screen (MT6071I) in Taiwan. All kinds of parameters are cut off and memory, and the user-friendly interface is easy to operate. The power supply also has a network-controlled RJ45 communication interface.

Technical parameters of [DC aging power supply] (non-customizable)

Input characteristics：

1. Input voltage: AC 220V ±10%;

2. Input frequency: 50 Hz plus 10%;

3. Working environment: temperature: 10 ℃ ~ 30 ℃, humidity: ≤ 75% RH;

4. Fuse specification: 20A;

5. Equipment size: about 520 (L) X 320 (W) X 220 (H).

Qualification：

1. Input and output:

(1) input: ac single phase 220V ±10% 50Hz ±10%;

(2) output: DC steady current;

(3) DC output voltage: 0 μ 100V (close to 0);

(4) DC output current: 0? 20A;

2. Precision of voltage stabilization:

(1) Source effect: ≤ 0.2% rating 10 MV;

(2) at the time of bleaching: at least 0.3% of the rated value;

(3) temperature drift: ≤ 0.5 ‰ / ℃ ±2 words (within half an hour);

(4) load effect: ≤ 0.3% rating ±2 words;

3. Steady flow accuracy:

(1) Source effect: ≤ 0.2% rating;

(2) at the time of bleaching: at least 0.3% of the rated value;

(3) temperature drift: ≤ 0.5 ‰ / ℃ ±2 words (within half an hour)

(4) load effect: ≤ 0.3% rating ±2 words;

4. Ripple (r.m.s): ≤ 0.5% rated 10mV (measured at 80%-100% rated output);

5. Efficiency: ≥ 80%;

6. Protection mode: have overvoltage, overcurrent, overheat, lack of phase automatic protection;

7. Alarm mode: when the fault occurs, automatically cut off the power output alarm;

8. Short-circuit protection: No man-made short-circuit is strictly prohibited, and the short-circuit protection can be

9. Constant-voltage and constant-current switching: the voltage-stabilizing and current-stabilizing automatic smooth switching, and the output transformer does not transition at the time of switching;

10. Working mode: 2000h under rated load.

Maintenance and regular maintenance of [DC aging power supply]

Maintenance:

To prevent the occurrence of electric shock, do not lift the cover of the instrument. All parts inside the instrument need not be maintained by the user. If there is an abnormal condition in the instrument, please ask for maintenance from my laboratory. the attached lines and block diagrams are for reference only.

Regular maintenance:

At least once a year, the AC power supply and relevant accessories of input power line shall be carefully checked and checked to protect the safety of the user and the accuracy of the instrument.
