Help CenterBending Tester
Related Products

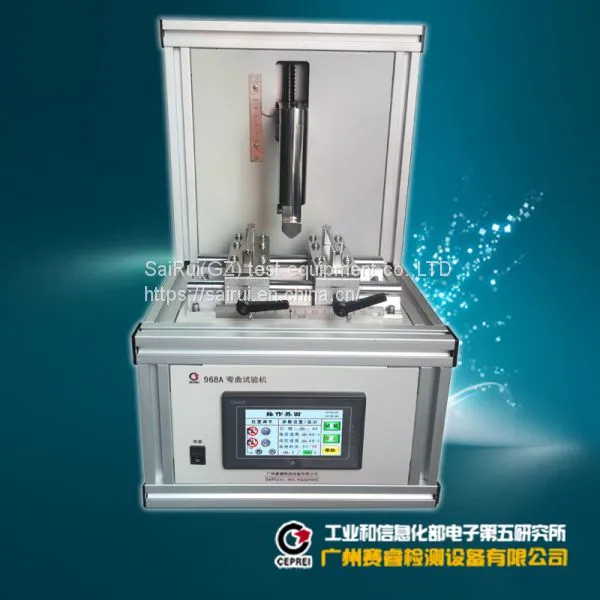

Product characteristics of [bending tester]
1. Mitsubishi PLC control system, color touch screen display and operation;
2. To put pressure on the specimen placed on the tooling to realize the bending action of the specimen;
3. Using power supply AC 220V ±10%, 50Hz / 60Hz, 2A;
4. The tension of the wrench can move or fix the support;
5. Rear panel has equipment power input interface and input specification label.
Brief introduction of [bending testing Machine]
The bending tester is designed and manufactured according to GB/T2423.60-2008 (equivalent to IEC60068-2-21:2006) clause 8.5. The device is a special device for bending test of device substrate. It adopts Mitsubishi PLC control system and controls it through the operation interface of 4.3in color touch screen. Digital test parameters, intelligent man-machine dialogue, make the working state clear at a glance, simple key operation, will learn.
Technical parameters of [bending tester] (not customizable)
Input characteristics：
1. Input voltage: AC 220V ±10%, 50Hz / 60Hz, 2A
2. Temperature: 5 ℃ ~ 30 ℃, humidity: less than 75% RH, dust-free!
3. Power supply capacity: 500W
4. Form Factor: 300 (L) X360 (W) X520 (H) mm
5. Machine weight: 35 kilo
Qualification：
1. Applicable criteria: GB/T2423.60-2008 (equivalent to IEC60068-2-21:2006)
2. Product for: rigid substrate (PCB)
3. Drive mode: stepping motor (rated holding torque 2.2 N.M
4. Speed of action: 1mm/ s table 0.5 mm/s
5. Action stroke: 10mm (adjustable in total stroke 50mm)
6. Number of measurements: 1: 99 s, error ±1 s
7. Test station: 1;
8. Operation interface: PLC operation, color touch screen operation interface
9. Fixture dimensions: implemented according to GB/T2423.60-2008 diagram A7, substrate width within 30mm
Maintenance and regular maintenance of [IC card bending tester]
Maintenance:
In order to prevent electrical shock, please do not lift the lid of the instrument. All parts in this instrument need not be maintained by the user. If the instrument is abnormal, please seek maintenance from our laboratory. The attached circuit and block diagram are for reference only.
Regular maintenance:
The AC power supply, input power cord accessories and so on must be carefully checked and checked at least once a year to protect the safety of the user and the accuracy of the instrument.
For more information about products, please contact us and visit the company.
Address: Tianhui Road, Wisdom City, Tianhe District, Guangzhou
Tel: 86-20-37896688
Fax:86-20-37896699
Mobile phone: 86-13711272581,Miss Liu
