Product characteristics of [High power adjustable load]
1. Special resistive load for power amplifier test;
2. The load is a high-power disk-type adjustable resistor or a non-inductive high-power double-winding resistor;
3. Monitor each load signal voltage output (BNC);
4. Cooling mode: air cooling;
5. It can be customized according to the customer's needs.
Product introduction of [High power adjustable load]

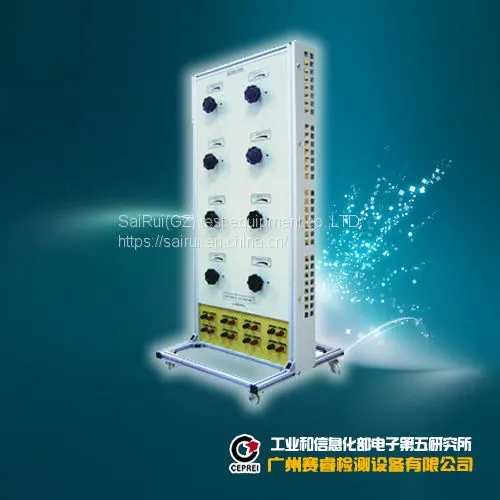

The 805B type power amplifier false load box is a special equipment for power amplifier test. It has eight-way load (0 / 16 Ω, 500W/ path) output.
Technical parameters of [High power adjustable load] (not customizable)
1. Suitable for switching power supply, power amplifier and other products;
2. Eight channels;
3. The resistance value is 0 / 16 Ω, and the power of each channel is 500W;
4. Working power supply: 220V ±10%, 50Hz ±2Hz.
Maintenance and regular maintenance of [High power adjustable load]
Maintenance:
To prevent the occurrence of electric shock, do not lift the cover of the instrument. All parts inside the instrument need not be maintained by the user. If there is an abnormal condition in the instrument, please ask for maintenance from my laboratory. the attached lines and block diagrams are for reference only.
Regular maintenance:
At least once a year, the AC power supply and relevant accessories of input power line shall be carefully checked and checked to protect the safety of the user and the accuracy of the instrument.
