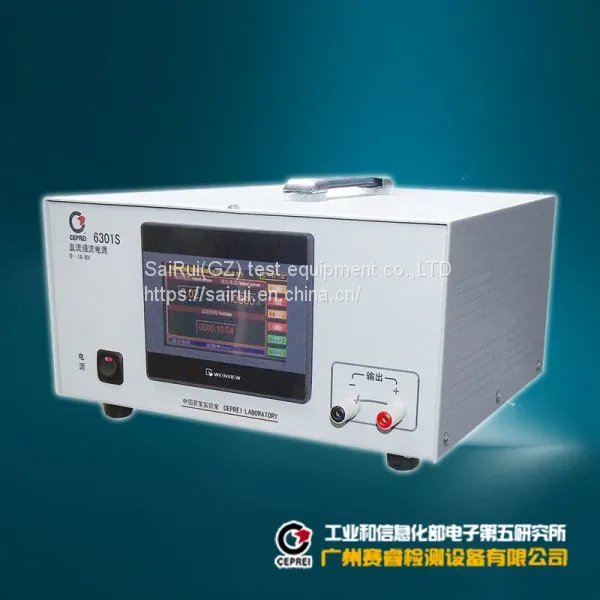

DC constant current Power supply

Product Features of [DC constant current Power supply]

1. Used for aging life test of chip inductors;

2. 4. 5-inch / 7-inch color touch screen (TK6050IP) is used to display and set various parameters;

3. Atmel high-performance 8-bit AVR single chip microcomputer (ATmega32A) control;

4. There are two modes of output (on / off / continuous);

5. Long working time (1 000 h) and low current drift;

6. Can be customized according to customer needs non-standard.

Product introduction of [DC constant current Power supply]

63XD series DC constant current power supply is a kind of special equipment which uses linear series adjustment mode constant current power supply to carry out aging life test of chip inductor. This power supply has high stability, low ripple voltage, long continuous time and automatic protection function such as over-voltage, so that the output current can be kept reliable and stable under any circumstances. The whole system is controlled by a high-performance 8-bit single-chip microcomputer, which is measured by / conversion module and controlled by conversion module, which has high resolution display. All the parameters and the working status of the instrument are displayed and set on the Taiwan Willentong color touch screen, all kinds of parameters power-off memory; Humanization boundary Face, easy to operate. This power supply also has two output modes (on-off / continuous) DC steady current source, which is very suitable for aging life test of research and factory enterprises. The power supply is also equipped with a 45 remote control interface.

Technical parameters of [DC constant current Power supply] (non-customizable)

1. Input voltage: 220 table 10%;

2. Input frequency: 50 / 60;

3. Working environment: temperature:-20 ℃ ~ 40 ℃, humidity: less than 80%.

Maintenance and regular maintenance of [DC constant current Power supply]

Maintenance:

To prevent the occurrence of electric shock, do not lift the cover of the instrument. All parts inside the instrument need not be maintained by the user. If there is an abnormal condition in the instrument, please ask for maintenance from my laboratory. the attached lines and block diagrams are for reference only.

Regular maintenance:

At least once a year, the AC power supply and relevant accessories of input power line shall be carefully checked and checked to protect the safety of the user and the accuracy of the instrument.
