Product characteristics of [Inductive load platform]
1. Suitable for all kinds of electrical accessories, household appliances in the test of the inductive load required;
2. There are two load test modes: resistive load and inductive load;
3, combining a plurality of resistors and an adjustable reactance;
4. The parameters of voltage, current and power factor are displayed by digital meter.
5. Cooling mode: air cooling;
6. With over-current, over-voltage and over-heat protection function;
7. Can be customized according to customer needs non-standard.
Introduction of [ [Inductive load platform]

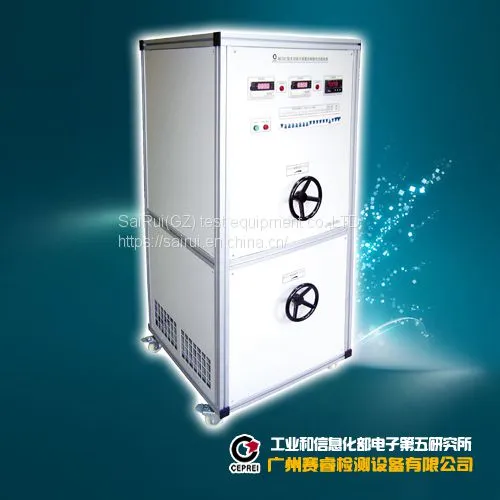

8209B multi-channel AC adjustable load table is suitable for various components and accessories to carry out AC load test. The equipment has nine groups of outputs, and nine groups of outputs can be output in arbitrary parallel, the maximum current is 90A, and the total power is 30KVA. The output current of each channel can be displayed; Over-current, over-voltage and over-heat protection.
Technical parameters of [Inductive load platform] (non-customizable)
1. Load experiment mode: resistive;
2. Output channel: 9 channels, between channels can be used in parallel, output voltage synchronization;
3. Output voltage for each group: AC 0-300V (close to zero);
4. Display resolution: 1V;
5. Voltage display accuracy: ±2% ±2 words;
6. Output resistive load current for each group: AC 0 / 10A; (parallel up to 90A);
7. Display resolution: 0.1 A;
8. The accuracy of digital display current: ±3% ±2 words;
9. Load current regulation mode: adjustable resistance fixed resistance (on and off switch selection);
10. High-power voltage regulator: with external use, its power: 50KVA;
11. Cooling mode: large air volume air cooling;
12. Functional requirements: over-current, over-voltage and over-heat protection;
13. Working power supply: AC220V,10%, 50Hz, 50Hz;
14. Equipment form Factor: approximately 1300mm (L) * 850 mm (W) * 1600 mm (H);
15. Working environment: place of use: indoor use only; temperature:-20 ℃ ~ 40 ℃; Air humidity: ≤ 80%.
Maintenance and regular maintenance of [Inductive load platform]
Maintenance:
To prevent the occurrence of electric shock, do not lift the cover of the instrument. All parts inside the instrument need not be maintained by the user. If there is an abnormal condition in the instrument, please ask for maintenance from my laboratory. the attached lines and block diagrams are for reference only.
Regular maintenance:
At least once a year, the AC power supply and relevant accessories of input power line shall be carefully checked and checked to protect the safety of the user and the accuracy of the instrument.
