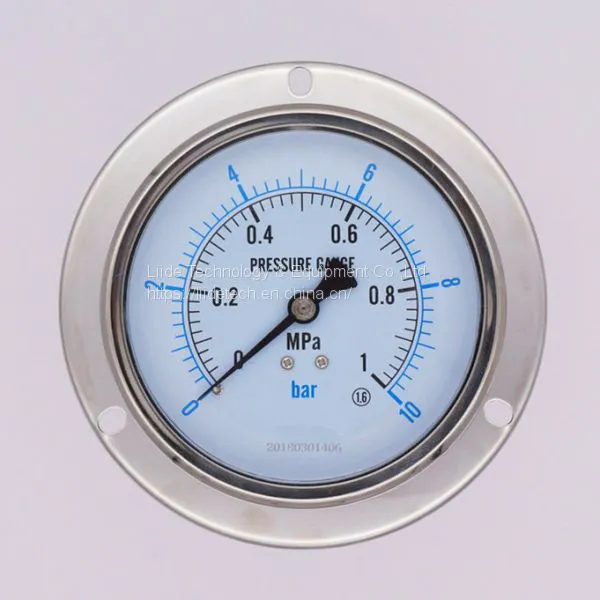

100mm Axial Back Connection All stainless steel dual scale oil filled anti-shock pointer pressure gauge with edge

100mm Axial Back Connection  All stainless steel dual scale oil filled anti-shock pointer pressure gauge with edge YSF100DAE

Liquid filled pressure gauge is filled with damping liquid (general silicone oil or glycerin),and is able to resist environment vibration and reduce medium pressure pulse impact.

Applications:

Pressure gauge is used for measuring pressure or vacuum of liquid, gas, and steam which not corrosive action with the copper and steel and alloy in mechanical, chemical, petroleum, metallurgy, electric power and other industrial production process.

Features:

Pressure:   0-0.1Mpa, 0-2.5Mpa, 0-4Mpa, 0-6Mpa,  0-16Mpa, 0-10Mpa, 0-25Mpa, 0-40Mpa, 0-60Mpa

Accuracy:    1.6%

Material:      All stainless steel

Dial size:    100mm

Connection:  Axial, back

Connector:  M20*1.5, G1/2, G1/4, PT1/4, or as required by customers.

Temp:       -40 to 70°C,

Humidity:    <85%

Price:        Economic

With edge

OEM
