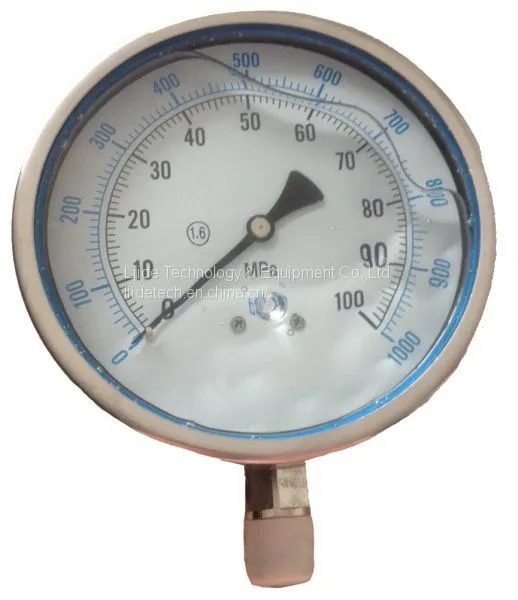

Y40，Y60, Y100
Normal Pointer Pressure Gauge
Applications:
Pressure gauge is used for measuring pressure or vacuum of liquid, gas, and steam which not corrosive action with the copper and steel and alloy in mechanical, chemical, petroleum, metallurgy, electric power and other industrial production process.
Features:
Accuracy: 2.5%, 4%.
Material: Copper Alloy, steel, brass, etc.
Dial size: 40mm, 60mm, 100mm, 150mm, 250mm, etc.
Connection: axial, radial, back, bottom
Connector: M10*1.5, M14*1.5, M20*1.5, or as required by customers.
Temp: -40 to 70°C,
Humidity:
Price: Economic
Others: with clamp, with edge
OEM
Component:
Pressure gauge is mounted with guide pressure system, gear transmission mechanism and shell. Guide pressure system (including joint, spring pipe, current limiting screw, etc.), the gear transmission mechanism, data display device (pointer and dial) and the shell (including watch case, table cover, table glass, etc.)
Connectors:
M10*1, M10*1.5, M14*1.5, M20*1.5, G1/4, NPT1/4, PT1/4, G1/8, NPT1/8, PT1/8, G1/2, NPT1/2, PT1/2, etc.
