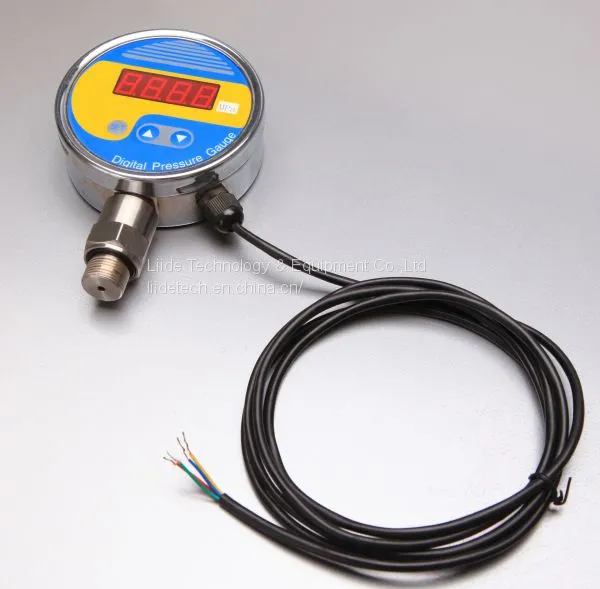

LD197 Digital Pressure Gauge
LD197 digital pressure gauge is a 2 wired digital pressure measure, display and output product. It is assembled with ceramic pressure sensor chip. Strong anti-interference makes it can work in many industrial environment. It can be used as a replacement of pointer pressure gauge.
Specifications
Dial size: |
82mm |
Display: |
4 digit, LED,0.56” |
Output signal: |
4-20mA, 2 wired |
Accuracy: |
0.5%FS , 1%FS |
Pressure range: |
0-20Mpa |
Overload: |
150% |
Power supply: |
12-32VDC |
Stability: |
≤0.2%/year |
Ambient temperature: |
-20~70°C |
Relative humidity: |
≤90% |
Protection |
IP 65 |
Display range: |
-1999~9999 |
Model & Ordering guide
LD197 |
82mm, radial, 12-32VDC |
||||
Accuracy |
5 |
0.5% FS |
|||
10 |
1% FS |
||||
Process connection |
G2 |
G1/2 |
|||
G5 |
G1/4 |
||||
M2 |
M20*1.5 |
||||
Pressure range |
*** |
0-20Mpa |
|||
