LD198 Digital Pressure Gauge

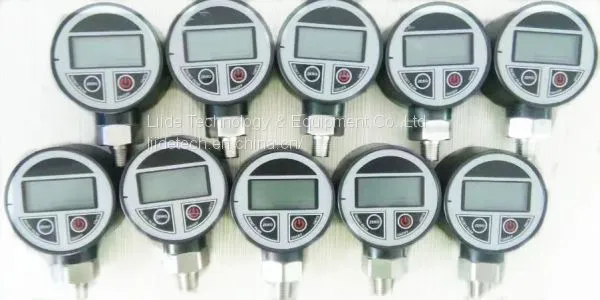

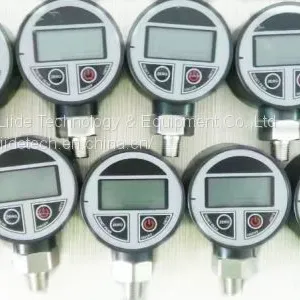

LD198 digital pressure gauge is battery powered pressure gauge used for liquid, gas that compatible with stainless steel . It can be used for portable equipment, no power source site.
Features:
LCD display, high solution ratio, no apparent value error.
Peak holding: it can record the max pressure value in the measuring process.
Percentage Dynamic display
Pressure units: psi, bar, kpa, kg/cm3, Mpa
Auto power-off function: 1~15 mins optional.
Low power consumption: continuous working: 2000 hours. Power save mode: it can work 2 years.
Sample rate: 4times/second.
Specifications
Dial size: |
62mm (LD198), 68mm(LD199E) |
Display: |
LCD |
Display range: |
-1999~9999 |
Accuracy: |
0.2%FS, 0.5%FS |
Pressure range: |
0-100Mpa |
Overload: |
200% |
Power supply: |
Battery, 9 VDC |
Stability: |
≤0.1%/year |
Ambient temperature: |
-20~70°C |
Relative humidity: |
≤80% |
Model & Ordering guide
LD198 |
62mm, radial, battery powered (9VDC) |
||||
Accuracy |
2 |
0.2%FS |
|||
5 |
0.5% FS |
||||
Process connection |
G2 |
G1/2 |
|||
G5 |
G1/4 |
||||
M2 |
M20*1.5 |
||||
XX |
Others such as flange, probe, etc. please specify when enquiry and ordering |
||||
Pressure range |
*** |
0-100Mpa |
|||
