GUF120A-I series Ultrasonic Flow Meter is the new product is designed strictly according to JJG1030-2007 standard to develop the reliability of protect class. Ultrasound transmit time principle makes the measurement range from DN15 to DN6000.

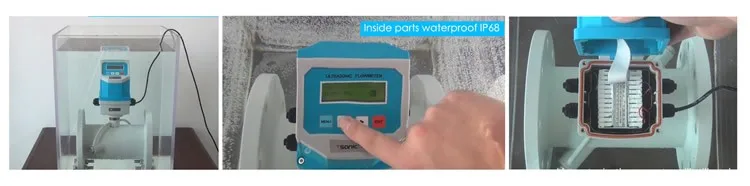

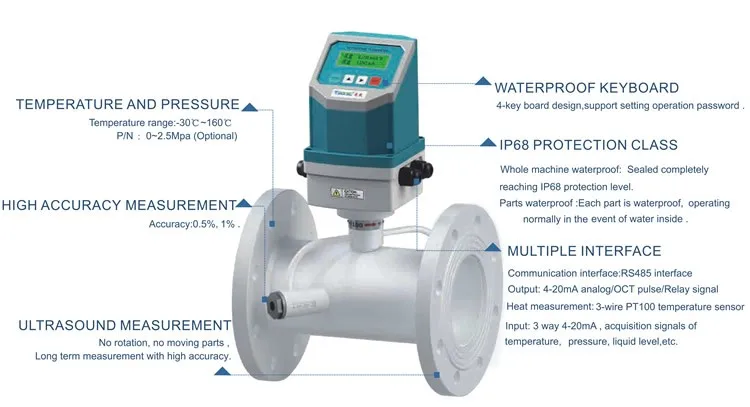

The advantages include high accuracy, strong anti-interference, reliability and stability, multiple interface. Each parts can achieve to IP68,enable the meter work in any severe environment.
Feature
ntegrated Ultrasonic flowmeter consists of (π type + Standard flange type)

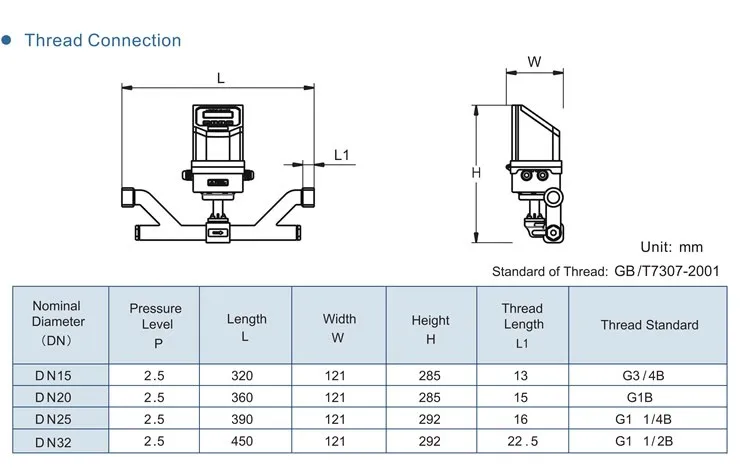

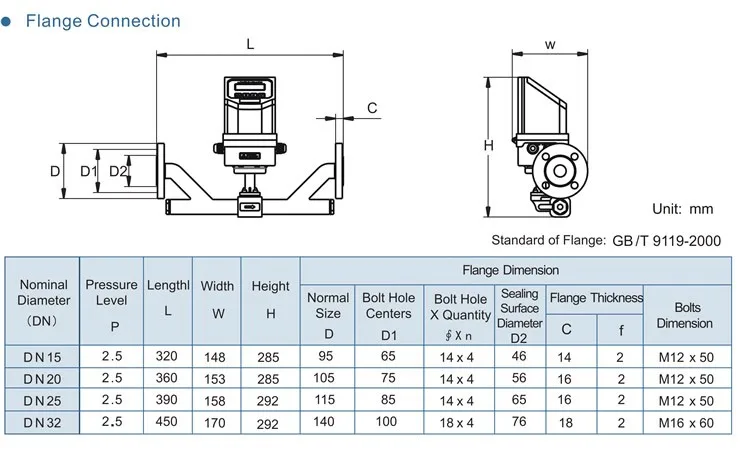

♦ π type inline ultrasonic flow meter(DN15mm-DN32mm)
The measuring range of π type inline ultrasonic flow meter is DN15mm-DN32mm,by flange connection or thread connection.IP68 protection asuring temperature range -30℃-160℃,P/N 0-4.0Mpa,high accurary within ±0.5%

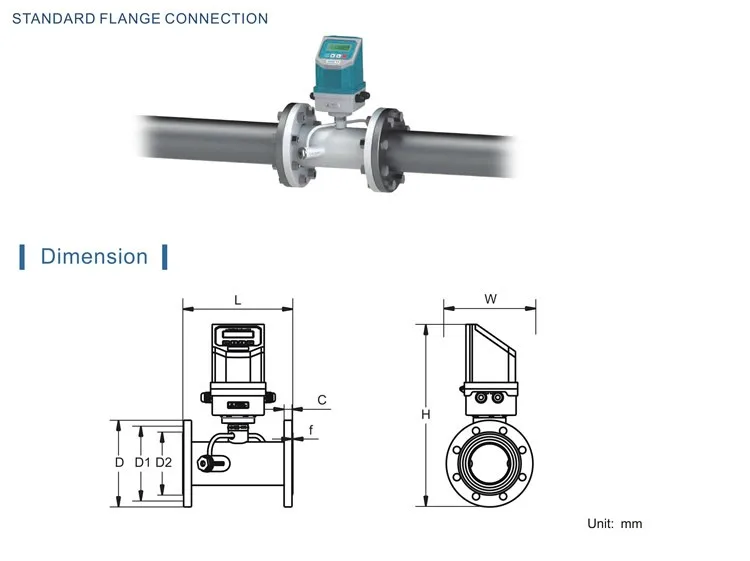

♦ Standard inline ultrasonic flow meter(DN40mm-DN1000mm)
The measuring range of standard inline type ultrasonic flow meter is DN40mm-DN1000mm,with high protection class of IP68,measuring fluid temperature of -30℃-160℃, pressure range of 0-2.5Mpa,high accuracy within ±0.5%
Item |
Principle and parameters |
|
Converter |
Principle |
Transit-time,4 byte floating-point operation in accordance with IEEE754 |
Accuracy |
Inline type:flow meter:±0.5%; heat meter:±1.0% Clamp on type:flow meter:±1.0%; heat meter:±2.0% Insertion type:flow meter:±1.0%; heat meter:±2.0%
|
|
Operation |
4-key manipulation with magnetic bar touch or figer touch; simulation keyboard software |
|
Output |
One way 4-20mA analog output One way OCT pulse signal output One way Relay output |
|
Input |
3 way 4-20mA analog input,accuracy:0.1%; Acquisition signal of temperature,press and liquid level Achieve heat measurement by connecting 3-wired PT100 Temperature sensor |
|
Data interface |
RS485 serial interface,upgraded by computer,support MODBUS communication protocol |
|
Special cable |
Twisted-pair shielded cable and cable length should be no more than 50 m.Transmission distance can achieve 1 km if select the RS 485 interface |
|
pipeline |
Pipe material |
Steel,stainless,copper,cement,PVC,aluminum,glass steel, cast iron |
Pipe diameter |
DN15mm-DN6000mm |
|
Straight pipeline |
Transducers installation points should be:10 diameters’ straight pipeline from upstream transducer ,5 diameters’ straight pipeline from the downstream transducer ;30 diameters’ straight pipeline from the pump |
|
|
Measuring Medium
|
Liquid type |
Single liquid that can conduct sound wave,such as water, Seawater, sewage,plant effluent,chemicals,alcohol,beer,oil etc. |
Fluid temperature |
-30℃-160℃ |
|
Turbidity |
≤10000ppm,with little bubble |
|
Fluid velocity |
0m/s-7m/s |
|
|
Working Environment |
Temperature |
Converter:-20℃-60℃;transducer:-30℃-160℃ |
Humidity |
Both of the converter and transducers can work under water,depth underwater ≤2m(After completely sealing) |
|
Power supply |
DC8-36V;AC85-264V(optional) |
|
Power consumption |
1.5W |
|

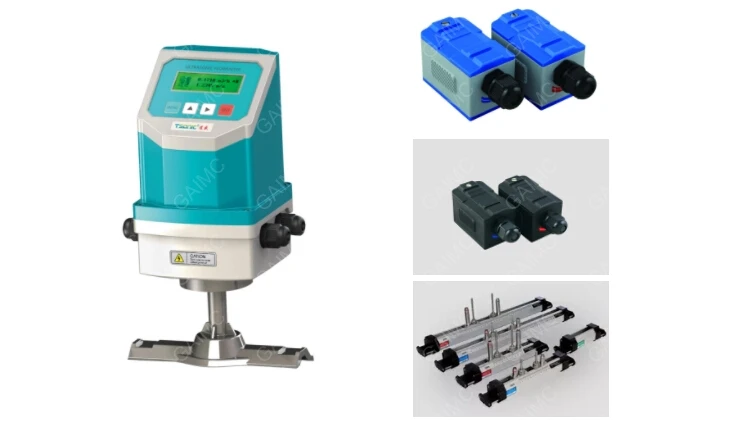

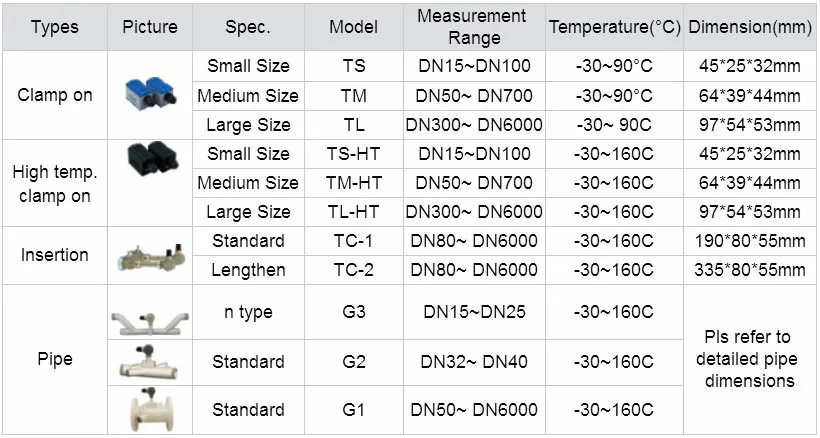

Sensor options
