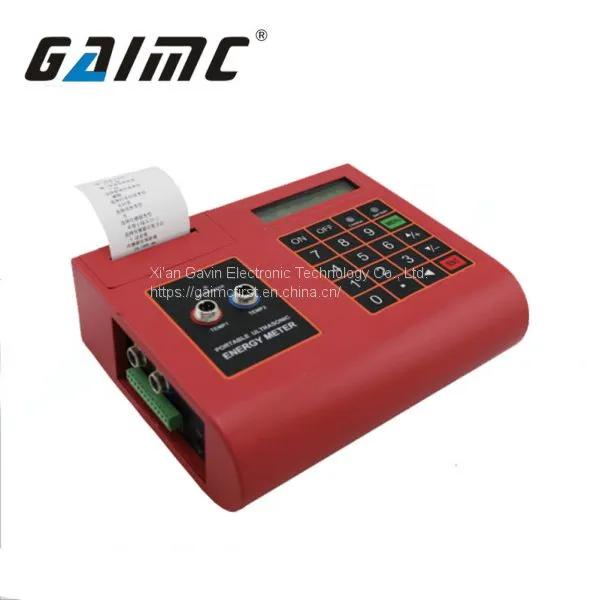

Help CenterGUH130 SD Storage Clamp on Portable Ultrasonic Heat Meter
Related Products
-
GUF120A-W China Wall Mounted Clamp on Pipe Ultrasonic Water Flow Meter PriceUS$ 196 - 345MOQ: 1 Set -
GUF100 Handheld Digital Water Portable Ultrasonic Flow MeterUS$ 324 - 468MOQ: 1 Piece
-
GUF130 Built in Printer Cheap Clamp on Portable Ultrasonic Flowmeter SensorUS$ 440 - 580MOQ: 1 Piece
-
GUF120-M Clamp on Transducer Ultrasonic Underwater Flow Meter TypesUS$ 145 - 290MOQ: 1 Piece
-
GUF120A-I Clamp on IP68 Ultrasonic Water Flow Meter PriceUS$ 209 - 370MOQ: 1 Piece
1.External post installation, cold, heat temporary measurement
2.Tools instruments, easy to use, followed by measurement
3.SD card massive data storage, portable printing functions
4.Applicable to cold and heat measurement site temporary inspection, heat network balance debugging
5.Nondestructive testing of uninstalled on-line metering equipment
Items |
Parameter |
Diameter |
DN32~DN6000 |
Pipe Material |
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed |
Temperature(℃) |
4~160 |
Difference range (K) |
3~70 |
|
Min pairing temperature error(℃) |
±0.1 |
|
Max allowable working pressure(MPa) |
1.6(Outside of scope, please consult customer service staff before ordering) |
|
Accuracy
|
Class 2 |
|
Traffic transducer protection level |
IP67 |
Temperature transducer protection level |
IP68 |
|
Power supply
|
8 built-in Ni-MH batteries 1.2V(for over 20 hours of operation).90V-260VAC adapter |
|
Power consumption
|
1.5W |
|
Working condition
|
Host:-20~60℃;Traffic transducer :-30~160℃ |
Host:85%RH; transducer protection level:IP67 | |
Communication |
RS485 |
Local display |
2×10 character LCD with backlight,2 x 10 character western liquid crystal display,support the language of Chinese, English and Italy |
|
Display resolution
|
Accumulated heat:0.001kGJ;Thermal power:0.0001GJ/h;Temp.:0.001℃;Differential temp.:0.0001℃ |
Max reading |
Net cumulative flow:9999999~9999999m³ |
Net cumulative heat:0~9999999GJ | |
Storage temperature(℃) |
-20~+60 |
Data storage |
Thermal printer,external SD card (2G of capacity) |
Installation location |
Water supply line, backwater line |
Flow measurement chart

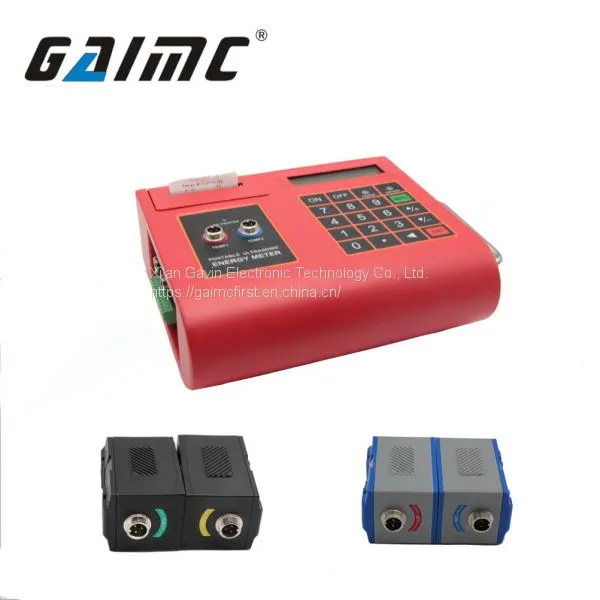

More transducer for you choose
Eg:GUH130-TM-HT-CT-1-5-N
Note:Portable ultrasonic heat meter,High temp.Medium Size flow transducer,Clamp on transducer,cable length 5m*2,non 4-20mA output.
Voice of customer ultrasonic heat meter
