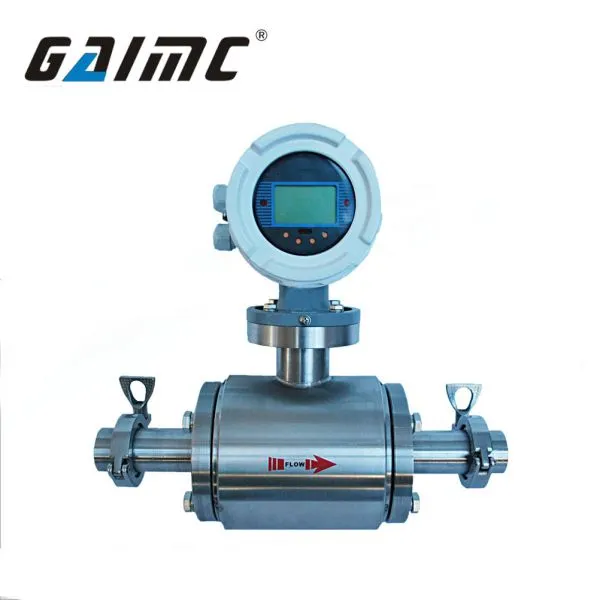

GMF200 Tri-clamp food grade sanitary electromagnetic batch control flow meter

Medium

Food, pharmaceutical industries such as milk, fruit juice, medicine.

Diameter

DN10~DN100mm

Accuracy

±0.5%

Medium temperature

<180℃

Nominal pressure

1.6 MPa

Flow rate

0.3~10m/s

Straight pipe required

Upstream ≥5DN,downstream ≥3DN

Electrode

316L

Lining material

PTFE(F4), Teflon FEP(F46), PFA

Installation way

Clamp on

Body material

SUS304(standard),SUS316(optional)

Power supply

220VAC/24VDC/lithium battery

Signal output

Pulse and 4~20mA

Communication

RS485,GPRS,Hart

Explosion-proof

No

Protection proof

IP65(compact type),IP67,IP68(suitable for remote type)

Work environment

Ambient temperature:-20~+60℃,Ambient humidity:5%~90%
