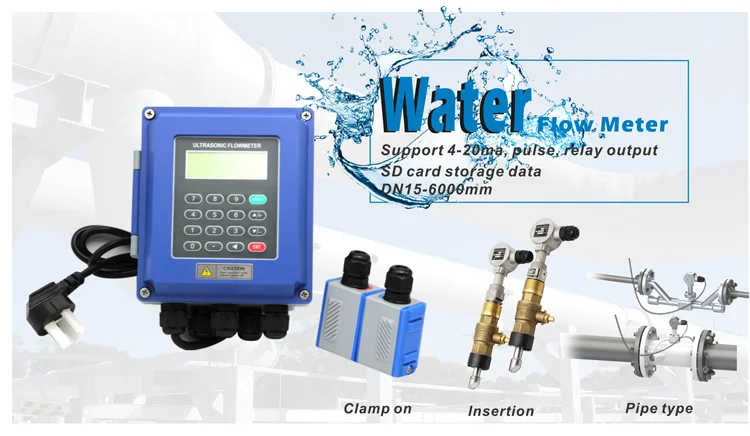

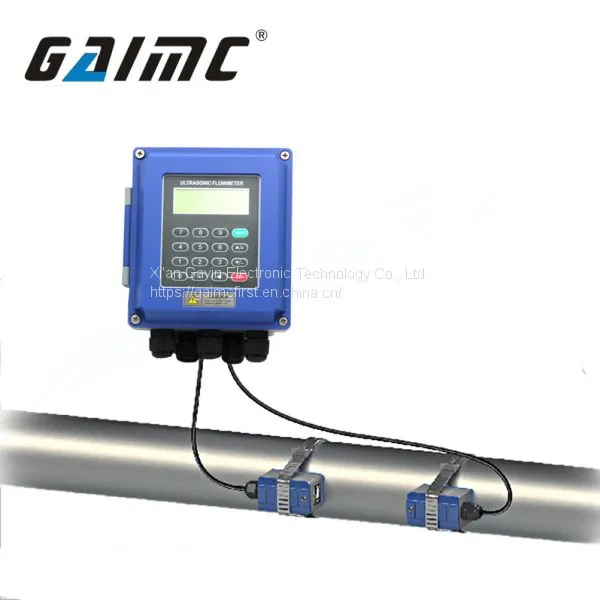

Help CenterGUF120A-W China Wall Mounted Clamp on Pipe Ultrasonic Water Flow Meter Price
Related Products
-
GUF100 Handheld Digital Water Portable Ultrasonic Flow MeterUS$ 324 - 468MOQ: 1 Piece -
GUF130 Built in Printer Cheap Clamp on Portable Ultrasonic Flowmeter SensorUS$ 440 - 580MOQ: 1 Piece
-
GUF120-M Clamp on Transducer Ultrasonic Underwater Flow Meter TypesUS$ 145 - 290MOQ: 1 Piece
-
GUF120A-I Clamp on IP68 Ultrasonic Water Flow Meter PriceUS$ 209 - 370MOQ: 1 Piece
-
GAIMC Transit-time 4-20mA Output Digital Ultrasonic Water Flow Meter Price ListUS$ 196 - 345MOQ: 1 Set
The ultrasonic flowmeter uses the time difference principle of ultrasonic wave propagation in the medium to measure the flow rate.It is mainly used to measure liquid, such as ultra-pure liquid, chemical, raw sewage, reclaimed water, cooling water, river water, plant sewage, etc.

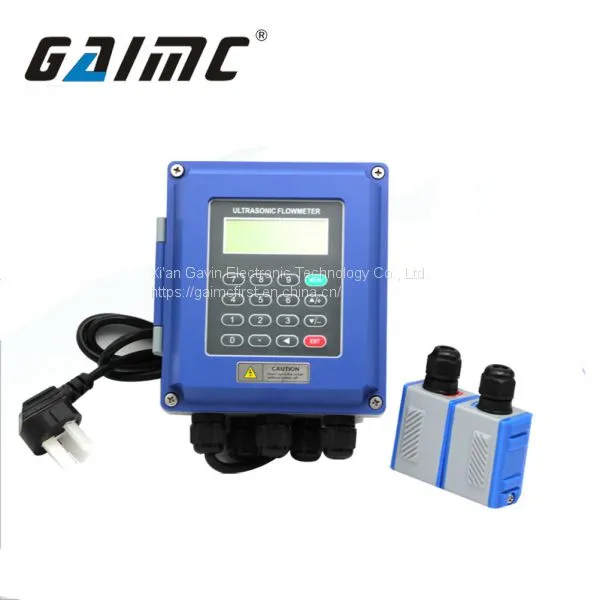

The ultrasonic flowmeter is composed by transmitter and sensors
GUF120A-I ultrasonic flowmeter for on site mounted
GUF120-P ultrasonic flowmeter for panel mounted
GUF120-M ultrasonic flowmeter for din rail mounted
GUF120-E ultrasonic flowmeter for explosion proof conditions.
Items |
Performance & Parameter |
||
|
Host
|
Principle |
Transit- time ultrasonic flowmeter |
|
Accuracy |
±1% |
||
Display |
2X20 character LCD with backlight, support the language of Chinese, English and Italy |
||
|
Signal Output |
1 way 4~20mA output, electric resistance 0~ 1K, accuracy 0. 1%(optional) 1 way OCT pulse output(Pulse width 6~1000ms, default is 200ms) 1 way Relay output |
||
|
Signal Input |
3 way 4~20mA input, accuracy 0. 1%, acquisition signal such as temperature, press and liquid level |
||
Connect the temperature transducer Pt100, can finish the heat/energy measurement | |||
|
Data Interface |
Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS |
||
Special Cable |
Twisted-pair cable, generally, the length under 50 meters ; Select the RS485, transmission distance can over 1000m |
||
|
Pipe Installation Condition |
Pipe Material |
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed |
|
|
Pipe Diameter |
DN32~6000mm |
||
|
Straight Pipe |
Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump |
||
|
Measuring Medium |
Medium |
water,sea water ,alcohol,Acid and alkali,waste water,beer,all kinds of oil Single liquid can transmit sound wave. |
|
Temperature |
-30~160℃ |
||
Turbidity |
No more than 10000ppm and less bubble |
||
Flowrate |
0~±7m/s,Forward and backward measurement |
||
Work environment |
Protection grade |
Host:IP67;flow sensor:IP68 |
|
temperature |
Host:-20~60℃;flow sensor:-30~ 160℃ |
||
Humidity |
Host: 85%RH; Flow sensor:can measure under water, water depth^2m (tansducer sealed glue) |
||
Power Supply |
DC8~36V or AC85~264V |
||
|
Power Consumption |
1.5W |
||
Dimension |
132*150*85mm(host) |
||
Sensor choose
