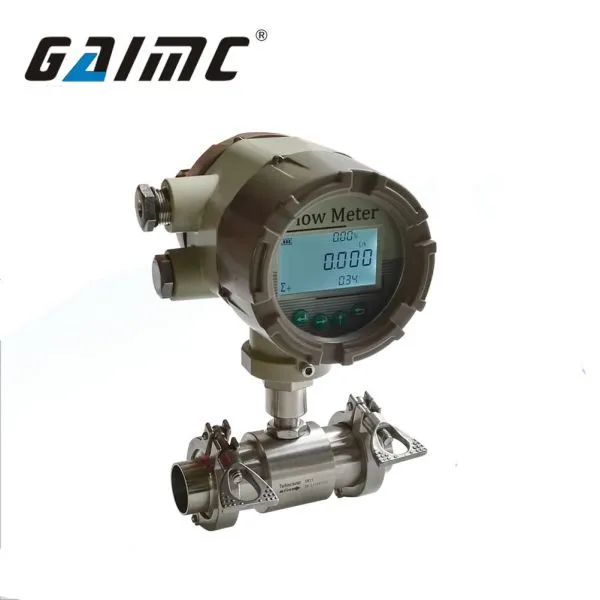

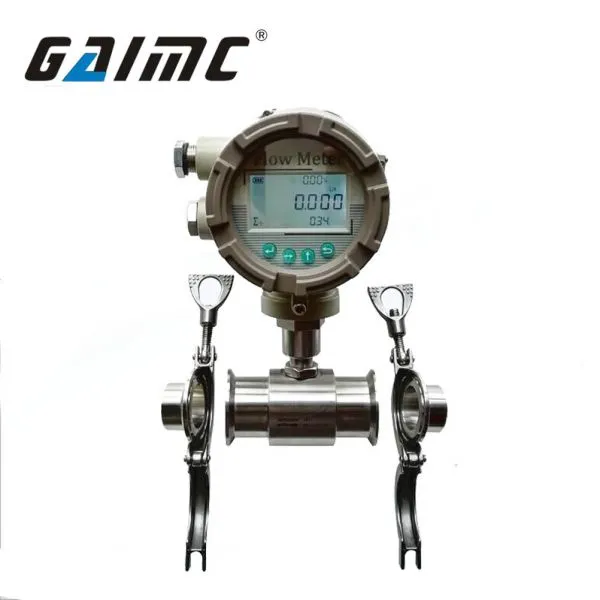

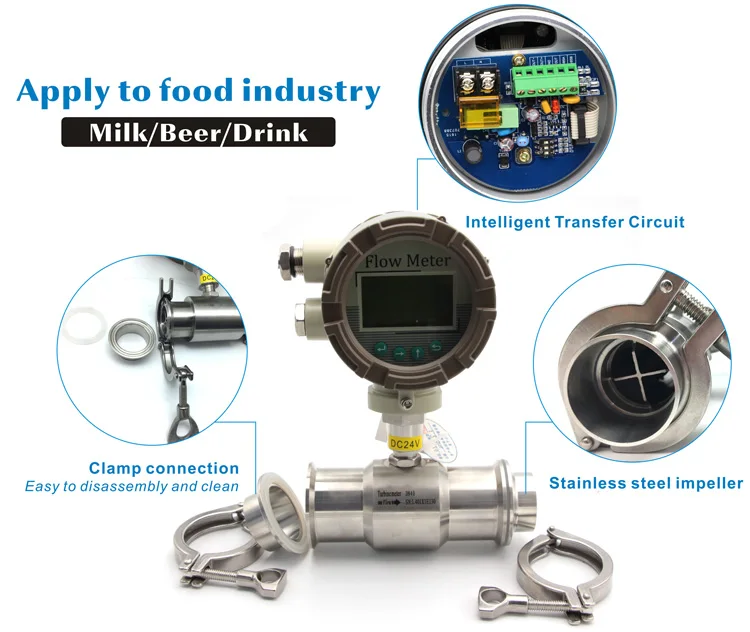

GTF400 series sanitary type turbine flow meter is a flow meter that widely applied in industries of pharmaceutical, food, beverage for measurement, batching, control, filling, etc. Rotating part of the flow meter is made of special material that possesses good anti-corrosive and rust proof performance. Structure of the flow meter is special designed and greatly approved accuracy and repeatability of the flow meter. Product also with easy maintenance connection, which is suitable for pharmaceutical and beverage industries.
| Item | Data |
| Medium |
Non-corrosive low velocity liquid without impurity, not suitable for gas and steam |
| Accuracy | Class 1.0, class 0.5 |
| Output | Pulse, 4-20mA analog output, RS485 (Modbus-RTU protocol), HART |
| Diameter | DN4-DN100 |
| Medium temperature | Default type T1: -20℃~+80℃ |
| High temp. type T2: -20℃~+120℃ | |
| High temp. type T3: -20℃~+150℃ | |
| Operation condition | Operating temperature: -20℃~+60℃ |
| Related humidity: 5%~90% | |
| Atmospheric pressure: 86kPa~106kPa | |
| Ingress protection | IP65 |
Flow range
Dimensions
Note for type selection
GTF400 series sanitary type turbine flow meter is mainly applicable for non-corrosive low velocity liquid without impurity, not for gas and steam.
Type selection process
Select main model and structure first, then ensure other specifications according to requirement, i.e. main model + nominal diameter + accuracy + installation method + temperature and pressure compensation + power supply + output.
