Help CenterVitrified Bond Double Side Face CBN Grinding Disc
Related Products
-
Diamond/CBN Wheels for Profile GrindingUS$ 0.1 - 0.5MOQ: 1 Piece -
Diamond/CBN Electroplated Tools,Electroplated Grinding WheelUS$ 0.1 - 0.5MOQ: 1 Piece
-
Vitrified Bond Diamond Grinding Wheels for PCD,pcd Grinding Wheel,vitrified Bond Grinding Wheel RpmUS$ 0.1 - 0.5MOQ: 1 Piece
-
Vitrified PCD Grinding Wheels Manufacturer,Supplier,Exporter,Vitrified PCD Grinding Wheel, Diamond/Cbn Grinding WheelsUS$ 0.1 - 0.5MOQ: 1 Piece
-
12А2-45 Cup Tool Diamond Wheel Grinding for Carbide Tools Resin Bond Grinding WheelUS$ 0.1 - 0.5MOQ: 1 Piece
Processing customization: yes |
Type: double end grinding wheel |
Material:CBN |
Working linear speed: 10-20 m/s |
Bond:Vitrified bond |
Grit: 600# |
Scope of application: rough and fine grinding of bearing end face |
Shape: double face |
Roundness <:> |
Cylindricity <:> |
Process: sintering |
Brand:More Superhard |
Size:1000x55x5x450 |
Email:Anna.wang@moresuperhard.com |

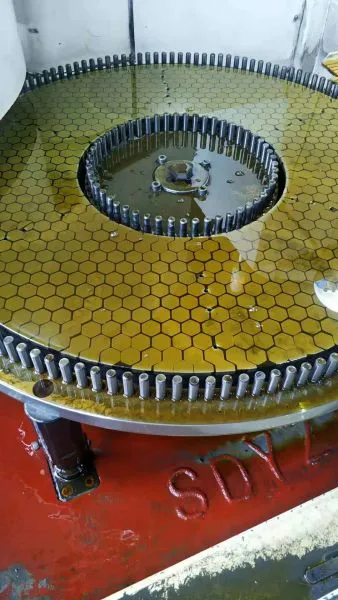

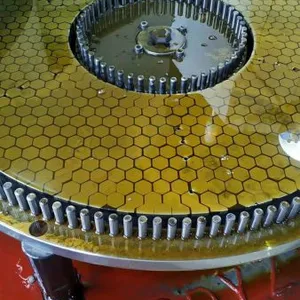

This cbn double-end grinding disc is specially designed for rough grinding of bearing end faces. After finishing, the finish is up to standard. Flatness

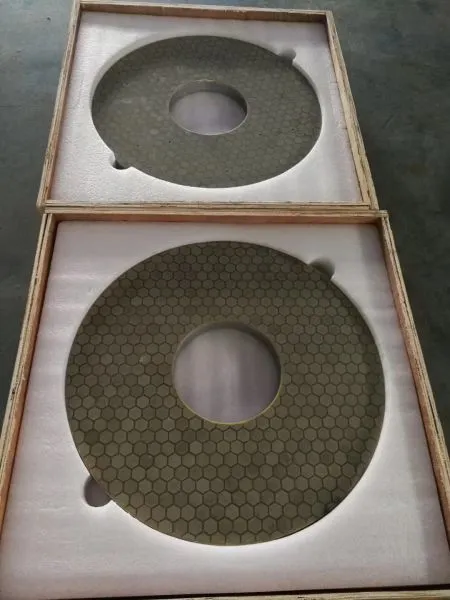

Grinding disc size: Dia1000x55x5xHole dia 450mm,Grit 600#
Auxiliary machine tools: Risheng 2M84100A
Grinding workpiece material: bearing steel GCr15, hardness HRC 60 ,finish Ra:
Workpiece name : bearing inner ring / outer ring (end grinding)
Workpiece type :
Large :7215 7015 7018 7216 7218
Small :7005 7007 7006
Cruise ship: 5 pieces The number of pieces per plate varies according to the model size 5-25
Grinding allowance: double side 0.03mm
Machining beat: Size mode Stop grinding to size 30-40s per plate, pressure gradually increases
Main pressure: 0.2-0.4Mpa
After pressure: 0.18-0.2 Mpa or less
Trimming frequency: 4 hours of continuous work
Open blade size: Green silicon carbide OD 330*40 200
Coolant: kerosene cooling
After machining the workpiece: flatness
Features: Good self-sharpening, high efficiency, high wear resistance and Long life
Thickness: W=5~10mm
Tyle: 6A2B, 1A2T
Size: D=380 ~ 1500mm
Grit: 80# ~ 1500#
Machine: Double Side Face Grinding grinder
Brand: ZTSUPERHARD
Application:Mainly used for processing key parts such as hydraulic parts, sealing components, air-conditioning compressors parts and tungsten carbide.
High workpiece precision
High efficiency
Low processing cost
Wide applications
Clean working environment
| Type | Model | Common Types | |
| 1A2T | |
1A2T D*T*H*X | |
| D | 305~1200 | ||
| X | 3~10 | ||
| 6A2B | |
6A2B D*T*d*H*X | |
| D | 380~1200 | ||
| W | 140~400 | ||
| X | 3~10 | ||
