High-speed Machining CBN Inserts Mold with BN-S20 SNGN CBN Turning Inserts
- 10000 Piece / Pieces per Month
- QINGDAO
- T/T PayPal Other Cash
- 5 days
- Hardened Steel CBN Indexable Insert for Mold with BN-S20 Cubic boron carbide inserts
- Halnn BN-K1 Grade Solid CBN Inserts Processing Slurry Pump Impeller
- Rough Turning Pump Housing with BN-K1 Solid CBN Insert from Halnn Tools
- Solid CBN Inserts BN-K1 Grade for Processing Pump Body Better Wear Resistance
- Heavy Duty Slurry Pump Solid CBN Inserts with BN-K1 SNMN High Efficiency
- Turning Slurry Pump with High Quality Solid CBN Inserts
Product Details
Brand Name: | Halnn Tools | Place of Origin: | China | Model Number: | SNMN060400 |
Product Description
High-speed Machining CBN Inserts Mold with BN-S20 CNGN CBN Turning Inserts
1. Halnn Tools High-speed Machining CBN Inserts Mold with BN-S20 CNGN CBN Turning Inserts
Hardened steel, also known as hardened steel, quenched hard material, steel after quenching, steel after heat treatment, etc. Hardened steel parts with hardness HRC of about 60 degrees referred to as 60 degree steel parts, Hualing super hard processing hardened steel molds from rough to fine The car has a complete tooling solution:
(1) High-speed Machining CBN Inserts: BN-S20 (roughing, semi-finishing);
(2) Finishing Machining CBN Inserts:: BN-H10 (continuous, micro-intermittent, high-speed), BN-H21 (intermittent, strong intermittent), BN-H05 (continuous finishing, high precision), BN-S200 (finishing);
2. Characteristics of CBN Turning Inser
Insert Grade | Machining Hardness | Processing Condition | Machining Materials |
BN-S20 | HRC45~68 | Roughing | Hardened Steel |
Semi-finishing | |||
BN-S200 | HRC45~68 | Semi-finishing | Hardened Steel, Superalloy |
Fine Finishing | |||
BN-H21 | HRC62~68 | Fine Finishing | Hardened Steel |
BN-H10 | HRC45~68 | Fine Finishing | Hardened Steel and High Strength Cast Iron |
BN-H20 | HRC45~63 | Fine Finishing | Hardened Steel |
BN-H11 | HRC45~63 | Fine Finishing | Hardened Steel |
3. Detailed data of CBN Turning Inser
Type | Dimension | Standard Chamfer | Grades | Corresponding tool holder | |||||||
L(mm) | φI.C(mm) | S(mm) | r(mm) | BN-K1 | BN-S10 | BN-S20 | BNK30 | BN-S300 | |||
SNMN090304 | 9.525 | 9.525 | 3.18 | 0.4 | S01020 S01025 S02020 S02030 S05020 S10020 | ◎ | ● | ● | ● | CSDNN CSSNR/L CSKNR/L CSRNR/L CSXNR/L
| |
SNMN090308 | 9.525 | 9.525 | 3.18 | 0.8 | ◎ | ● | ● | ● | |||
SNMN090312 | 9.525 | 9.525 | 3.18 | 1.2 | ◎ | ● | ● | ● | |||
SNMN090404 | 9.525 | 9.525 | 4.76 | 0.4 | ◎ | ● | ● | ● | |||
SNMN090408 | 9.525 | 9.525 | 4.76 | 0.8 | ◎ | ● | ● | ● | |||
SNMN090412 | 9.525 | 9.525 | 4.76 | 1.2 | ◎ | ● | ● | ● | |||
SNMN120404 | 12.7 | 12.7 | 4.76 | 0.4 | ● | ● | ● | ● | ● | ||
SNMN120408 | 12.7 | 12.7 | 4.76 | 0.8 | ● | ● | ● | ● | ● | ||
SNMN120412 | 12.7 | 12.7 | 4.76 | 1.2 | ● | ● | ● | ● | ● | ||
SNMN120712 | 12.7 | 12.7 | 7.94 | 1.2 | ● | ● | ● | ● | ● | ||
SNMN120716 | 12.7 | 12.7 | 7.94 | 1.6 | ● | ● | ● | ● | ● | ||
SNMN150716 | 15.875 | 15.875 | 7.94 | 1.6 | ● | ● | ● | ||||
SNMN201020 | 20 | 20 | 10 | 2.0 | ● | ● |
4.Application Case
High-speed Machining CBN Inserts Mold with BN-S20 SNGN CBN Turning Inserts

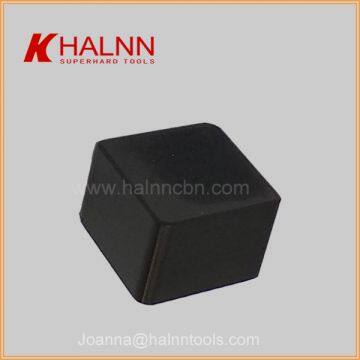

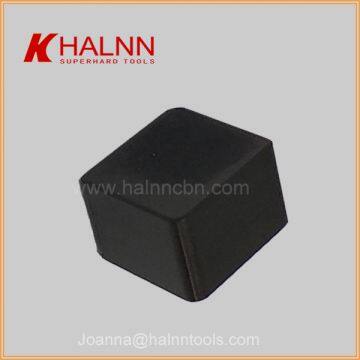

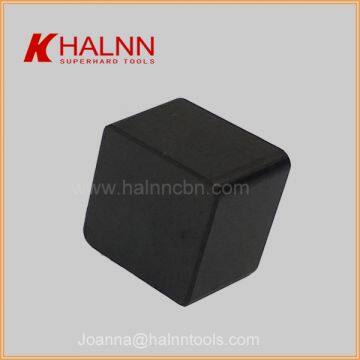

5.Image
