Hardened Steel CBN Indexable Insert for Mold with BN-S20 Cubic boron carbide inserts
1. Halnn Tools High-speed Machining CBN Inserts Mold with BN-S20 CNGN CBN Turning Inserts
Hard milling hardened steel mold advantages
(1) High efficiency. The hard milling process saves the time taken for the design and manufacture of the EDM electrode and shortens or eliminates the tooling time of the tool fitter.
(2) High quality When hard milling the mold, the hardened tool steel is directly assembled and formed.
(3) Low cooling and lubrication requirements Normally, hard milling can be done with dry milling or with a small amount of cooling lubricant.
(4) Low investment Hard milling can be carried out on a dedicated CNC machine or machining center, or on a general machine that is modified with a high-speed spindle.
2. Characteristics of CBN Indexable Insert
Insert Grade |
Suited Materials |
Machining Type |
Typical Application |
BN-S20 |
Hardened Steel, Heat and abrasive resistant steel, High manganese steel |
Roughing, Semi-Finishing |
HSS Rolls, Ball Screw, Wind Power Bearings |
BN-S200 |
Hardened Steel, Superalloy |
Finishing |
Wind Power Bearings |
BN-H11 |
Hardened Steel |
Semi-Finishing, Finishing |
Bearings, Gears, Gear Shaft, Hardened Mold |
BN-H20 |
Hardened steel, other materials of difficult to machine |
Semi-Finishing, Finishing |
Hardened Steel Gears, Mold,ect |
BN-H10 |
Hardened Steel, high strength cast iron |
Finishing |
Bearings, Gears, Gear Shaft, High hardness component |
BN-H21 |
Hardened Steel |
Finishing |
Bearings, Gears, Gear Shaft, Mold,ect. |
3. Detailed data of CBN Indexable Insert
Type |
Dimension |
Standard Chamfer |
Grades |
Corresponding tool holder |
|||||||
L(mm) |
φI.C(mm) |
S(mm) |
r(mm) |
BN-K1 |
BN-S10 |
BN-S20 |
BNK30 |
BN-S300 |
|||
SNMN090304 |
9.525 |
9.525 |
3.18 |
0.4 |
S01020 S01025 S02020 S02030 S05020 S10020 |
◎ |
● |
● |
● |
CSDNN CSSNR/L CSKNR/L CSRNR/L CSXNR/L
|
|
SNMN090308 |
9.525 |
9.525 |
3.18 |
0.8 |
◎ |
● |
● |
● |
|||
SNMN090312 |
9.525 |
9.525 |
3.18 |
1.2 |
◎ |
● |
● |
● |
|||
SNMN090404 |
9.525 |
9.525 |
4.76 |
0.4 |
◎ |
● |
● |
● |
|||
SNMN090408 |
9.525 |
9.525 |
4.76 |
0.8 |
◎ |
● |
● |
● |
|||
SNMN090412 |
9.525 |
9.525 |
4.76 |
1.2 |
◎ |
● |
● |
● |
|||
SNMN120404 |
12.7 |
12.7 |
4.76 |
0.4 |
● |
● |
● |
● |
● |
||
SNMN120408 |
12.7 |
12.7 |
4.76 |
0.8 |
● |
● |
● |
● |
● |
||
SNMN120412 |
12.7 |
12.7 |
4.76 |
1.2 |
● |
● |
● |
● |
● |
||
SNMN120712 |
12.7 |
12.7 |
7.94 |
1.2 |
● |
● |
● |
● |
● |
||
SNMN120716 |
12.7 |
12.7 |
7.94 |
1.6 |
● |
● |
● |
● |
● |
||
SNMN150716 |
15.875 |
15.875 |
7.94 |
1.6 |
● |
● |
● |
||||
SNMN201020 |
20 |
20 |
10 |
2.0 |
● |
● |
|||||

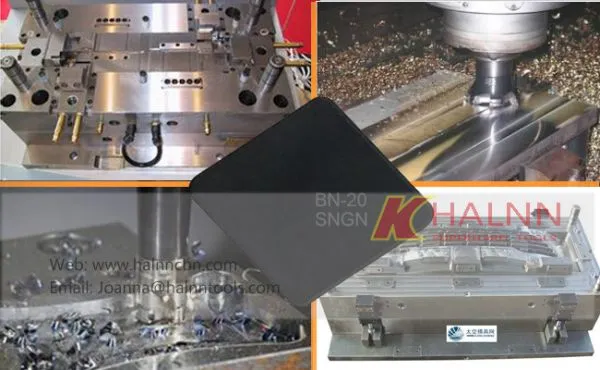

4.Application Case
Hardened Steel CBN Indexable Insert for Mold with BN-S20 Cubic boron carbide inserts
5.Packing
6. Contact us
If you have another question, pls feel free to contact us as below:
