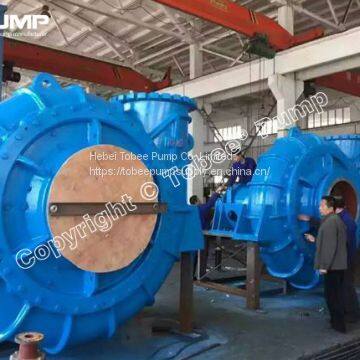

Tobee® 400WN Dredge Pump-www.slurrypumpsupply.com

SPECIFICATIONS:

Size: 8" to 40" Pump
Capacity: 600-25000 m3/h
Head: 20-86 m
Handing solids: 0-350mm
Concentration: 0%-70%
Material: Hyper chrome alloy, Cast iron, Stainless steel etc

Tobee^® WN Dredge Pumps are single-stage single suction cantilever horizontal centrifugal pumps with advantages of light weight, good wear-resistance, super dredging performance, WN dredging pumps impeller passage is very wide, It can continuously transport gravels or high plastic clay and not happens jam, Especially for dredging sands and damming of the river and seas.

WN Series Dredge Pumps can be also integrated with the gearbox, That mean the pump and gear box share one common shaft. So It doesn't need the pump bearing assembly and frame, In this way, Not only save space, but also reduce cost and breakdown ratio, Let the dredge pump give play to maximum effectiveness.

Design Features:

√ Construction
• WN200 to WN500 dredge pumps are of single casing, single stage cantilevered horizontal centrifugal pumps. Two types of coupling with gear box: frame and pump box.
• WN600 to WN1000 dredge pumps are of double casings, single stage cantilevered centrifugal pumps.
• These pumps are equipped with frame and lubrication is force thin oil. The design of double casing the pump working till the volute liner almost worn down and guarantee no leakage when volute liner is worn down.
√ Easy Uninstallation & Convenient Maintenance
• WN dredge pump is of front uninstallation construction to make uninstall easily and convenient
maintenance. And special tools are equipped for uninstalling the parts.
• Standard four-head trapezoid thread connection between impeller and shaft can transfer powerful torsion and be convenient to uninstall. Impeller uninstall ring at shaft sleeve side also make the impeller uninstallation much easier.
√ Good Performance
• Good NPSH can not only guarantee suction but also make deep dredge and high allowable suction density. Minimum NPSH: 4m.
• With wide impeller passage, pump can continuously pump gravel or high plastic clay without clogging. Max allow particle size: 350mm.
• Performance curves descend obviously to make pumps adopt pipeline distance changes.
• By changing the impeller diameter or impeller rotating speed, it can easily change the discharge with the same flow rate.
√ Material
• Material of wet parts is high wear resistant high chrome alloy.
• Considering the maintenance, wear resistant parts are nearly of the same wear life to reduce maintenance & interchange costs.
√ Low Hydraulic loss, High efficiency, Energy Saving
• Efficiency of WN is 2 or 3 percentage higher than other common pumps.
√ Reliable Shaft Seal, No leakage
• Shaft Seal types of WN200 to WN500: Mechanical seal, packing, or combination of mechanical and packing
• WN600 to WN1000 uses helical casing L rubber seal which is made of 3 pieces of L seal ring and one special thread shaft sleeve.
√ Turning
• WN700W to WN1000 can be equipped with turning to change rotating directions.

Tobee^® WN Dredge Pumps Performance Parameters:

Tobee^® WN Dredge Pumps Structural Drawing:

Tobee^® WN Dredge Pumps Applications:

WN series dredge pumps are widely used for Dredging, Cutter Suction Dredger, Sand and Gravel, Contract Dredging, Tailings, Booster Pump, Sand waste pump, Material transfer pump etc.
