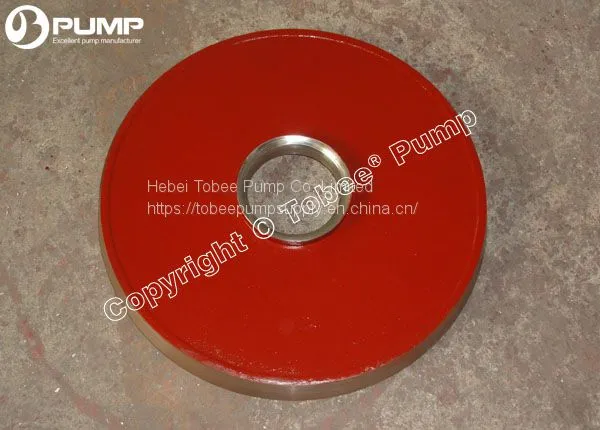

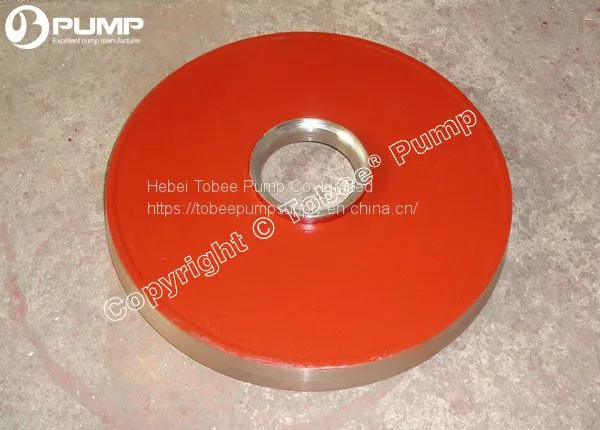

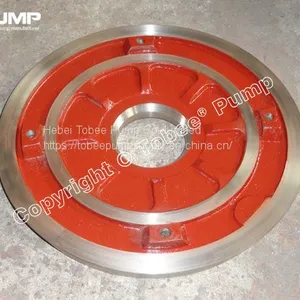

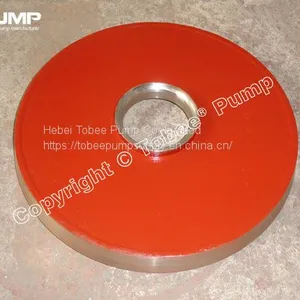

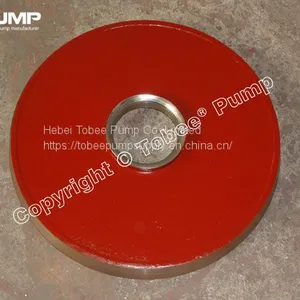

Help CenterTobee® Slurry Pump Frame Plate Liner Insert FPL Insert D3041 Used for 4/3C-AH, 4/3D-AH Slurry Pump
Related Products
-
China Slurry Pump Spare Parts Manufacturer Throat Bush F6083 Used for 8/6E-AH, 8/6F-AH Slurry PumpUS$ 80 - 150MOQ: 1 Piece -
China Slurry Pump Volute Liners for Standard AH Slurry Pump From Slurry Pump ManufacturerUS$ 80 - 150MOQ: 1 Piece
-
Tobee® Slurry Pump Ceramic Shaft Sleeves China Spare PartsUS$ 80 - 150MOQ: 1 Piece
-
Tobee Spare Parts Impeller B15127A05 for 2/1.5 AH Slurry PumpUS$ 15 - 20MOQ: 1 Piece
-
Tobee Pump Spare Parts Impeller FAM10147 for 14/12 AH Slurry PumpUS$ 200 - 400MOQ: 1 Piece

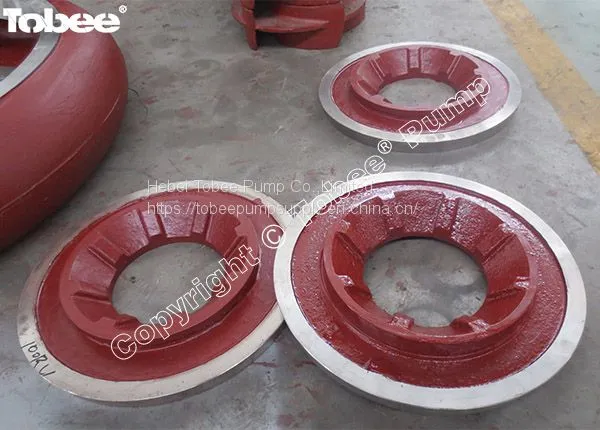

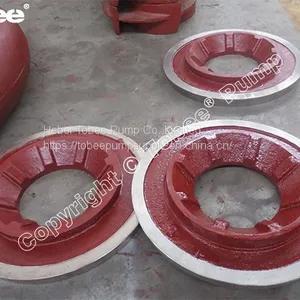

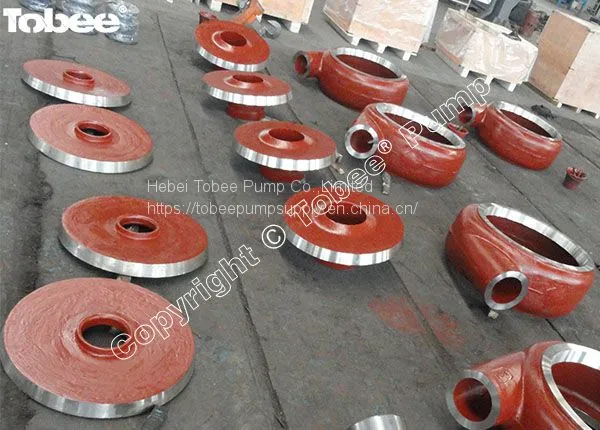

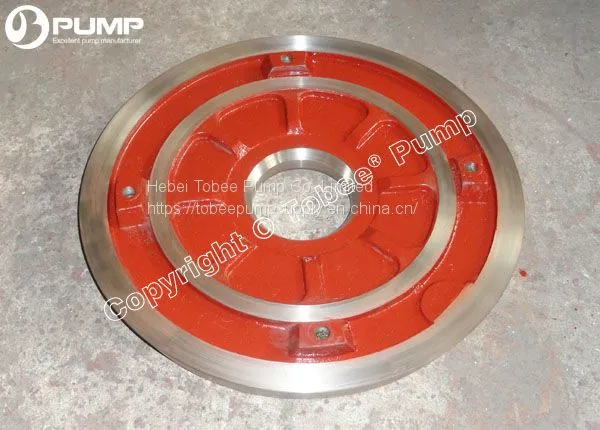

Slurry Pump Frame Plate Liner Insert is a wear part of slurry pumps, It is also called for slurry pump back liner based on locating position in slurry pump structure, Frame plate liner insert forms a pump chamber with throat bush and volute liner where the slurry would flow through them, Tobee offers frame plate liner inserts are interchangeable with warman pump frame plate liner inserts with high chrome, natural rubber, polyurethane for different working condition.
Slurry Pump Frame Plate Liner Insert Code:
Frame Plate Liner Insert Code |
Warman AH Slurry Pumps |
Materials |
B1041 |
1.5/1B-AH |
High chrome, Natural rubber, Polyurethane |
B15041 |
2/1.5B-AH |
High chrome, Natural rubber, Polyurethane |
C2041 |
3/2C-AH |
High chrome, Natural rubber, Polyurethane |
D3041 |
4/3C-AH, 4/3D-AH |
High chrome, Natural rubber, Polyurethane |
E4041 |
6/4D-AH, 6/4E-AH |
High chrome, Natural rubber, Polyurethane |
F6041 |
8/6E-AH, 8/6F-AH, 8/6R-AH |
High chrome, Natural rubber, Polyurethane |
G8041 |
10/8ST-AH |
High chrome, Natural rubber, Polyurethane |
G10041 |
12/10ST-AH |
High chrome, Natural rubber, Polyurethane |
G12041 |
14/12F-AH,14/12ST-AH |
High chrome, Natural rubber, Polyurethane |
H14041 |
16/14TU-AH |
High chrome, Natural rubber, Polyurethane |
FPL Insert |
Warman HH Slurry Pumps |
Materials |
CH1041 |
1.5/1C-HH |
High chrome, Polyurethane |
DH2041 |
3/2D-HH |
High chrome, Polyurethane |
EH3041 |
4/3E-HH |
High chrome, Polyurethane |
FH4041 |
6/4F-HH |
High chrome, Polyurethane |
FH6041 |
6S-H, 8/6S-H |
High chrome, Polyurethane |
FPL Insert |
Warman L Slurry Pumps |
Materials |
175041 |
20A-L |
High chrome, Natural rubber |
32056 |
50B-L |
High chrome, Natural rubber |
43041 |
75C-L |
High chrome, Natural rubber |
64041 |
100D-L |
High chrome, Natural rubber |
86041 |
150E-L |
High chrome, Natural rubber |
108041 |
200E-L |
High chrome, Natural rubber |
SL30041 |
300S-L |
High chrome, Natural rubber |
SL35041 |
350S-L |
High chrome, Natural rubber |
STL40041 |
400ST-L |
High chrome, Natural rubber |
STL45041 |
450ST-L |
High chrome, Natural rubber |
TUL55041 |
550TU-L |
High chrome, Natural rubber |
FPL Insert |
Warman G(H) Gravel Pumps |
Materials |
DG4041 |
6/4D-G, 6/4E-G |
High chrome |
EG6041 |
8/6E-G |
High chrome |
FG8041 |
10/8F-G, 10/8S-G |
High chrome |
FG10041 |
12/10G-G |
High chrome |
GG12041 |
14/12G-G |
High chrome |
FGH8041 |
10/8F-GH |
High chrome |
SGGH10041 |
12/10G-GH |
High chrome |
TG14041 |
16/14TU-GH |
High chrome |
FPL Insert |
Warman SP Vertical Slurry Pumps |
Materials |
SP4041 |
40PV-SP |
High chrome, Natural rubber, Polyurethane |
SP65041 |
65QV-SP |
High chrome, Natural rubber, Polyurethane |
SP10041 |
100RV-SP |
High chrome, Natural rubber, Polyurethane |
SP15041 |
150SV-SP |
High chrome, Natural rubber, Polyurethane |
SP20041 |
200SV-SP |
High chrome, Natural rubber, Polyurethane |
SP25041 |
250TV-SP |
High chrome, Natural rubber, Polyurethane |
SP30041 |
300TV-SP |
High chrome, Natural rubber, Polyurethane |
Slurry Pumps After-sales Service:

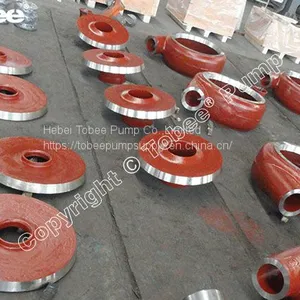

As the slurry pump wet ends parts such as the impeller, volute liner, Frame plate liner insert, Throat bush, shaft sleeve are consumption parts and we could provide you always the qualified slurry pump parts within very short time.
Packing Transport Services
Considering the order pump size and we could provide case or pallet as per your need to make sure it safe enough during the long distance road and ocean shipping. having own export company and so we could help you find the best ocean shipping solution and service for you from the goods out of factory to your destination.
Installation Services
Tobee Pump have more than 30 years experienced pump installation workers and are very aware of any onside application. We could provide abroad pump installation service and expect pump manufacturing and sales,abroad pump installation is getting more and more popular by our regular clients abroad.
Technical Support Services
Technical data sheet, Performance curve, General arrangement drawing, Operating manual will be sent within 24th for your checking, So Pls feel free to contact us If you have any need.
