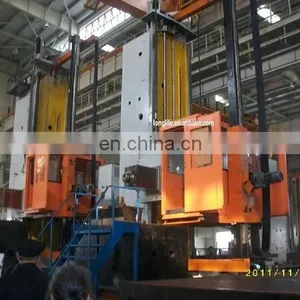

TPK260 cnc horizontal milling and boring machine
(floor type, 260mm spindle dia.)
TPX6216(Ø160mm) Conventional Horizontal Boring Milling Machine
TPX6113(Ø130mm) Widely-used Horizontal Boring Milling Machine
Item |
Unit |
TPK260 cnc horizontal boring milling machine |
Headstock | ||
Spindle dia. |
mm |
260 |
Spindle taper |
ISO |
60 |
Spindle speed |
rpm |
1.6~800 |
Shift number of spindle gear |
|
4 |
Spindle torque |
Nm |
20000 |
End size of milling head |
mm |
400 |
Ram section |
mm |
620x740 |
Main motor power |
kW |
100 |
Working range | ||
X-axis(column travel) |
mm |
6000+nx1000 |
Y-axis(headstock vertical travel) |
mm |
5000~9000 |
Z-axis(ram travel) |
mm |
1600 |
W-axis(spindle travel) |
mm |
1700 |
Overlay travel of spindle and tram |
mm |
3300 |
Travel speed |
|
|
X-axis |
mm |
0.1~5600 |
Y-axis |
mm |
0.1~5600 |
W-axis |
mm |
0.1~4800 |
Z-axis |
|
0.1~4800 |
Measuring system |
|
HEIDENHAIN |
CNC system |
|
Siemens 840D sl |
S/N |
Name |
Quantity |
1 |
Radial tool post |
1 |
2 |
work table |
1 |
3 |
Socket wrench |
1 |
4 |
Socket wrench |
2 |
5 |
Small adjusting shaft of spindle bearing nut |
1 |
Pls send inquiry to me for optioanl accessories and other further information about such cnc horizontal boring milling machine.
Spindle diameter: 260mm;
CNC controller: Siemens 840D sl
Spindle bearing adopts constant flow hydrostatic bearing. with advantages of heavy loading capacity. little heat dissipation, and long term accuracy stability;
X. Y. Z axis adopt pump per pocket hydrostatic guideway of constant flow;
Double rack and pinion transmission for clearance elimination, and preloaded ballscrew transmission;
Headstock balancing adopts electro-hydraulic compensation mechanism;
Auto diagnoses function for convenient operation.
