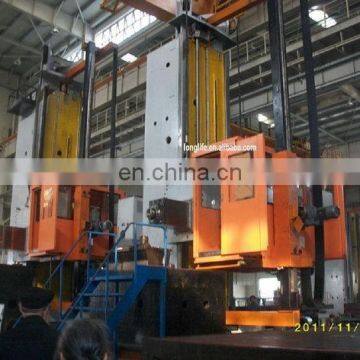

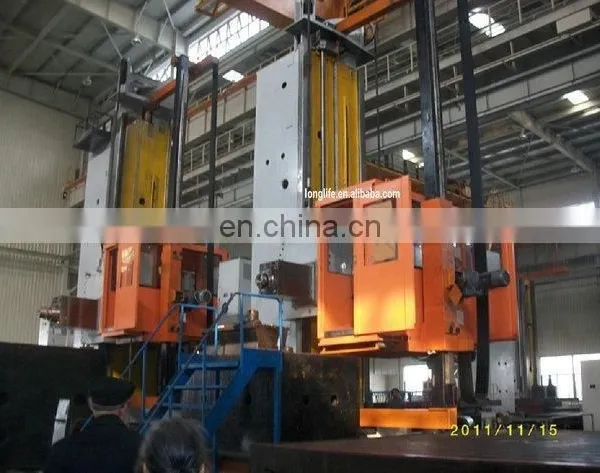

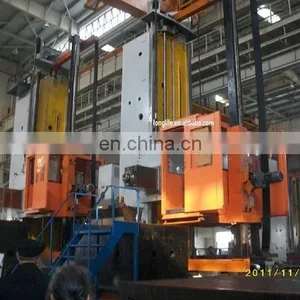

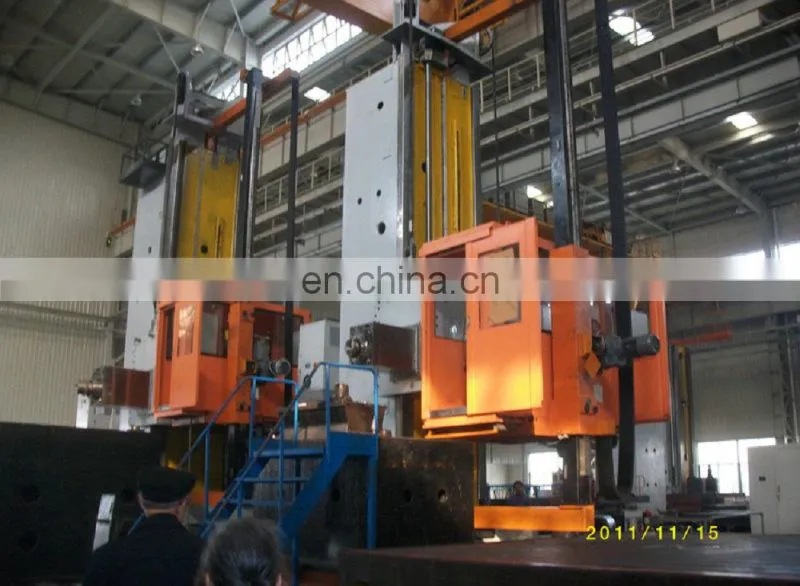

TPK320 floor type cnc boring milling machine
(floor type, 320mm spindle diameter)
spindle diameter: 320mm
main motor power: 130kW
CNC controller: Siemens 840D sl
Spindle bearing adopts constant flow hydrostatic bearing. with advantages of heavy loading capacity. little heat dissipation, and long term accuracy stability;
X. Y. Z axis adopt pump per pocket hydrostatic guideway of constant flow;
Double rack and pinion transmission for clearance elimination, and preloaded ballscrew transmission;
Headstock balancing adopts electro-hydraulic compensation mechanism;
Auto diagnoses function for convenient operation.
Item |
Unit |
TPK320 |
Headstock | ||
Spindle dia. |
mm |
320 |
Spindle taper |
ISO |
60 |
Spindle speed |
rpm |
2.5~1000 |
Shift number of spindle gear |
|
4 |
Spindle torque |
Nm |
25000 |
End size of milling head |
mm |
470 |
Ram section |
mm |
800x950 |
Main motor power |
kW |
130 |
Working range | ||
X-axis(column travel) |
mm |
6000+nx1000 |
Y-axis(headstock vertical travel) |
mm |
6000~12000 |
Z-axis(ram travel) |
mm |
2500 |
W-axis(spindle travel) |
mm |
1800 |
Overlay travel of spindle and tram |
mm |
4300 |
Travel speed |
|
|
X-axis |
mm |
0.1~6000 |
Y-axis |
mm |
0.1~6000 |
W-axis |
mm |
0.1~6000 |
Z-axis |
|
0.1~6000 |
Measuring system |
|
HEIDENHAIN |
CNC system |
|
Siemens 840D sl |
S/N |
Name |
Quantity |
1 |
Radial tool post |
1 |
2 |
work table |
1 |
3 |
Socket wrench |
1 |
4 |
Socket wrench |
2 |
5 |
Small adjusting shaft of spindle bearing nut |
1 |
Pls send inquiry to me for optioanl accessories and other further information about such cnc horizontal boring milling machine.
