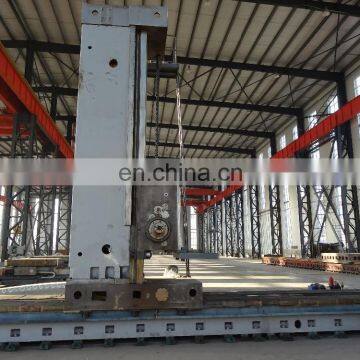

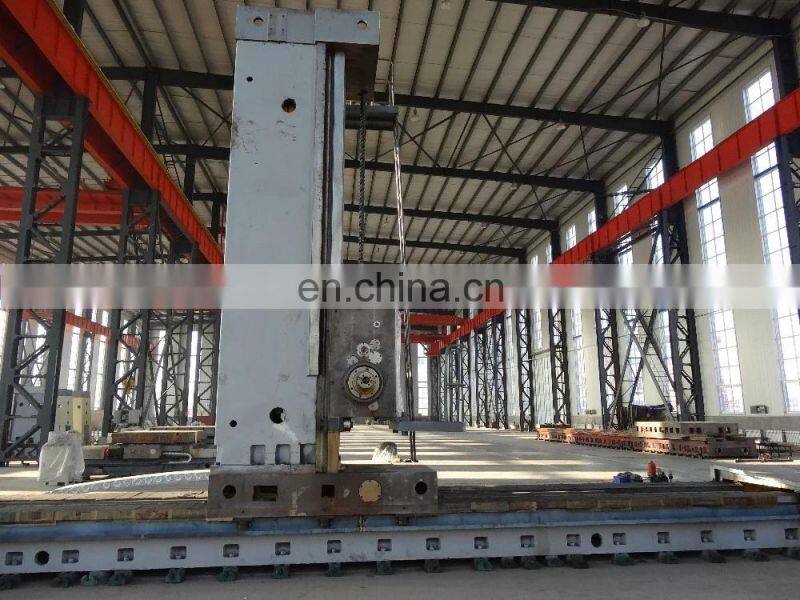

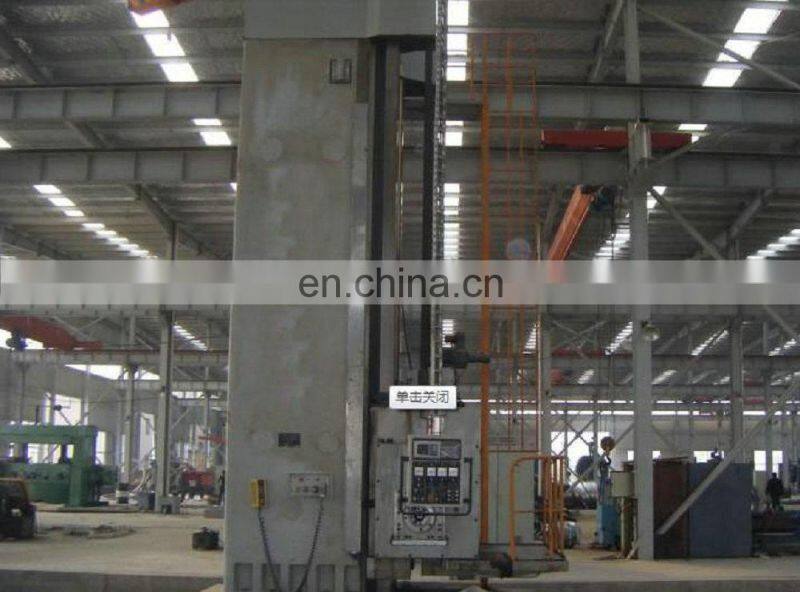

TK6916A cnc horizontal boring milling machine
TPX6113(Ø130mm) Widely-used Horizontal Boring Milling Machine
Specifications of 6216 horizontal boring milling machine | Unit | Parameter |
1. Spindle |
|
|
Diameter of boring spindle | mm | Φ160 |
Diameter of milling spindle | mm | Φ260 |
Taper hole of boring spindle |
| ISO50 |
Rotational speed of boring and milling spindle (stepless) | r/min | 2~650 |
Feed range of boring spindle (stepless) | mm/min | 0.5~3000 |
Rapid speed of boring spindle | mm/min | 3000 |
Maximum axial travel of boring spindle | mm | 1000 |
Maximum diameter of boring hole | mm | Φ750 |
2. Radial tool post of facing head |
|
|
End surface size | mm | 480×480 |
Feed range (stepless) | mm/min | 0.5~3000 |
Maximum axial travel | mm | 800 |
Rapid speed | mm/min | 3000 |
3. Headstock |
|
|
Maximum vertical travel (Y axis) | mm | 3000 |
Feed range (stepless) | mm/min | 1~3000 |
Rapid speed | mm/min | 3000 |
4. Front column |
|
|
Maximum horizontal travel (X axis) | mm | 6000 |
Feed range (stepless) | mm/min | 1~4000 |
Rapid speed | mm/min | 4000 |
5. Platform |
|
|
Dimension of platform | mm | 5000×1800×400 |
Area (length×width) | mm | 4100×4500 |
Maximum loading capacity | T/m2 | 15 |
6. Overall weight | T | 65 |
S/N | Name | Part No. (specification) | Quantity |
1 | Radial tool post | T6216-90001 | 1 |
2 | Jaw | T6216-90002 | 1 |
3 | Socket wrench (S=46) | T6216A-90350 | 1 |
4 | Socket wrench (S=75) | T6216A-90351 | 2 |
5 | Small adjusting shaft of spindle bearing nut | T6216-90355 | 1 |
Such TK6916 floor type cnc horizontal boring and milling machine has following features:
This machine is applies to the coarse and fine processing as well as drilling and reaming processing of surface and hole for large, heavy and over heavy complex components.
It is suitable for general machinery manufacturing industry, especially for single pieces and small batch production of high precision and complex components.
It has features of reducing manufacture number of process equipment and shortening production preparation period. The machine can complete the processing of milling, boring, turning, drilling and hole boring only in condition that workpiece is prepared on machine.
This machine uses circular interpolation process (x, y coordinate axes) as well as small diameter milling cutter which can process any plane curve type surface.
The adoption contouring control method for milling of inclined plane, square plane and big hole end plane narrowed operating space, improved production efficiency and relieve labor intensity.
This machine is equipped with high precision rotary work table and square-edge milling head and other functional components which can complete the processing of pentahedron.
