XH7132 Cnc Vertical Machine Center / Cnc Machine Center Price
US$ 20,000 - 850,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
haishu
Place of Origin:
Shandong, China
Type:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XH7125 Cnc Machine Center Price With the Factory Manufacturing Price Vertical TypeUS$ 15,000 - 8,000,000MOQ: 1 Set -
China Cnc Vertical Machine Center VMC850/machining Center With NSK High Precision BearingUS$ 11,000 - 20,000MOQ: 1 Set
-
CNC Machining Center Automatic Tool Changer CNC Milling Machine VMC850US$ 35,000 - 200,000MOQ: 1 Set
-
CNC Vertical Centro de Mecanizado Cnc VMC800US$ 30,600 - 45,000MOQ: 1 Set
-
Centro de Mecanizado VMC850US$ 11,000 - 20,000MOQ: 1 Set
Brand Name
haishu
Place of Origin
Shandong, China
Type
Vertical
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1YEAR
Weight
2750KG
Voltage
380v 3phase
Condition
New
Power(W)
3.7KW

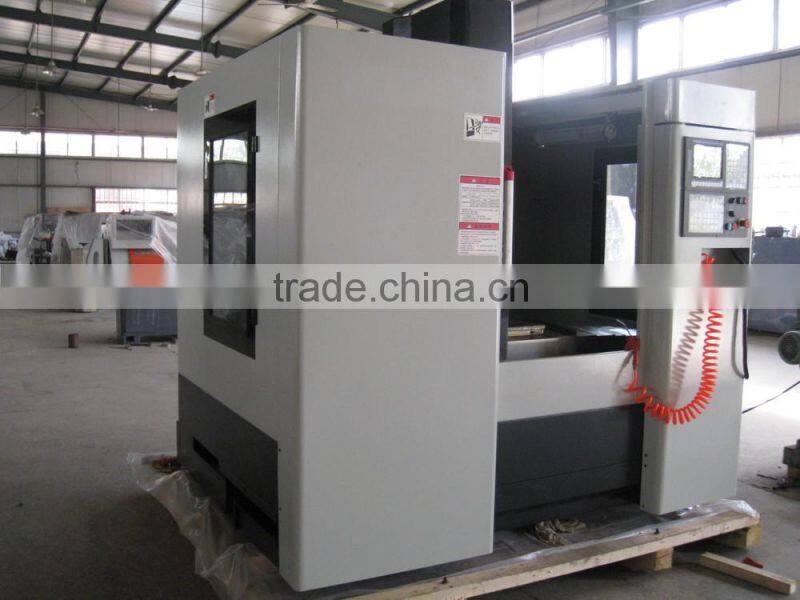

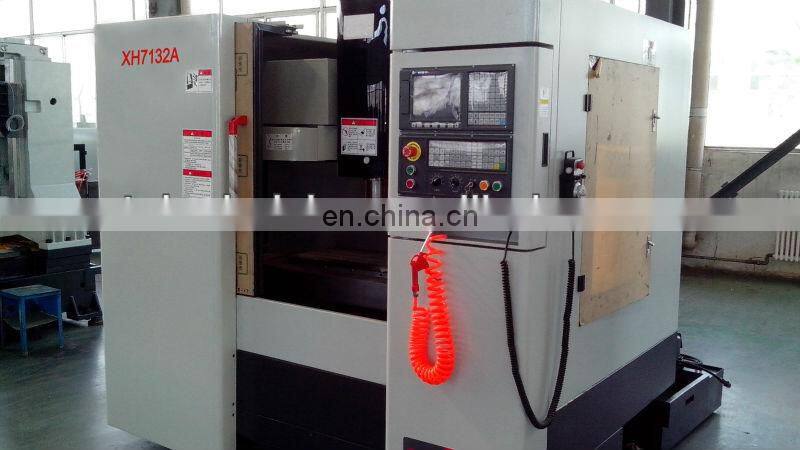

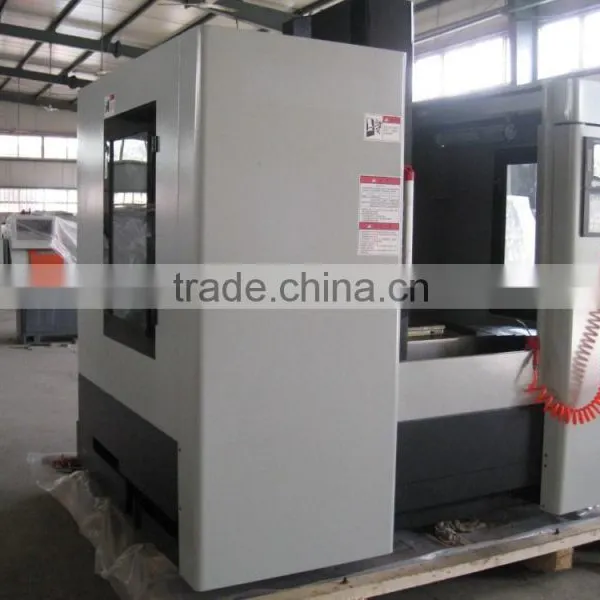

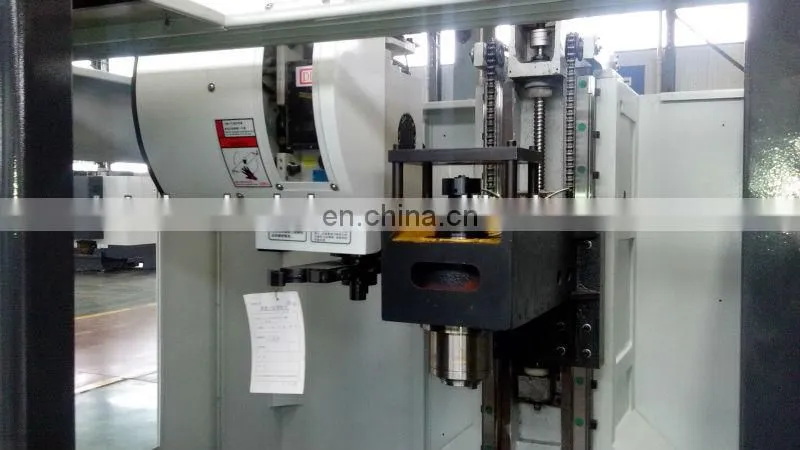

XH7132 cnc vertical machine center / cnc machine center price
Machine use
This machine is applicable to vertical machining center for machining and mold making, can meet the processing requirements from roughing to finishing, to be completed by milling, drilling, tapping, boring and many other processes.
Main structural features of
1. fuselage and the main components are high strength cast iron, microstructure stability, to ensure the stability of long-term use of the machine;
2. bottom of column A-shaped bridge span structure, combined with the base of a large box, and significantly reduce the vibration of the body heavy cutting;

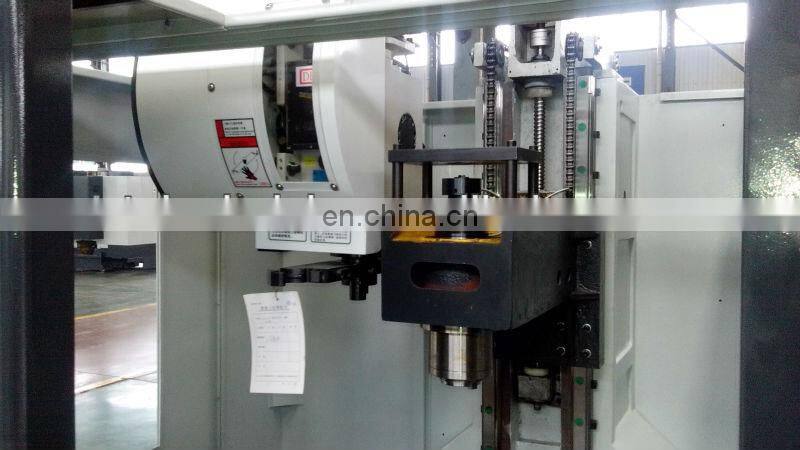

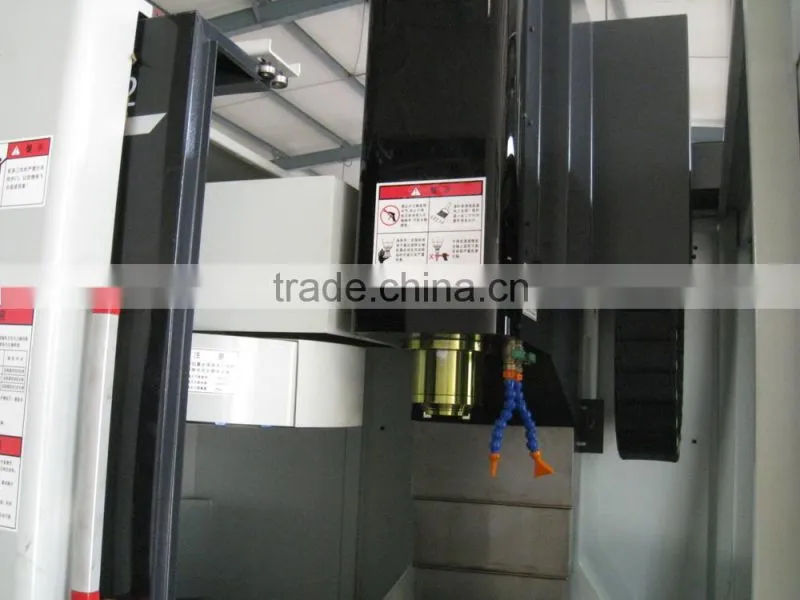

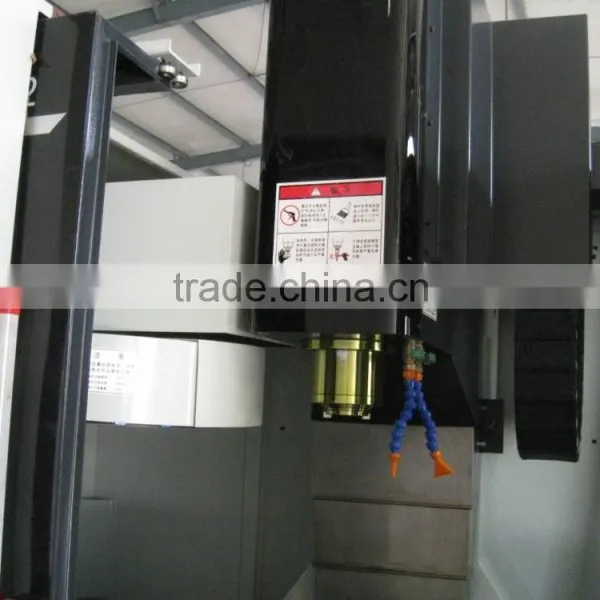

3. High-speed, high precision, high rigidity spindle unit;
4. Intermittent automatic lubrication;
5. Pneumatic loose, pull the knife system
This machine is applicable to vertical machining center for machining and mold making, can meet the processing requirements from roughing to finishing, to be completed by milling, drilling, tapping, boring and many other processes.
Main structural features of
1. fuselage and the main components are high strength cast iron, microstructure stability, to ensure the stability of long-term use of the machine;
2. bottom of column A-shaped bridge span structure, combined with the base of a large box, and significantly reduce the vibration of the body heavy cutting;
3. High-speed, high precision, high rigidity spindle unit;
4. Intermittent automatic lubrication;
5. Pneumatic loose, pull the knife system
SPECIFICATION |
UNIT |
XH7132 |
TABLE SIZE |
MM |
920×320 |
NO./WIDTH/DISTANCE OF T-SLOT |
MM |
3-14-85 |
TRAVEL RANGE(X,Y,Z) |
MM |
620×350×500 |
DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE |
MM |
100~600 |
DISTANCE FROM SPINDLE AXIS TO VERTICAL GUIDEWAY |
MM |
395 |
RAPID FEED SPEED(X,Y,Z) |
MM/MIN |
18000 |
FEED SPEED(X,Y,Z) |
MM/MIN |
2.5~3000 |
TAPER OF SPINDLE |
|
BT40 |
SPINDLE SPEED |
R/MIN |
40~6000 |
SPINDLE MOTOR POWER |
KW |
3.7 |
TOOL MAGAZINE CAPABILITY |
|
16 |
MAX.DIMENSION OF TOOL |
MM |
Φ120×200 |
MAX.WEIGHT OF TOOL |
KG |
8 |
POSITIONING ACCURACY |
MM |
±0.015 |
REPEAT POSITIONING ACCURACY |
MM |
±0.0075 |
CNC SYSTEM |
|
FANUC OI MATE MD |
MACHINE WEIGHT |
KG |
2540 |
OVERALL DIMENSIONS |
MM |
2050×1870×2170 |
