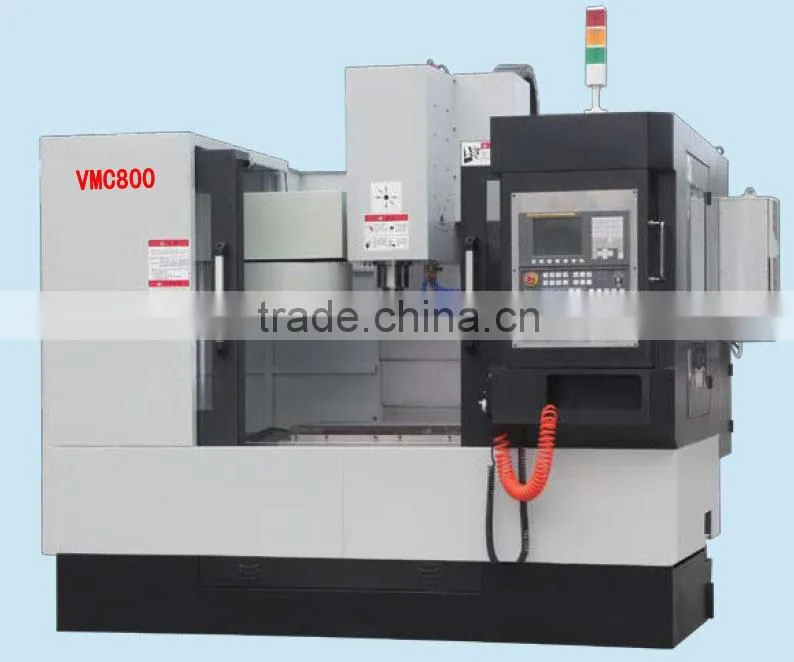

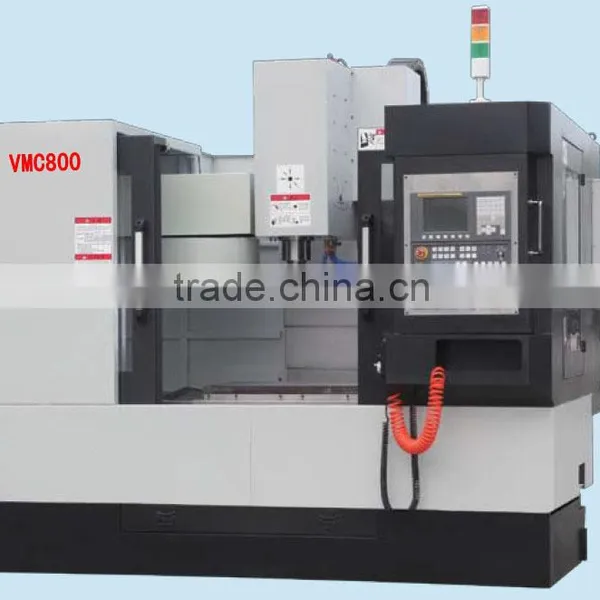

CNC vertical centro de mecanizado cnc VMC800
Specifications
Item |
Unit |
VMC800 |
Table travel(X,Y,Z) |
mm |
800×460×500 |
Table size |
mm |
800×460 |
Number/Width/Distance of T-slot |
mm |
3-18-150 |
Distance from spindle nose to table surface |
mm |
150~650 |
Distance from spindle axis to column guideway |
mm |
560 |
Taper of spindle |
|
BT40 |
Spindle speed range |
r/min |
40~6000 |
Spindle motor power |
kw |
7.5 (AC servo)7.5 |
Rapid traverse speed(X,Y,Z) |
m/min |
30/30/24 |
Cutting feed speed(X,Y,Z) |
mm/min |
2~10000 |
Tool magazinpability |
qty |
16 |
Max.dimension of tool |
mm |
φ130×300 |
Max.weight of tool |
kg |
8 |
Positioning accuracy |
mm |
±0.015 |
Repeat positioning accuracy |
mm |
±0.0075 |
L×W×H |
mm |
2450×2200×2300 |
Net weight |
kg |
4650 |
Main configuration
Standard:
1,CNC system: GSK25i servo system.
2Spindle: Taiwan's high speed,precision spindle unit.
3,Tool magazine: Taiwan's armless library.
4,Ball screw: Taiwan's precision ball screw.
5,protection: full outer stainless steel inner defense and protection.
Optional:
KND-2000M,HNC-21M,FANUC 0i mateMD or Siemens 828D.

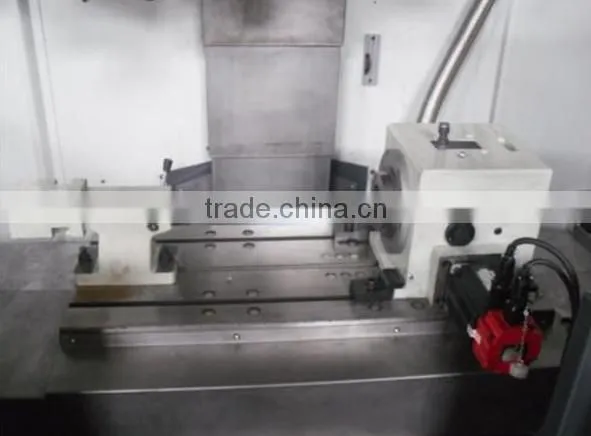

CNC fourth axis.
Automatic chip removal system.
