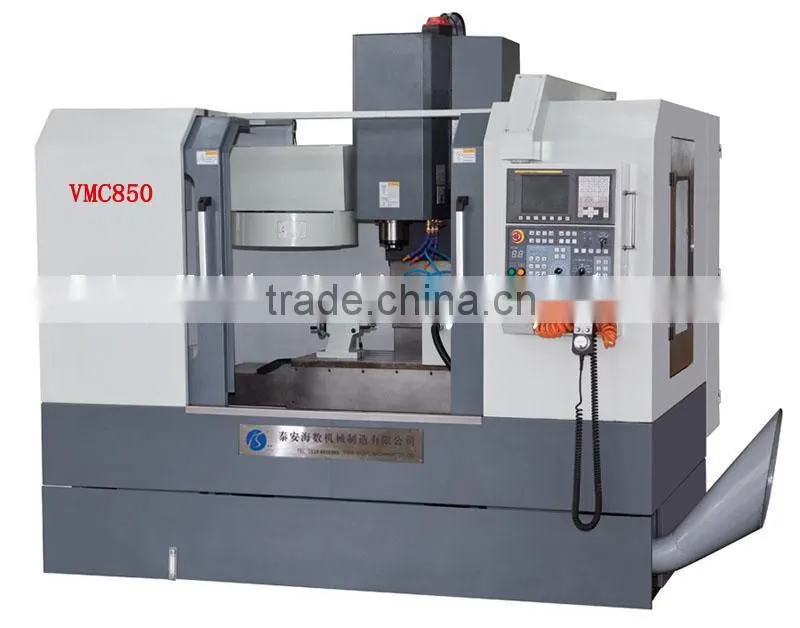

centro de mecanizado VMC850
1. Specifications
Item |
Contents |
Units |
Specifications |
Table |
Table size |
mm |
1000×500 |
Number/Width/Distance of T-slot |
mm |
5-18-100 |
|
Max. load of table |
kg |
500 |
|
Travel |
Table travel(X,Y,Z) |
mm |
850×500×500 |
Distance from spindle nose to table surface |
mm |
150~650 |
|
Distance from spindle axis to column guideway |
mm |
560 |
|
Feed |
Rapid feed speed(X,Y,Z) |
m/min |
30/30/24 |
Feed speed(X,Y,Z) |
mm/min |
10~10000 |
|
Spindle |
Taper of spindle |
|
BT40 |
Spindle speed range |
r/min |
40~6000 |
|
Spindle motor power |
kw |
(Ac servo)7.5 |
|
Accuracy |
Positioning accuracy |
mm |
±0.015 |
Repeat positioning accuracy |
mm |
±0.0075 |
|
Tool |
Tool magazine capability |
|
16 |
Max.weight of tool |
kg |
8 |
|
Max.dimension of tool |
mm |
φ130×300 |
|
Overrall |
L×W×H |
mm |
2500×2600×2300 |
Weight |
Net weight |
kg |
4750 |
2. Main configuration
Standard:
CNC system: GSK25i servo system.
Spindle: Taiwan's high speed,precision spindle unit.
Tool magazine: Taiwan Turntable Style Tool Magazine,16tools
Ball screw: Taiwan's precision ball screw.
protection: full outer stainless steel inner defense and protection.
Optional: FANUC 0i mateMD or Siemens 828D.
3.machine’s working condition and others
Voltage:380V±10% 50Hz±1%
Temperature:-10 ~ 40°C humidity:≤80% air pressure:0.6Mpa
Machine lubricating oil: summer 32# winter 40#
