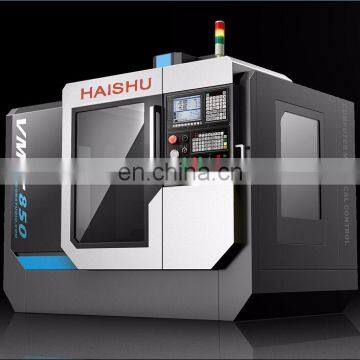

Machining Center VMC850 5-Axis Diamond Cutting Digitising Probe

FOB Price

US$ 40,000 - 70,000 / Set

1 Set(Min. Order)

Port Qingdao /Tianjin/shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HaiShu		Place of Origin	Shandong, China
After-sales Service Provided	Engineers available to service machinery overseas		Condition	New

Packaging Details

machining center VMC850 5-Axis diamond cutting Digitising Probe">standard wooden box
machining center VMC850 5-Axis diamond cutting Digitising Probe

Product Description

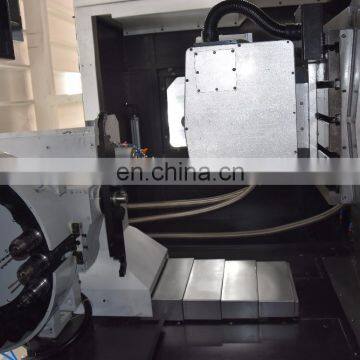

Detailed Images

certificates

SPECIFICATION

Item	Detail	Unit	parameter
Stroke	Moving range X,Y,Z	mm	850×450×500
	Nose to a rotary table (horizontal) distance	mm	150-650
	Spindle center to column guideway surface distance	mm	560
Feed	Fast moving speed X,Y,Z	m/min	30/30/24/min
	Cutting feed rate X,Y,Z	mm/min	10~15000mm/min
Spindle	Spindle taper		BT40
	Spindle speed	r/min	40~6000rpm
	Main motor power	kw	AC servo 7.5
	Maximum torque	nm	70
Magazine	Tool storage capacity	piece	16
	Maximum tool weight	kg	8kg
	Maximum tool dimensions	mm	φ130×300
	4 station electric tool	mm	0.008
Rotary shaft	CNC rotary table diameter	mm	φ255
	A-Axis inclination angle	°	±100°
	Center hole	mm	φ80H7
	T-slot	mm	12H7
	Turntable maximum load	Kg	Level:100; Slant:75
Accuracy	positioning accuracy	mm	X/Y/Z	±0.005/300
			A	50 ″
			C	20″
	Repeatability positioning accuracy X/Y/Z/A/C	mm	X/Y/Z	±0.003
			A	8″
			C	4″
Shape
size	L×W×H	mm	2500×2300×2300

	Net weight	kg	4800
	Gross weight	kg	4900

Packing & Delivery

Packaging
Size	2530×2330×2330
Weight	4.9 T
Packaging Details	The normal package is wooden box. we will use pe film for packing or pack it according to customers special request.

Our FACTORY

Products show

Company Profile

Horizontal Lathe Co., Ltd.

All the stock machines are mainly sourcing from broke factory, Auctions from China Government, China Custom, also European and American official auctions. All machines are in excellent condition, powered and functional. Major equipment categories are as following fyi: Machining center, Lathe, EDM, Grinder, Hobbing machine, Gear shaping machine, Boring-Mill Machine, Milling machine, Boring machine, Press, Drilling machines in brands of Mitsui Seiki, Mori Seiki, Mazak, Makino, Brother, Citizen, Wasino, Okama, Kuraki, Kitamura, Sodick, Agie, DMG, Okamoto, Mitsubishi, Daewoo, Fanuc, OKK, Toyoda, Matsuura, Yasda, Toshiba, Waida, Howa, Ikegai, Nakamura Tome, Charmilles, YCM and a lot qualified Chinese Brands.
