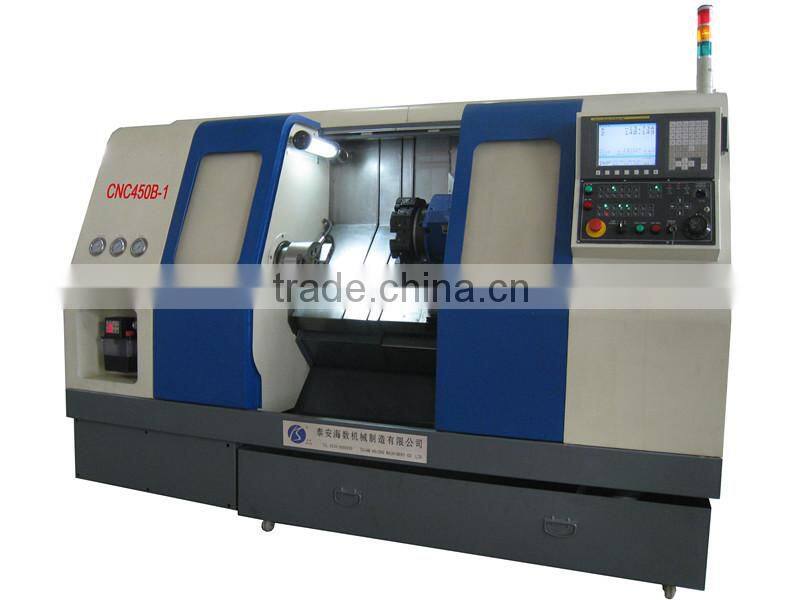

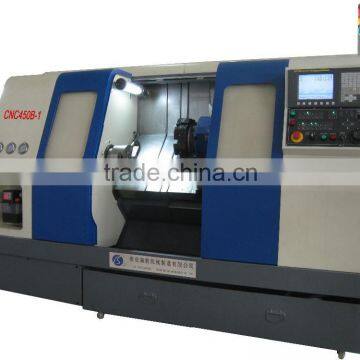

High accuracy CNC(B-1)Series slant bed CNC lathe for hot sale
No. |
Item |
Unit |
specifications |
|||||||
|
|
|
CNC150 (B-1) |
CNC250(B-1) |
CNC350 (B-1) |
CNC450 (B-1) |
CNC550 (B-1) |
|||
1 |
Max.rotation diameter on lathe’ body |
mm |
150 |
250 |
350 |
450 |
550 |
|||
2 |
piece lengt |
mm |
750/1000/1500 |
|||||||
3 |
Max.turning diameter |
mm |
100 |
200 |
300 |
400 |
500 |
|||
4 |
Spindle nose type and code |
mm |
A6 |
A6 |
A8 |
A8 |
A12 |
|||
5 |
Hydraulic chuck |
mm |
Φ80 (4") |
φ160 (6") |
φ200 (8") |
φ250 (10") |
φ300 (12") |
|||
6 |
Front spindle bore taper |
|
1:20 |
|||||||
7 |
Spindle bore |
mm |
38 |
40 |
60 |
60 |
75 |
|||
8 |
Spindle form |
|
Programmable three gears automatic hydraulic speed change |
|||||||
9 |
Spindle frequency control speed range |
rpm |
20-3000 |
|||||||
10 |
X/Z Rapid traverse |
mm/min |
20000 |
|||||||
11 |
Main servo motor power |
kW |
3.7 |
5.5 |
7.5 |
11 |
15 |
|||
12 |
X/Z-axis motor max.torque |
N.m |
6 |
10 |
10 |
10 |
15 |
|||
13 |
Power specifications |
V |
380±10%. 50Hz±1Hz |
|||||||
14 |
Turret transfer time (one station) |
s |
1.6(12) |
|||||||
15 |
Turret transfer repeat positioning accuracy |
|
0.005" |
|||||||
16 |
X-axis travel |
mm |
100 |
150 |
200 |
300 |
350 |
|||
17 |
Z-axis travel |
mm |
1100/1350/1850 |
|||||||
18 |
B-axis travel |
mm |
1100/1350/1850 |
|||||||
19 |
Hydraulic turret form |
|
Horizontal 8-station servo power turret |
Horizontal 12-station servo power turret |
||||||
20 |
Tailstock sleeve diameter/ travel |
mm |
45/100 |
50/100 |
65/100 |
70/100 |
80/100 |
|||
21 |
Tailstock tapered bore taper |
Morse |
3# |
4# |
4# |
4# |
5# |
|||
22 |
Tailstock form (programming optional) |
|
Electric drive |
|||||||
23 |
Tailstock sleeve form |
|
Hydraulic drive |
|||||||
24 |
Knife handle size |
mm |
16×16 |
20×20 |
20×20 |
25×25 |
25×25 |
|||
25 |
Net weight |
kg |
3000 |
3500 |
4200 |
5000 |
6200 |
|||
26 |
Size(L×W×H) |
mm |
2700/3000/3500×1650×1900 |
|||||||
Standard configuration:
CNC system: GSK980TDc
Spindle 3-gears frequency control speed
hydraulic center solid chuck
Horizontal 12-station hydraulic turret
3-axis hard rail
Electric tailstock,hydraulic sleeve
Turning cooling system
Automatic lubrication system
Whole protection system
Select Configuration:
CNC system : SYNTEC , Fanuc systems, Siemens system
Servo spindle unit
Hydraulic hollow chuck
3-axis line rail
Programming electric tailstock
Automatic feeder
Automatic chip conveyor
Automatic pick pieces equipment
Automatic protective door
Loading and unloading robots
standard export packing
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
3.6.Customized or special design is welcome.
Taian Haishu Machinery Co., Ltd. is a modern High-tech enterprise integrating design, manufacture and sale. Our company has two business departments: one is CNC department whose leading products are CNC Lathes, machining centers and other products and the other is test bench equipment department whose leading products are fuel injection pump test stands, High-pressure common rail injection system test benches, etc.
Our company has a professional technology team of product design/development and software development/application. Our team adopts 3-dimensional CAD computer-aided design equipment and PDM document management for equipment automation and management informatization. Our company passed ISO9001:2008 international quality system authentication. Our company has been awarded many honorary titles, such as "New Hi-Tech Enterprise". Our products have been widely used in automotive industry, military equipment, scientific research and universities' labs.
With high quality and innovative technology, our products always rank at the forefront among other similar products. Meanwhile, our products win great popularity not only in domestic markets but also in overseas markets.
