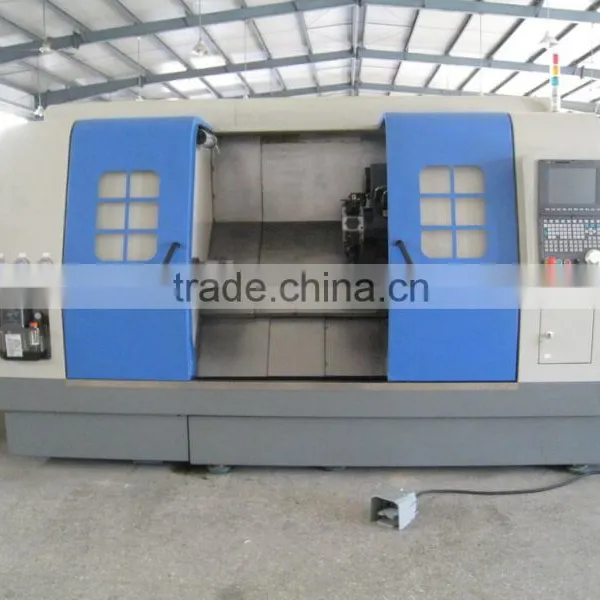

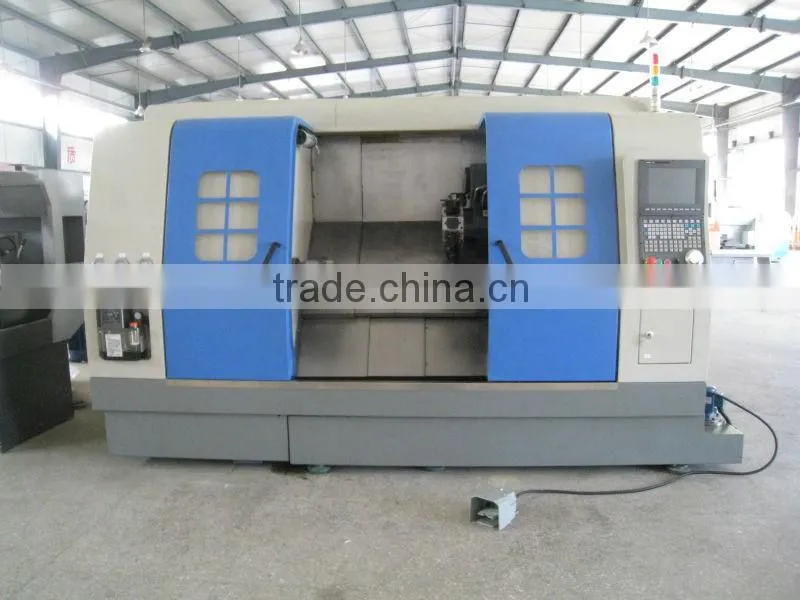

Help CenterCNC550A Cnc Slant Bed Cnc Lathe Turning Center With Double Spindles
Related Products
-
CNC350A Cnc Slant Bed Turning Haas Cnc Lathe Live ToolingUS$ 5,000 - 110,000MOQ: 1 Set -
CNC450T Twin-spindle Double Turret Cnc Lathe MachineUS$ 10,000 - 200,000MOQ: 1 Set
-
CNC250A CNC Lathe With Two Spindles CNC Turning Milling Composite Machining Center for Hot SaleUS$ 30,000 - 85,000MOQ: 1 Set
-
CNC350T Double Spindle Inclined Bed Cnc Lathe Machine With Multi FunctionsUS$ 20,000 - 8,500,000MOQ: 1 Set
-
CNC450B 6 Axis Custom Cnc Machine Metal Turning CenterUS$ 5,000 - 85,000MOQ: 1 Set
Main technical parameters:
No. |
Item |
Unit |
Technical parameters |
||||
CNC550A | |||||||
1 |
Maximum turning diameter on lathe’ body |
mm |
550 |
||||
2 |
Maximum workpiece length |
mm |
750/1000/1500 |
||||
3 |
Maximum turning diameter |
mm |
500 |
||||
4 |
Spindle nose type and code |
mm |
A8 |
||||
5 |
Hydraulic chuck |
mm |
300/200mm |
||||
6 |
Front spindle bore taper |
1:20 |
|||||
7 |
Spindle bore |
mm |
75 |
||||
8 |
Maximum load-bearing chucked components |
kg |
60 |
||||
9 |
2 - servo spindle motor speed |
mm/min |
0-4000 |
||||
10 |
Rapid traverse X / Z |
mm/min |
40000 |
||||
11 |
CS1; CS2 main servo motor power |
kW |
15 |
||||
12 |
X servo motor maximum torque |
N.m |
15 |
||||
13 |
Z, Y servo motor maximum torque |
N.m |
15 |
||||
14 |
Power Specifications |
v |
380±10%. 50Hz±1Hz |
||||
15 |
Carrier transfer time (one station) |
s |
1.6(Horizontal 12) |
||||
16 |
Carrier transfer repeat positioning accuracy |
0.005" |
|||||
17 |
X-axis travel |
mm |
350 |
||||
18 |
Z-axis travel |
mm |
1100/13501850 |
||||
19 |
B-axis(sub-spindle) travel |
mm |
1400/1650/2150 |
||||
21 |
Biaxial dynamic docking concentricity |
mm |
0.005 |
||||
22 |
Hydraulic servo turret form |
Horizontal 12-station power turret |
|||||
23 |
Knife handle size |
mm |
25*25 |
||||
24 |
Net weight |
kg |
7500kg |
||||
25 |
Size(L×W×H) |
mm |
3750*1800*2000 |
||||
Standard configuration:

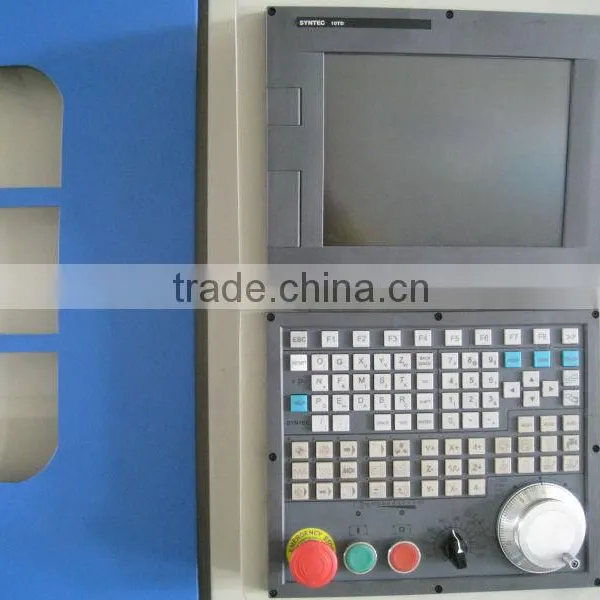

1.Taiwan control system
2.Hydraulic solid chuck
3.Cutting cooling system
4.X.Z axis linear guide
5.The spindle unit and motor

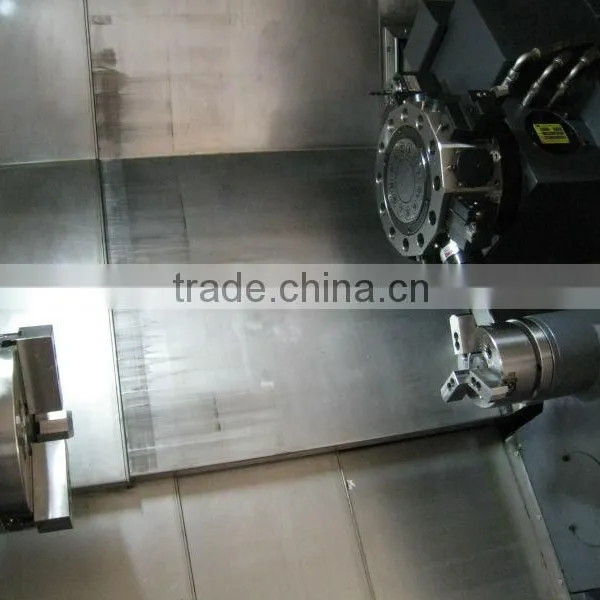

6.Horizontal 12 station servo turret
7.BearingNSK
8.Fully enclosed protection system
If you need more cnc turning center machine informations, contact with me:
Sample service,customized service,best and total after-sales service , IWS!
engineer provide installment and training freely!
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine expect of CNC system, which guarantee is threeyears
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
certificaton
Our machine through the ISO, EU CE certification

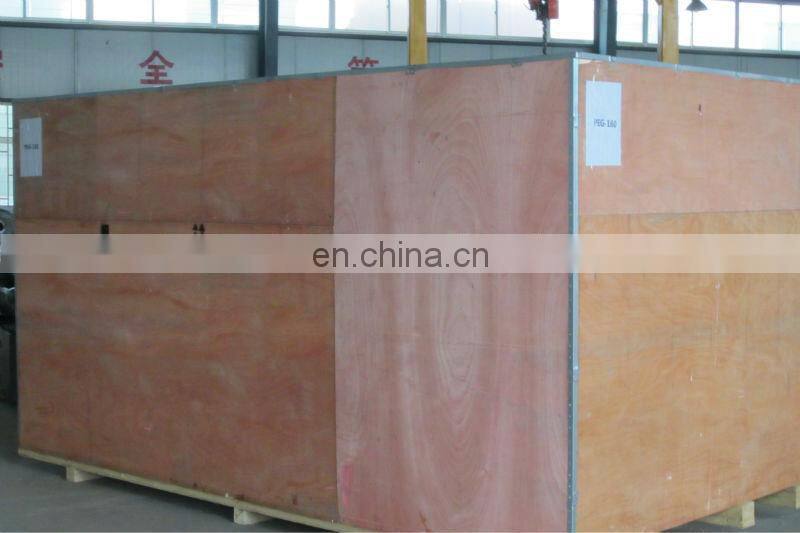

Packing standard: standard exported package case, composite material Fumigation-free packing
