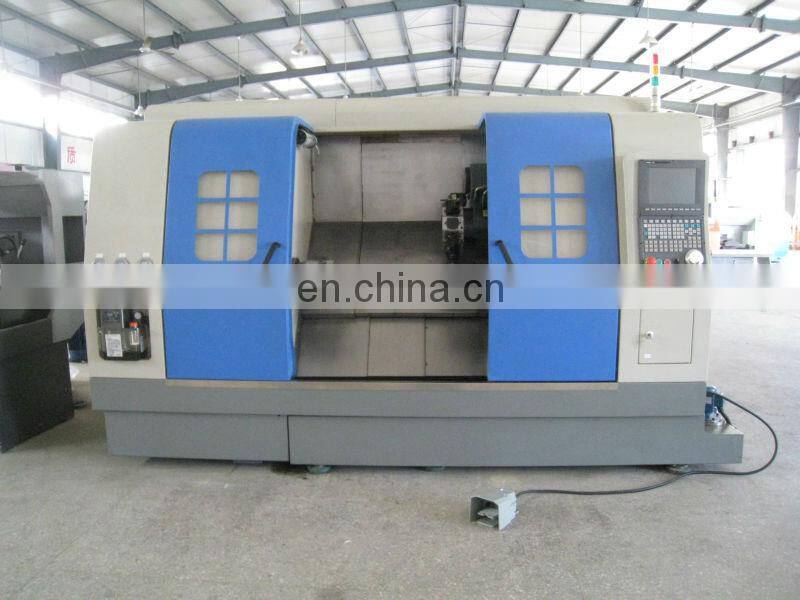

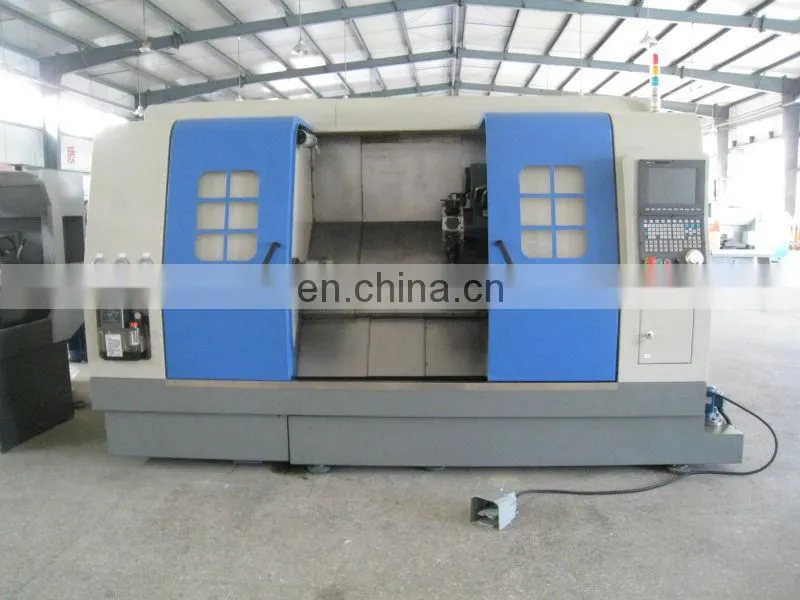

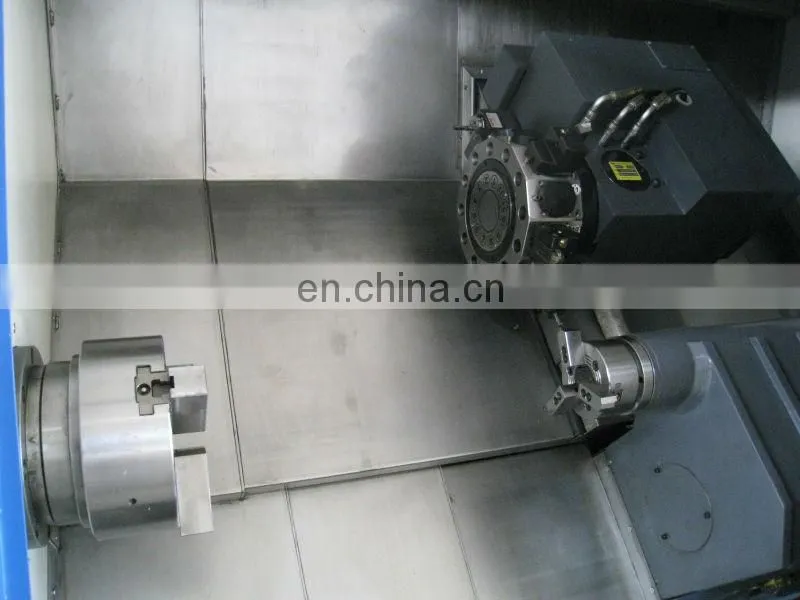

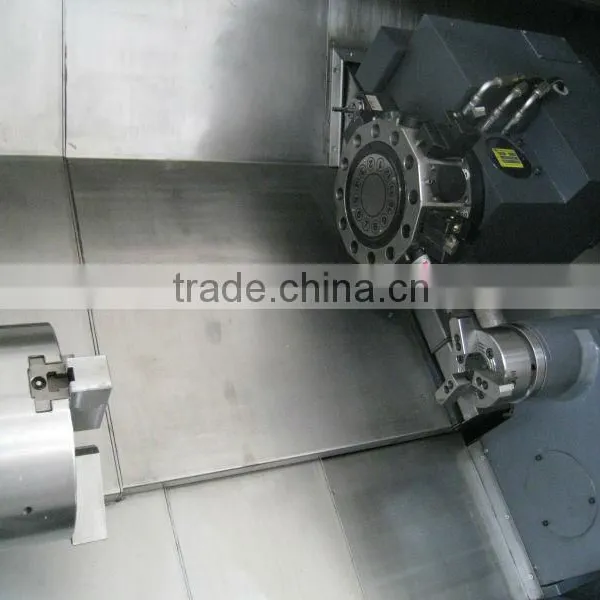

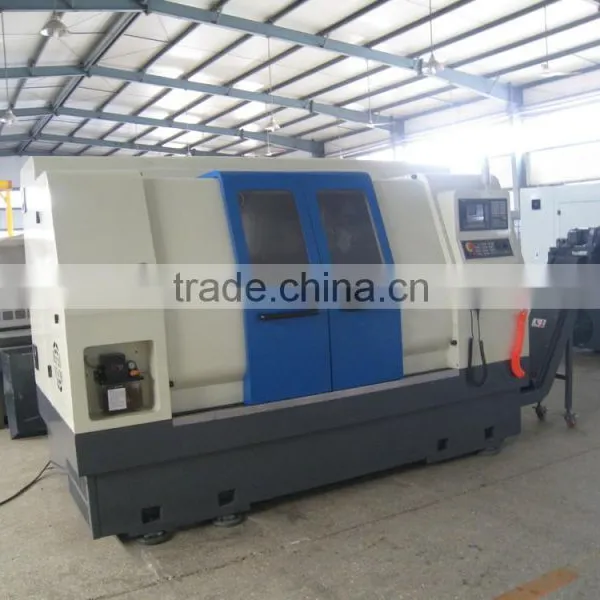

CNC350A cnc slant bed turning haas cnc lathe live tooling
No. |
Item |
Unit |
specifications |
CNC350A | |||
1 |
Max.rotation diameter on lathe’ body |
mm |
350 |
2 |
piece lengt |
mm |
750/1000/1500 |
3 |
Max.turning diameter |
mm |
300 |
4 |
Spindle nose type and code |
mm |
A8 |
5 |
Hydraulic chuck1 |
mm |
φ200(8") |
6 |
Hydraulic chuck2 |
mm |
Φ135(5") |
7 |
Front spindle bore taper |
|
1:20 |
8 |
Spindle bore |
mm |
50 |
9 |
2- Servo spindle speed range |
rpm |
0-4000 |
10 |
X/Z/B Rapid traverse |
mm/min |
40000 |
11 |
Cs1,Cs2 main servo motor power |
kW |
7.5 |
12 |
C-axis(Turret power axis) motor power |
kw |
3.7 |
13 |
X/Z-axis motor max.torque |
N.m |
10 |
14 |
Y-axis travel(optional) |
mm |
+35/-35 |
15 |
B-axis(sub-spindle) motor max.torque |
N.m |
15 |
16 |
Power specifications |
v |
380±10%. 50Hz±1Hz |
17 |
Turret transfer time (one station) |
s |
1.6(12) |
18 |
Turret transfer repeat positioning accuracy |
mm |
0.005" |
19 |
X-axis travel |
mm |
200 |
20 |
Z-axis travel |
mm |
1100/1350/1850 |
21 |
B-axis (sub-spindle) travel |
mm |
1400/1650/2150 |
22 |
C-axis(Turret power axis) max.speed |
rpm |
4000 |
23 |
Biaxial dynamic docking concentricity |
mm |
0.005 |
24 |
Ydraulic servo turret form |
|
Horizontal 12-station servo power turret |
25 |
Turret cylinder clamping force |
kg |
4240 |
26 |
Turret hydraulic power source |
kg/cm² |
40 |
27 |
Power tool holder specification |
|
VDI40 DIN5480 |
28 |
Knife handle size |
mm |
20×20 |
29 |
Net weight |
kg |
5000 |
30 |
Size(L×W×H) |
mm |
2700/3000/3500×1650×1900 |
Standrd configurations:

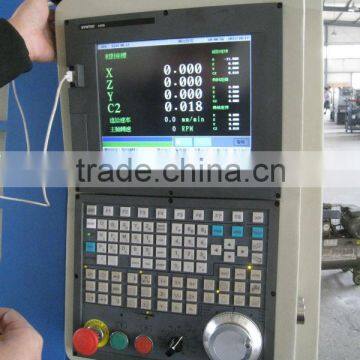

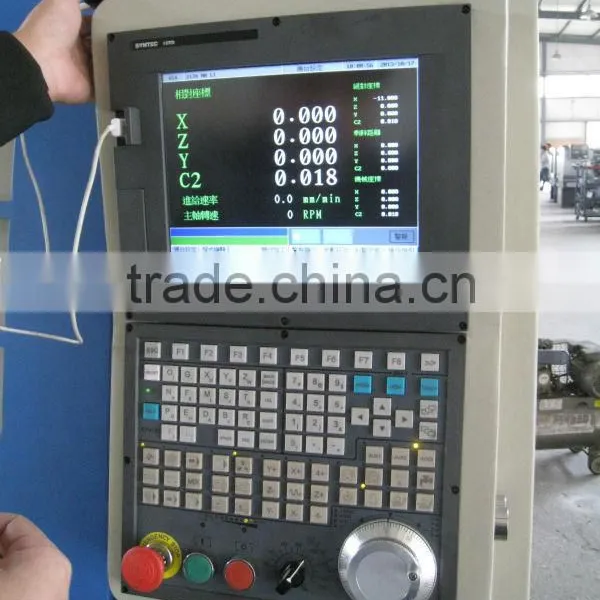

1-GSK980TDc controllers sytem
2-Servo spindle unit
3-Hydraulic solid chuck
4-Horizontal 12 hydraulic turret
5-Three axis linear guide
6-Turning coolant system
7-Auto lubrication system
8-Whole protection door
.Optional Accessories
.Siemens 802D
. Fanuc 0i-mate TD
. NSK spindle bearing
. 6 ,8 ,12 position turret or gang-type tool carrier
.Hydraulic chuck
.Penumatic chuck
.Pneumatic tailstock
.Hydraulic tailstock
. CNC system operation panel in the left or the right equipment
