T8014A T8016A e Horizontal/Vertical Cylinder Boring Machine
US$ 1,100 - 1,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WMT
Place of Origin:
Anhui, China
Model Number:
T8014A T8016A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C9335 Brake Disc Lathe Machine With CE StandardUS$ 950 - 1,200MOQ: 1 Set -
T8210D Con-rod Bushing Boring Machine for Engine RebuildUS$ 6,000 - 7,000MOQ: 1 Set
-
Vertical Cylinder Boring Machine T807 With Small SizeUS$ 800 - 1,000MOQ: 1 Set
-
T8014A and T8016A Cylinder Boring Machine With CE StandardUS$ 1,250 - 1,800MOQ: 1 Set
-
Vertical Cylinder Honing Machine 3MB9808 With Manual and CE StandardUS$ 2,000 - 2,500MOQ: 1 Set
Brand Name
WMT
Place of Origin
Anhui, China
Model Number
T8014A T8016A
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Weight
62KGS
Dimension(L*W*H)
320x330x850 mm
Production Capacity
100set/month
Voltage
220V
Condition
New
Power(W)
0.37KW
CNC or Not
Normal
Features:

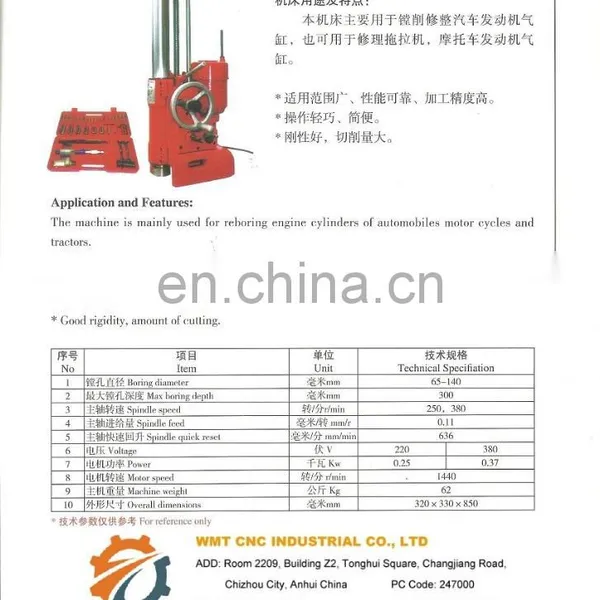

The boring machine is mainly used for reboring engine cylinders of motor cycles, automobiles and middle & small-tractors.
Model |
T8014A |
T8016A |
Boring diameter |
65 – 140 mm |
80 – 165 mm |
Max. boring depth |
300 mm |
400 mm |
Spindle speed |
250, 380 r/min |
200, 300 r/min |
Spindle feed |
0.11 mm/r |
0.12 mm/r |
Spindle quick reset |
636 mm/sec |
780 mm/sec |
Overall dimensions |
320x330x850 mm |
360x345x1100 mm |
Machine weight |
62 kg |
85 kg |

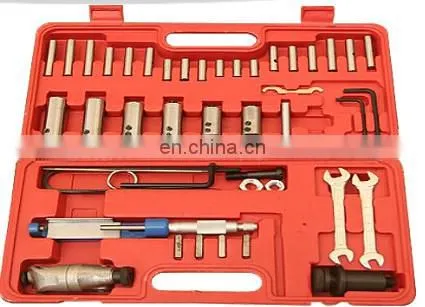

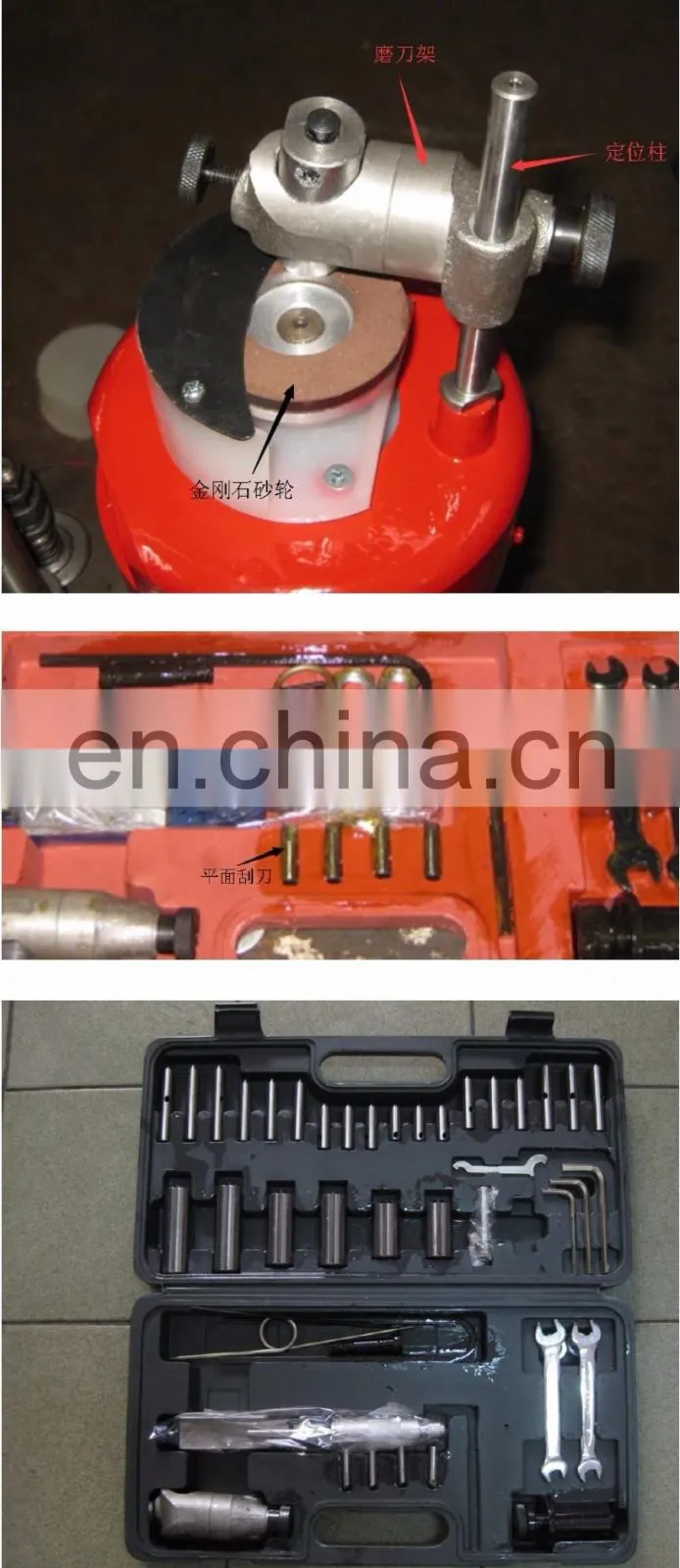

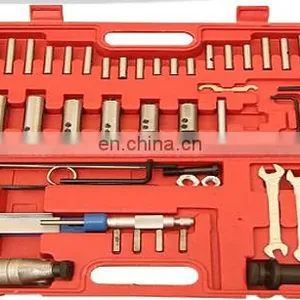

Standard accessories:
Tool grinding bracket
Diamond wheel
Tool Box with tools
