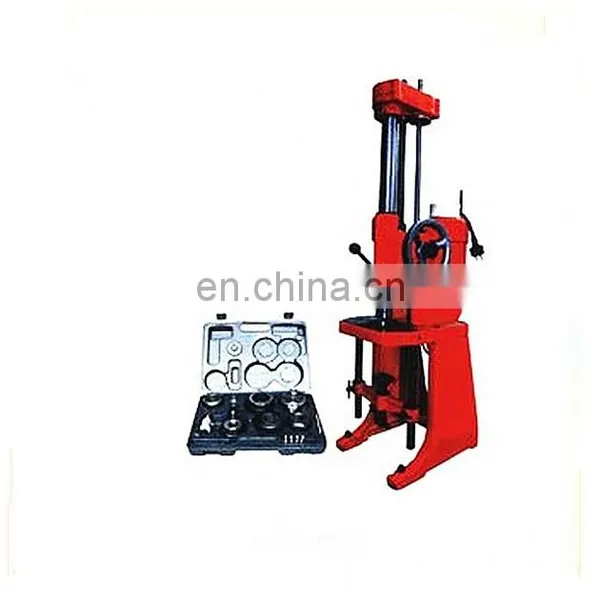

Vertical Cylinder Boring Machine T807 With Small Size
US$ 800 - 1,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WMT
Place of Origin:
Anhui, China
Model Number:
T806,T806A,T807,
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
T8014A and T8016A Cylinder Boring Machine With CE StandardUS$ 1,250 - 1,800MOQ: 1 Set -
Vertical Cylinder Honing Machine 3MB9808 With Manual and CE StandardUS$ 2,000 - 2,500MOQ: 1 Set
-
Vertical Honing Machine 3MB9817/MAX 170mm V-bloks Fixture With CE StandardUS$ 4,000 - 5,500MOQ: 1 Set
-
T8014A T8016A Factory Sale Cheap Cylinder Boring Machine With CE StandardUS$ 1,000 - 1,500MOQ: 1 Set
-
C9335 Brake Disc Lathe / Disc Drum Lathe Cutting Machine With CEUS$ 1100.00 - 15.00MOQ: 1 Set
Brand Name
WMT
Place of Origin
Anhui, China
Model Number
T806,T806A,T807,
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Weight
According to model number
Dimension(L*W*H)
According to model number
Production Capacity
100set/month
Voltage
According to model number
Condition
New
Power(W)
According to model number
CNC or Not
Normal
Features:
Cylinder boring machine:
1) The machine is mainly used for reboring engine cylinders of automobiles motor cycles and tractors.
2) Reliable performance, widely use, processing accuracy high productivity.
3) Easy and flexible operation.
4) Good rigidity, amount of cutting.
Model |
Boring diameter |
Max.boring depth |
Spindle speed |
Spindle feed |
Spindle quick reset |
T806 |
Φ39-Φ60 mm |
160 mm |
486 r/min |
0.09 mm/r |
Manual |
T806A |
Φ45-Φ80 mm |
170 mm |
486 r/min |
0.09 mm/r |
Manual |
T807 |
Φ39-Φ70 mm |
160 mm |
486 r/min |
0.09 mm/r |
Manual |
Model |
Voltage |
Motor Output |
Motor speed |
Overall dimensions |
Machine weight |
||
T806 |
220 V |
380 V |
0.25 Kw |
1440 r/min |
330×400×1080 mm |
80 kg |
|
T806A |
220 V |
380 V |
0.25 Kw |
1440 r/min |
330×400×1080 mm |
85 kg |
|
T807 |
220 V |
380 V |
0.25 Kw |
1440 r/min |
330×400×1080 mm |
81 kg |
|
