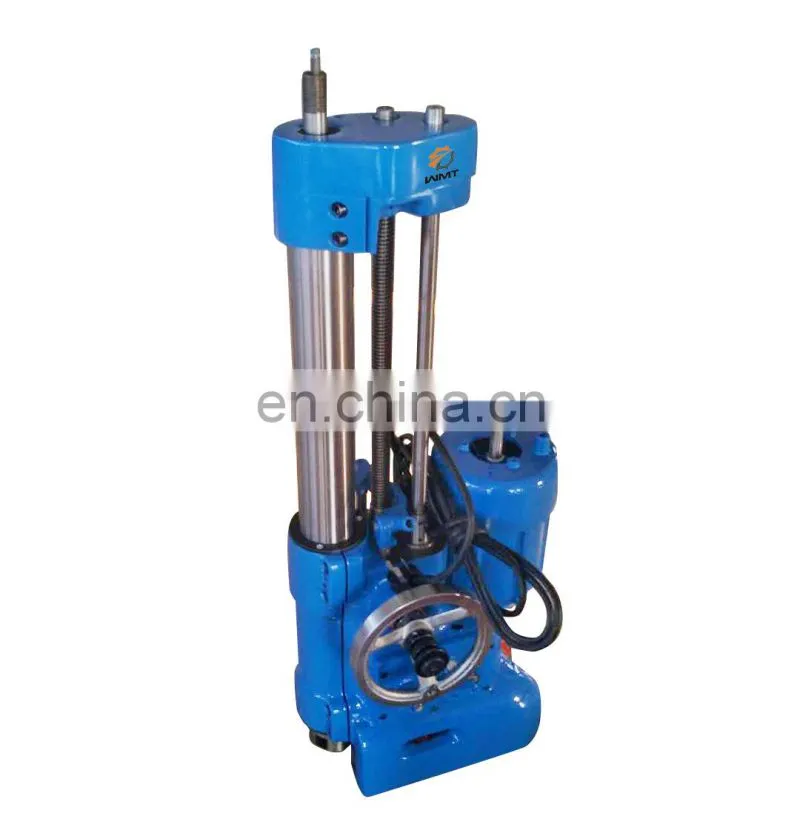

T8014A and T8016A Cylinder Boring Machine With CE Standard

T8014A and T8016A Cylinder Boring Machine With CE Standard thumbnail-1
T8014A and T8016A Cylinder Boring Machine With CE Standard thumbnail-2
T8014A and T8016A Cylinder Boring Machine With CE Standard thumbnail-3
T8014A and T8016A Cylinder Boring Machine With CE Standard photo-1

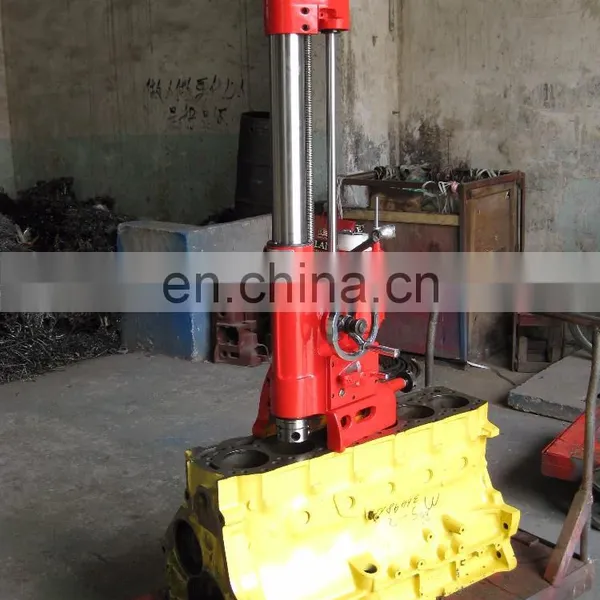

T8014A and T8016A Cylinder Boring Machine With CE Standard photo-2

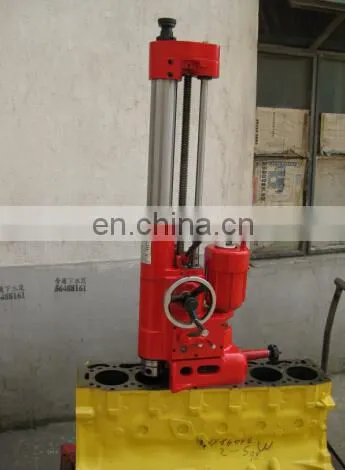

T8014A and T8016A Cylinder Boring Machine With CE Standard photo-3
US$ 1,250 - 1,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WMT
Place of Origin:
Anhui, China
Model Number:
T8014A T8016A
Contact Supplier Request Quote Chat Now
Gantry Machining Center Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WMT
Place of Origin Anhui, China
Model Number T8014A T8016A
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Weight 62KGS
Dimension(L*W*H) 320x330x850 mm
Production Capacity 100set/month
Voltage 220V
Condition New
Power(W) 0.37KW
CNC or Not Normal
Product Description



Features:



The boring machine is mainly used for reboring engine cylinders of motor cycles, automobiles and middle & small-tractors.



Model

T8014A

T8016A

Boring diameter

65 – 140 mm

80 – 165 mm

Max. boring depth

300 mm

400 mm

Spindle speed

250, 380 r/min

200, 300 r/min

Spindle feed

0.11 mm/r

0.12 mm/r

Spindle quick reset

636 mm/sec

780 mm/sec

Overall dimensions

320x330x850 mm

360x345x1100 mm

Machine weight

62 kg

85 kg



 T8014A and T8016A Cylinder boring machine with CE Standard







Standard Accessories:





T8014A and T8016A Cylinder boring machine with CE Standard



T8014A and T8016A Cylinder boring machine with CE Standard



 Located in Anhui Chizhou High-tech Development Zone, Chizhou WMT Group operates two companies. One is Chizhou WMT CNC Machinery Co. Ltd and the other is Chizhou WMT CNC Industrial Co., Ltd. The group deals in CNC machine, milling and drilling machine, drilling machine, lathe machine and all kinds of multi purpose machines.T8014A and T8016A Cylinder boring machine with CE StandardT8014A and T8016A Cylinder boring machine with CE Standard





T8014A and T8016A Cylinder boring machine with CE Standard
