Hot Sale Vertical Honing Machine 3MB9817/MAX 170mm V-bloks Fixture With CE StandardUS$ 4,800 - 5,500MOQ: 1 Set
Features:
3MB9817 vertical honing machine is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
1.The machine table can shift of the fixture change 0°, 30°and 45°.
2.The machine table is easily up and down manually 0-180mm.
3. Reverse precision 0-0.4mm.
4.Select mesh-wire degree 0°- 90° or non-mesh-wire.
5.Reciprocating speed of up and down 0-30m/min.
6.The machine is reliable performance widely use honing, easy operation and high productivity.
7.Good rigidity, amount of cutting.
Model |
3MB9817 |
Max diameter of hole honed |
Φ35-Φ170 mm |
Max depth of hole honed |
320 mm |
Spindle speed (4 steps) |
120, 160, 225, 290 mm |
Stork (3 steps) |
35, 44, 65 s/min |
Power of main motor |
1.5 Kw |
Power of cooling pump motor |
0.125 Kw |
|
Machine working inside cavity dimensions (L x W) |
1400 x 870 mm |
Overall dimensions (L x W x H) |
1640 x 1670 x 1920 mm |
Packing dimensions (L x W x H) |
1850 x 1850 x 2150 mm |
N.W./G.W. |
1000/1200 kg |

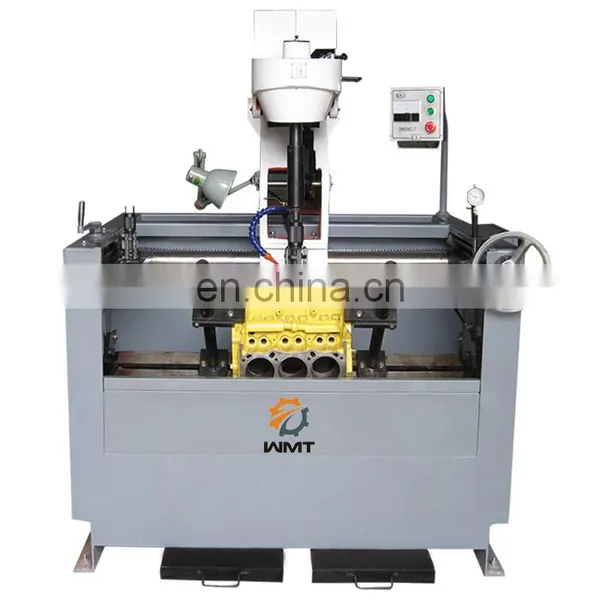

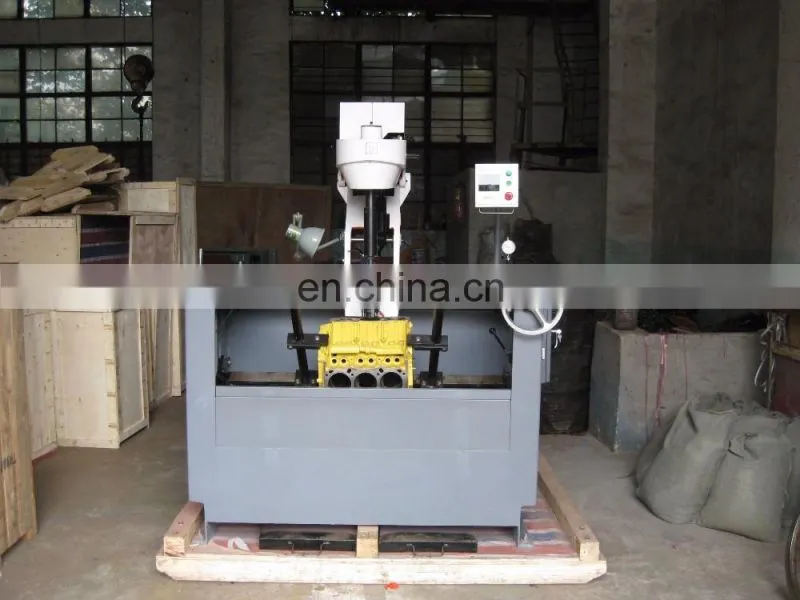

Machine pics.
Standard accessories:

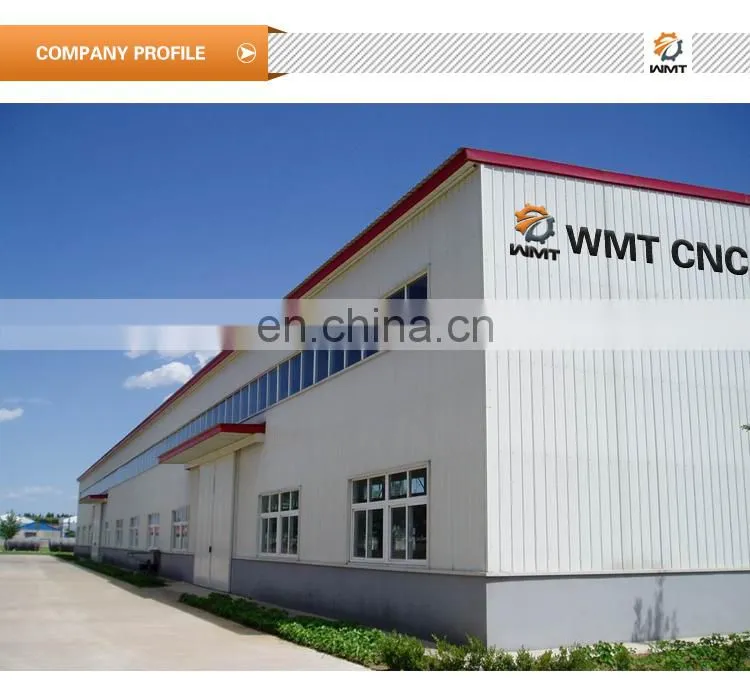

Located in Anhui Chizhou High-tech Development Zone, Chizhou WMT Group operates two companies. One is Chizhou WMT CNC Machinery Co. Ltd and the other is Chizhou WMT CNC Industrial Co., Ltd. The group deals in CNC machine, milling and drilling machine, drilling machine, lathe machine and all kinds of multi purpose machines.
