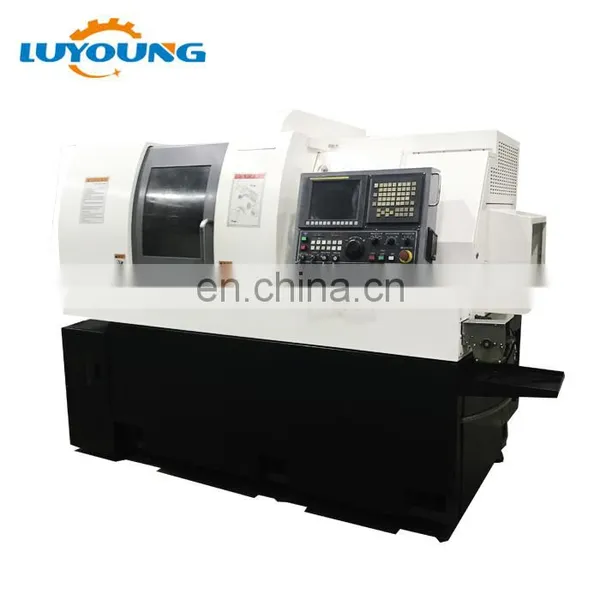

Swiss Type CNC Automatic Lathe Machine with auto feeder for Sale LY-12C
Our advantage:
- 20 years experiences in cnc lathe machine reserach and production.
- Mechanical precision of our cnc lathe machine meet or exceed international standards
- High reliability ,long lifetime to 10 years
- Friendly factory price
- One year warranty for whole machine,GSK CNC System is 3 years
- Professional engineer team to help you choose the suitable model and configuration.
- 7X24 hours telephone or online technology support for free.
The Specification for Swiss Type CNC Automatic Lathe Machine with auto feeder for Sale LY-12C

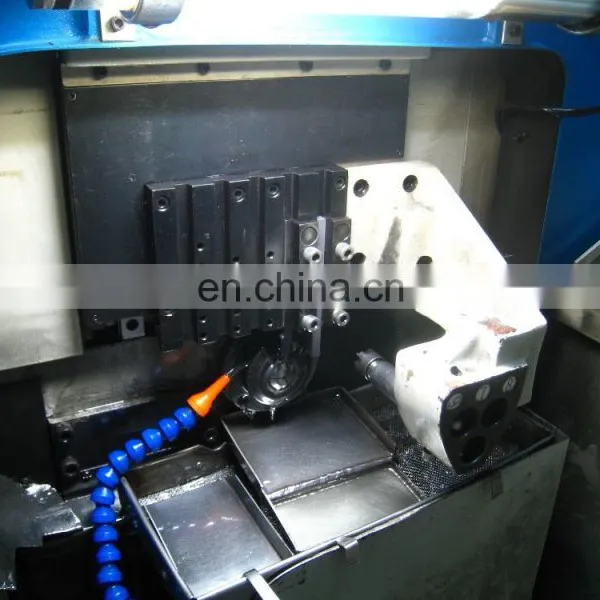

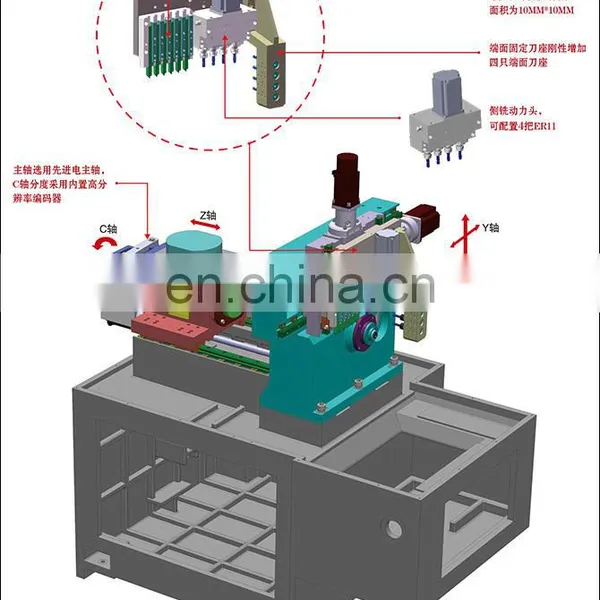

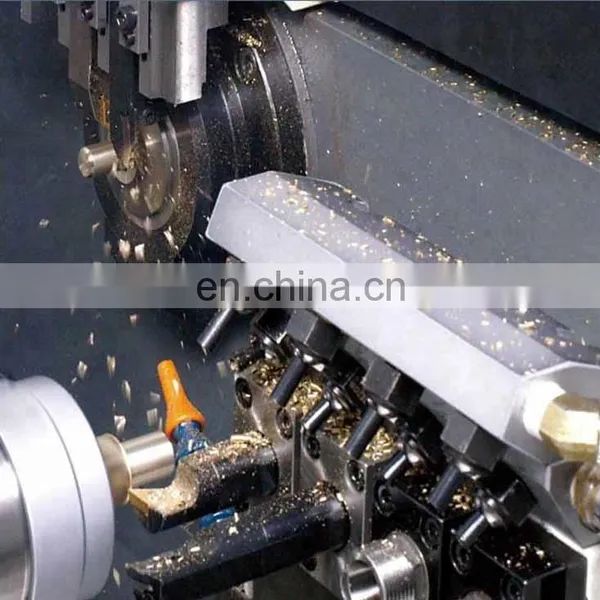

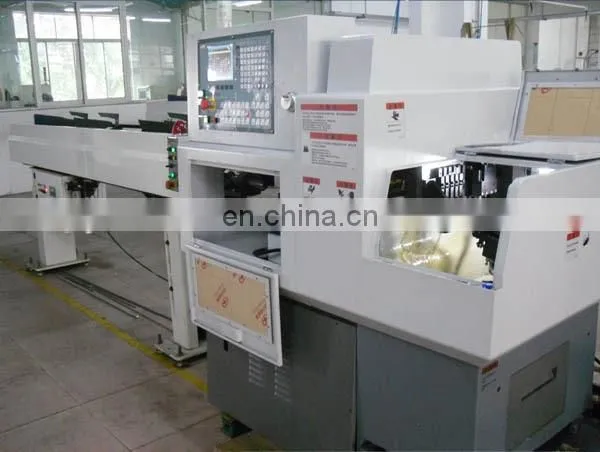

LY-12C series machine tool belongs to Swiss high-speed high-precision CNC bar lathe (CNC precision automatic lathe), and is a universal CNC machine tool which is specially designed for machining “slender-shaft” parts and “small precision” parts and features high precision and high-speed stability. Due to the adoption of Japan THK rolling splined shaft synchronous rotation device and total-travel synchronous rotation guide sleeve, 240mm materials can be fed by one-time clamping. The machine tool adopts high-speed precision electric spindle, built-in high-resolution encoder and high-intensity cast iron machine tool body, and has a high-rigidity design, with the C-axis indexing accuracy reaching 0.001°. The machine tool adopts U-shaped cutting tool arrangement, ensuring high rigidity of the system as well as high machining efficiency. The machine tool is equipped with an automatic feeding machine, to realize continuous machining, greatly improving the machining efficiency. It can be widely applied to the combined machining of slender-shaft parts and precision parts in automobiles, electronic communication, faxes, printers, medical instruments, home appliances, lockmaking and other industries.
|
Items |
LY-12C1 |
LY-12C2 |
Machining |
Bar clamping diameter of spindle mm |
2~12mm |
|
Max clamping diameter of back shaft |
120mm(240mm) |
||
Max drilling diameter of spindle |
7mm |
||
Max tapping diameter of spindle |
M8 |
||
Max drilling depth of spindle |
50mm |
||
Max drilling diameter of side milling power head |
/ |
7mm |
|
Spindle |
Spindle speed |
100~10000rpm/min |
|
Spindle indexing |
/ |
C-axi 0.001° |
|
Spindle through-hole diameter |
15mm |
||
Cutting |
Row tool quantity(10*10*150) |
8 |
6 |
Side milling rotary driven tool |
Non |
3×ER11 |
|
Side milling power head speed range |
/ |
100~6000rpm/min |
|
End milling power rotary tool |
/ |
/ |
|
End milling power head speed range |
/ |
/ |
|
End face of the fixed knife |
5×ER11 |
4×ER11 |
|
Motor |
Built-in electric spindle power |
2.2KW |
|
Rated power of X1-axis servo motor |
0.4KW |
||
Rated power of Y, Z-axis servo motor |
0.75KW |
||
Rated power of side milling power head |
/ |
0.4KW |
|
End milling power head rated power |
/ |
/ |
|
Cooling oil pump power |
0.22KW |
||
Lubricating oil pump power |
25W |
||
System |
System Model |
LNC-T568/21TA |
LNC-T568/21TB |
Controllable/compounding axis number |
4/4 |
6/4 |
|
Min unit |
0.001mm |
||
Fast reading movement speed |
32m/min(X-axi 20m/min) |
||
Program storage capacity |
1GB |
||
Stored program number |
163,480 (take 5K as one program) |
||
Liquid crystal display |
8.0" Color screen |
||
Others |
|
|
|
Receiving device |
Long and short pieces catcher |
||
Power capacity |
4.1KVA |
4.5KVA |
|
Spindle center height |
955mm |
||
Machine tool dimensions (L*W*H) |
1610*1000*1600mm |
||
Cutting fuel tank volume |
135L |
||
Air pressure |
Above 0.4MPa |
||
Machine tool net weight |
1600KG |
||
