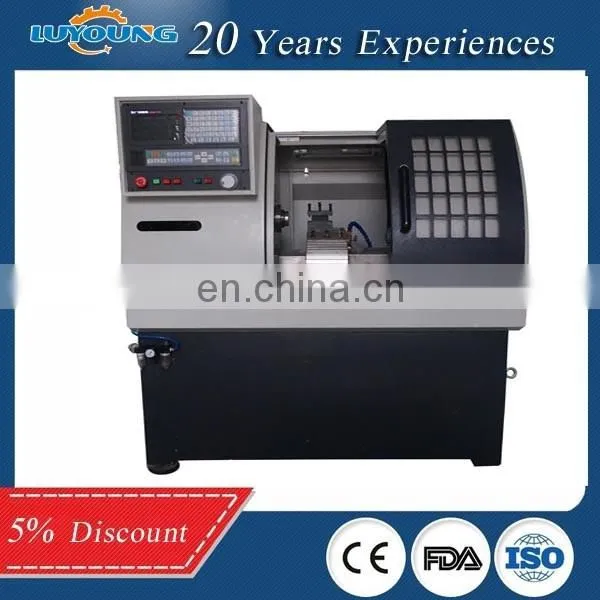

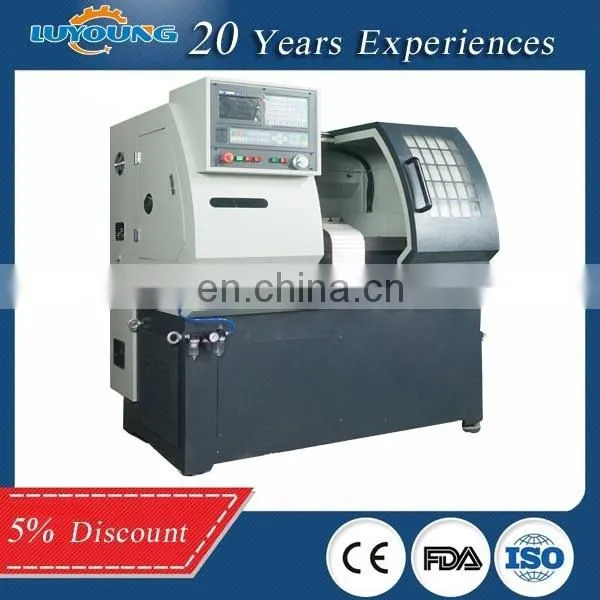

Micro cnc Lathe for Training Education Metal cnc Lathe J32
Our advantage:
- 20 years experiences in cnc lathe machine reserach and production.
- Mechanical precision of our cnc lathe machine meet or exceed international standards
- High reliability ,long lifetime to 10 years
- Friendly factory price
- One year warranty for whole machine,GSK CNC System is 3 years
- Professional engineer team to help you choose the suitable model and configuration.
- 7X24 hours telephone or online technology support for free.
The Specification for Micro cnc Lathe for Training Education Metal cnc Lathe
Model No. |
J32 |
Max. swing dia. over bed |
190 mm |
Max. swing dia. over cross slide |
80 mm |
Max. processing length |
200 mm |
Through hole dia. of speed |
38 mm |
Through hole dia. of drawing pipe |
32 mm |
Work Peice clamping way |
pneumatic spring collet |
x/z repeated position accuracy |
0.012/0.013mm |
x/z rapid feeding speed |
8/10m/min |
Spindle speed |
150-2500rpm |
Tool holder |
gang type tool post |
Main motor power |
3kw |
Dimension |
1450*1100*1600 |
Net weight |
800kg |
tailstock |
No |
Standard configurationFor Micro cnc Lathe for Training Education Metal cnc Lathe
ü GSK 928TD-L
ü Pneumatic spring collet(2pcs free)
ü Gang type tool carrier
ü Auto lubrication system
ü Lighting system
ü Cooling system
ü 380V 3 phase(if your local have special request pls let us know)
Option configuration For Micro cnc Lathe for Training Education Metal cnc Lathe :
ü 4 station electrice tool holder
ü Auto feeder system
ü Pneumatic chuck
ü Hydrualic chuck
About us
|
|
|
|
|
|
|
|
|
|
|
|
We have 20 years experiences in cnc machine export.
- According the weight of our machine,we desgin defferent package to insure the transportation safety.
- We choose famous and well-established express company to arrange the shipping,they are professional and have the ability to confirm every process work well.
Any other question,pls kindly contact with us!
Sales Manager: Bruce Yang
Skype: bruceyang688
Whatsapp:8618660852746
Wechat:18660852746
