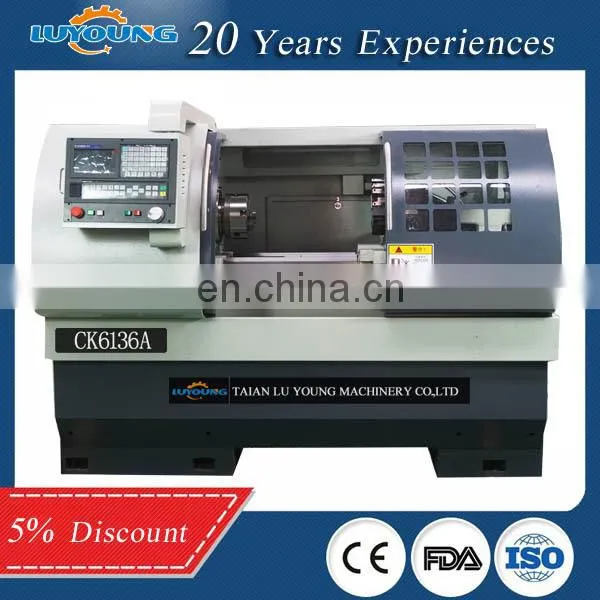

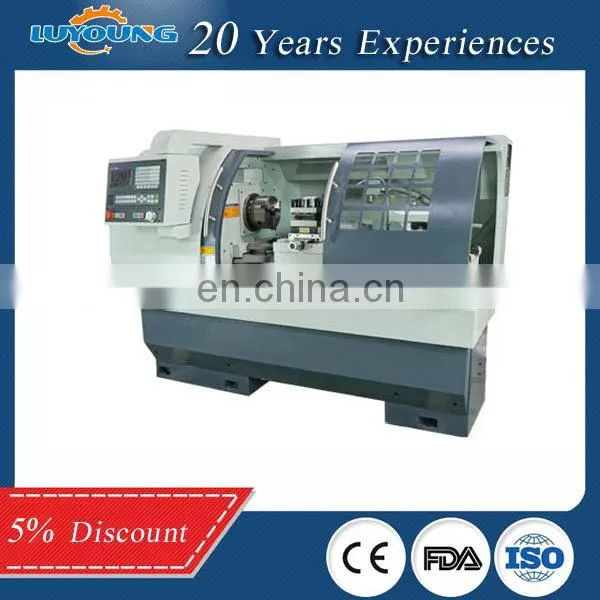

Fanuc ,Siemens control cnc lathe machine CK6136
Our advantage:
- 20 years experiences in cnc lathe machine reserach and production.
- Mechanical precision of our cnc lathe machine meet or exceed international standards
- High reliability ,long lifetime to 10 years
- Friendly factory price
- One year warranty for whole machine,GSK CNC System is 3 years
- Professional engineer team to help you choose the suitable model and configuration.
- 7X24 hours telephone or online technology support for free.

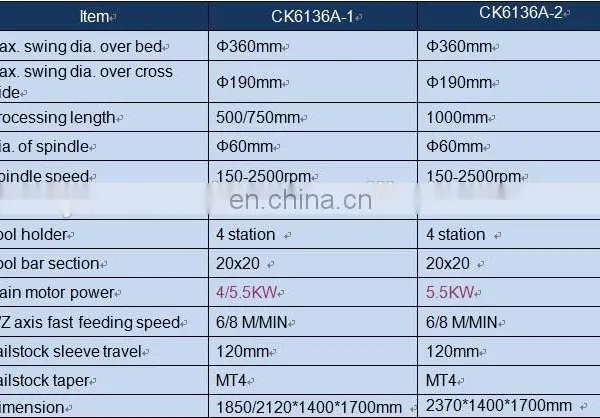

The Specification for Fanuc ,Siemens control cnc lathe machine CK6136
Item |
CK6136A-1 |
CK6136A-2 |
Max. swing dia. over bed |
Φ360mm |
Φ360mm |
Max. swing dia. over cross slide |
Φ190mm |
Φ190mm |
Processing length |
500/750mm |
1000mm |
Dia. of spindle |
Φ60mm |
Φ60mm |
Spindle speed |
150-2500rpm |
150-2500rpm |
Taper of spindle bore |
MT6 |
MT6 |
Tool holder |
4 station |
4 station |
Tool bar section |
20x20 |
20x20 |
Main motor power |
4/5.5KW |
5.5KW |
X/Z axis fast feeding speed |
6/8 M/MIN |
6/8 M/MIN |
Tailstock sleeve travel |
120mm |
120mm |
Tailstock taper |
MT4 |
MT4 |
Dimension |
1850/2120*1400*1700mm |
2370*1400*1700mm |
Standard configuration for Fanuc ,Siemens control cnc lathe machine CK6136 :
ü GSK 928TD-L
ü Manual 3 jaw chuck
ü 4 station tools carrier
ü Auto lubrication system
ü Lighting system
ü Cooling system
ü 380V 3 phase(if your local have special request pls let us know)
Option configuration Fanuc ,Siemens control cnc lathe machine CK6136 :

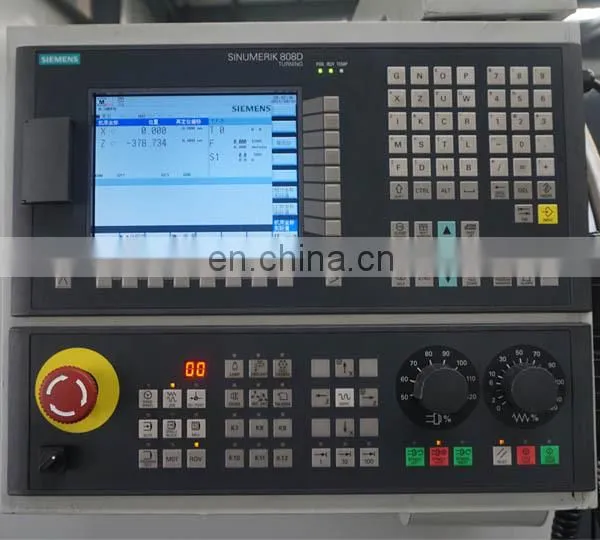

ü Siemens,Fanuc CNC Controller
ü 6 /8 station electrice tool holder
ü Auto feeder system
ü Pneumatic chuck
ü Hydraulic chuck
ü Pneumatic tailstock
ü Hydraulic tailstock
ü Chip conveyor

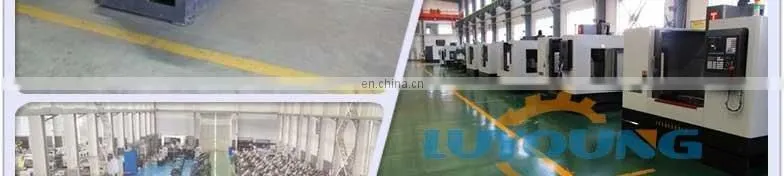

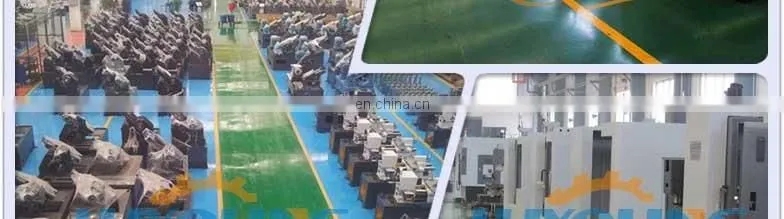

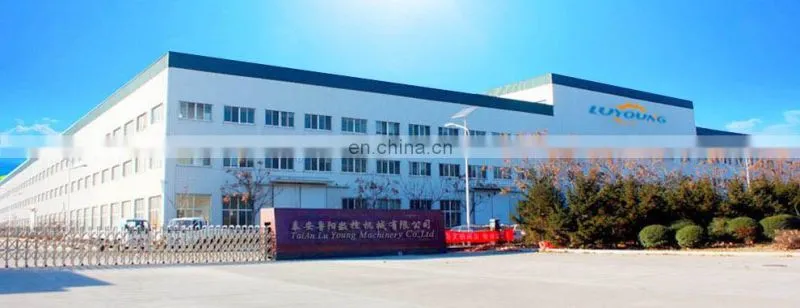

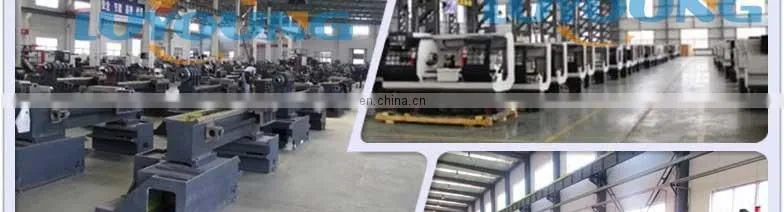

About us
|
|
|
|
|
|
|
|
|
|
|
|
We have 20 years experiences in cnc machine export.
- According the weight of our machine,we desgin defferent package to insure the transportation safety.
- We choose famous and well-established express company to arrange the shipping,they are professional and have the ability to confirm every process work well.
Any other question,pls kindly contact with us!
Sales Manager: Bruce Yang
Skype: bruceyang688
Whatsapp:8618660852746
Wechat:18660852746
