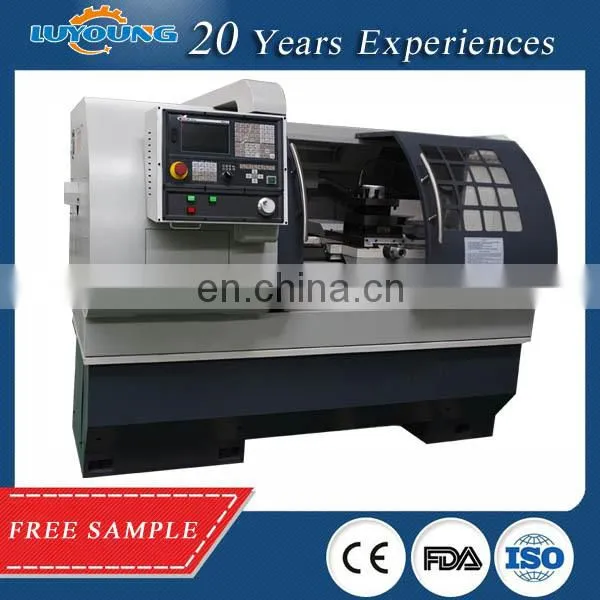

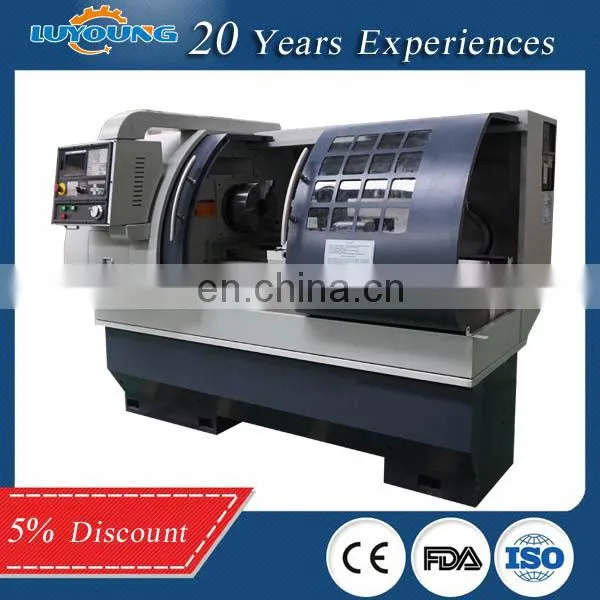

High Precision New Cnc Lathe Prices Factory Sale CE Certificate CK6140
US$ 8,500 - 11,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lu Young
Place of Origin:
Shandong, China
Model Number:
CK6140A
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Micro Cnc Lathe for Training Education Metal Cnc LatheUS$ 5,500 - 7,000MOQ: 1 Set -
High Speed 3 Axis CNC Lathe Machine With c Axis and y Axis Milling and Drilling FunctionUS$ 9,000 - 12,000MOQ: 1 Set
-
Most Popular TNC350L Linear Guidway Taiwan CNC Lathe Machine PriceUS$ 9,000 - 12,000MOQ: 1 Set
-
Hot Sale TCK420 Mini Slant Bed CNC Lathe With GSK Siemens FanucUS$ 9,000 - 12,000MOQ: 1 Set
-
Servo Motor TCK420 CNC Metal Turning Lathe CNC Lathe TurningUS$ 9,000 - 12,000MOQ: 1 Set
Brand Name
Lu Young
Place of Origin
Shandong, China
Model Number
CK6140A
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
High precision new cnc lathe prices Factory Sale CE certificate CK6140
Product Description
| Meddle CNC Lathe Machine CK6140 | ||||
| Item | CK6140A | CK6140B | ||
| Max. swing dia. over bed | Φ400mm | Φ400mm | ||
| Max. swing dia. over cross slide | Φ225mm | Φ245mm | ||
| Max. processing length(mm) | 750 | 1000 | 750 | 1000 |
| Dia. of spindle hole | Φ60mm | Φ52mm | ||
| Spindle speed | 150-2500rpm | 150~500rpm (low) 320~1600rpm (high) | ||
| spindle taper | MT6 | |||
| Tool holder | 4 station electric tool post(optional 6/8staion electric turret) | |||
| Tool bar section | 20X20 | 20X20 | ||
| Main motor power | 5.5KW | 5.5KW | ||
| X/Z axis fast feeding speed | 6/8 M/MIN | 6/8 M/MIN | ||
| X/Z axis position accuracy(mm) | 0.01/0.015 | 0.01/0.015 | ||
| X/Z-axis repeatability(mm) | 0.012/0.013 | 0.012/0.013 | ||
| Clamping | 3 Jaw Manual Chuck(optional pnematic or hydraulic chuck) | |||
| Tailstock sleeve dia. | 60 | 60 | 60 | 60 |
| Tailstock sleeve travel | 120mm | 120mm | ||
| Tailstock taper | MT4 | |||
| Dimension | 2120X1400X1700 | 2050x1400x1650 | ||
| 2370X1400X1700 | 2300X1400X1650 | |||
| Weight(kg) | 1800 | 1950 | 1850 | 2050 |
| Standard configuration: | Optinal configuration: | |||

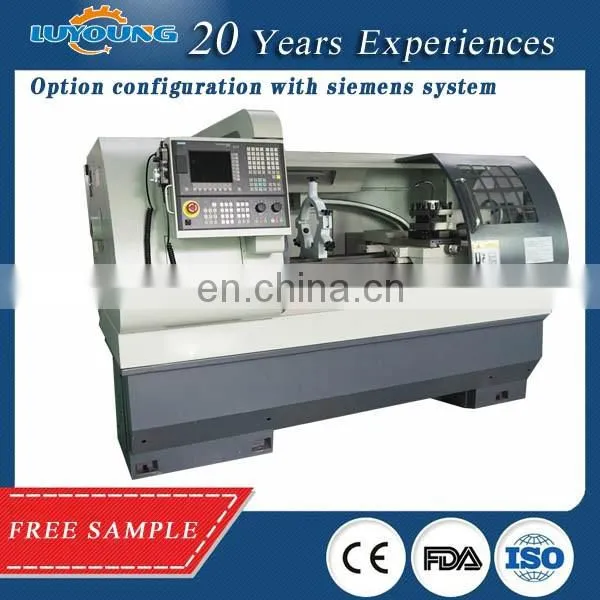

| GSK928 CNC Controller | Siemens,Fanuc cnc controller system | |||
| Servo motor for X,Z axis, Servo driven | pneumatic chuck,hydraulic chuck | |||
| 3 Jaw Manual Chuck | pneumatic tailstock,hydraulic tailstock | |||
| 4 station electric tool post | 6 staion tool turret,8staiton tool turret | |||
| Auto lubrication system | Auto feeder system | |||
| lighting system | Chip conveyor | |||
| cooling system | ||||

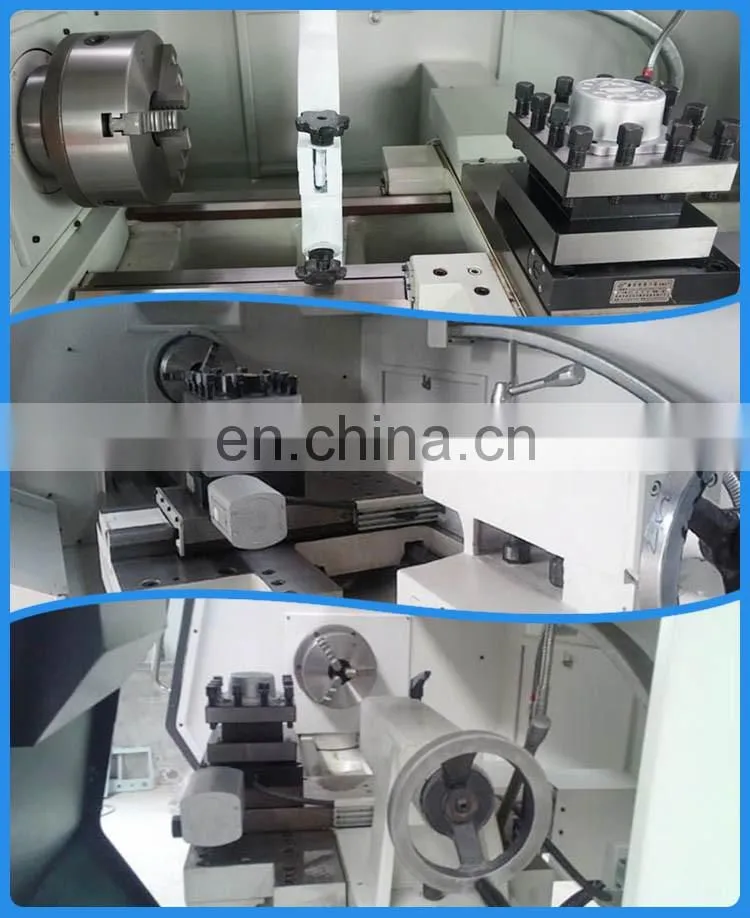

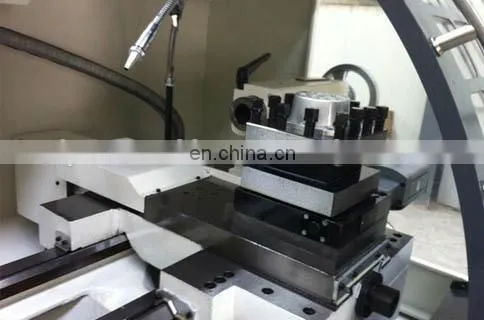

| Detail photo: | ||||
Related Products
| Meddle CNC Lathe Machine | |||||||||
|
|
Company Information
| |
| |
|
Production Capatity: CNC Lathe Machine:400 sets/year CNC Milling Machine:300 sets/year Other CNC Machine 200sets/year | |
| |

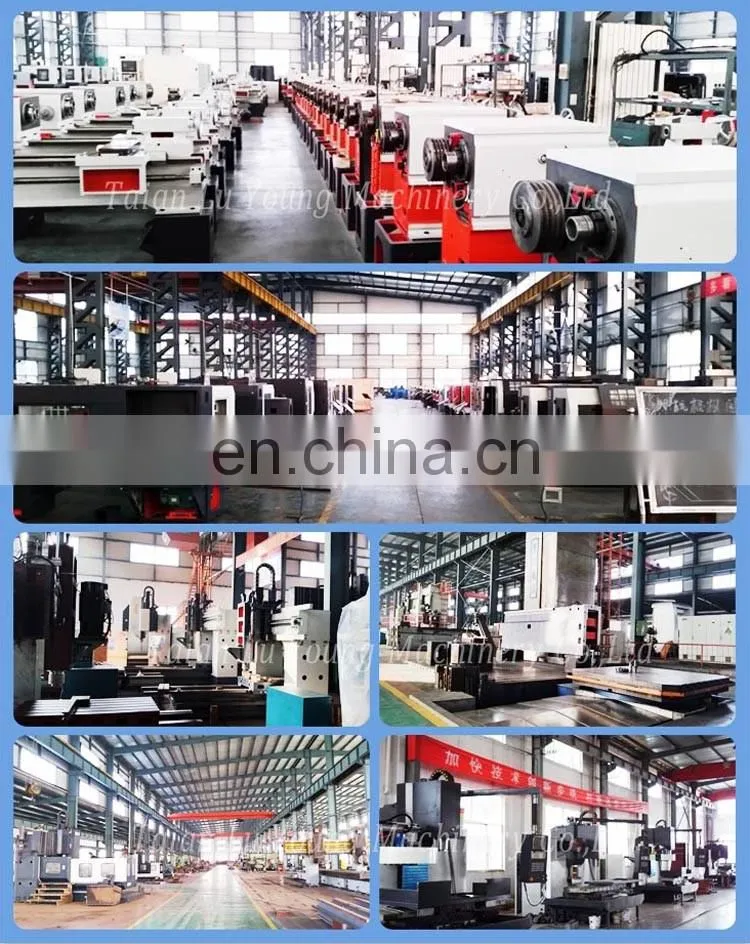

| Workshop Detail: | |
| |
|

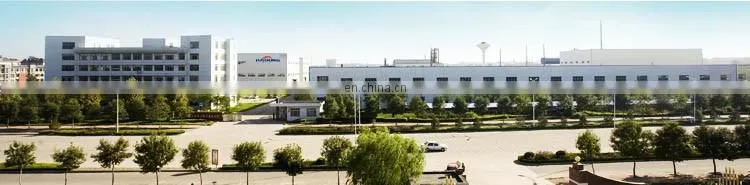

About factroy Established in 1995, covers an area of 35,000 square meters,and more than 300 workers in all. |
