Small Auto Machine CNC Lathe Bar Feeder System
US$ 6,500 - 9,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lu Young
Place of Origin:
Shandong, China
Model Number:
CK0640A
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Swiss Type CNC Automatic Lathe Machine With Auto Feeder for Sale LY-12CUS$ 100,000 - 150,000MOQ: 1 Set -
Horizontal High Precision CNC Turning Lathe Machine Price CK6150US$ 12,000 - 20,000MOQ: 1 Set
-
Fanuc ,Siemens Control Cnc Lathe Machine CK6136US$ 7,000 - 15,000MOQ: 1 Set
-
High Precision New Cnc Lathe Prices Factory Sale CE Certificate CK6140US$ 8,500 - 11,000MOQ: 1 Set
-
Micro Cnc Lathe for Training Education Metal Cnc LatheUS$ 5,500 - 7,000MOQ: 1 Set
Brand Name
Lu Young
Place of Origin
Shandong, China
Model Number
CK0640A
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New

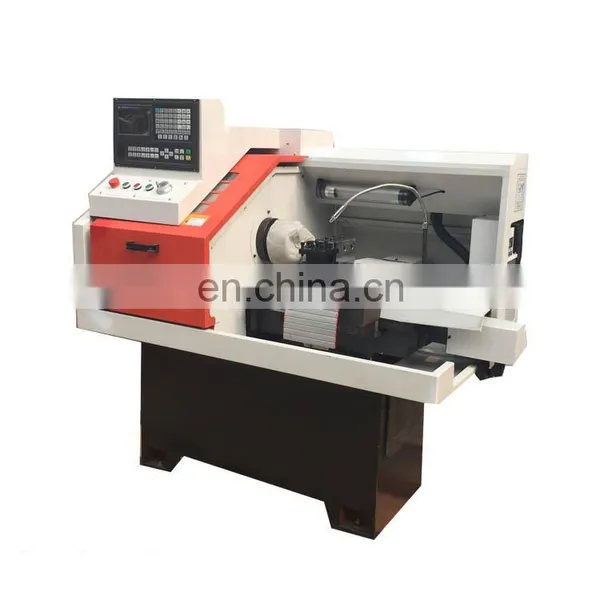

Small Auto Machine CNC Lathe Bar Feeder system
Product Description

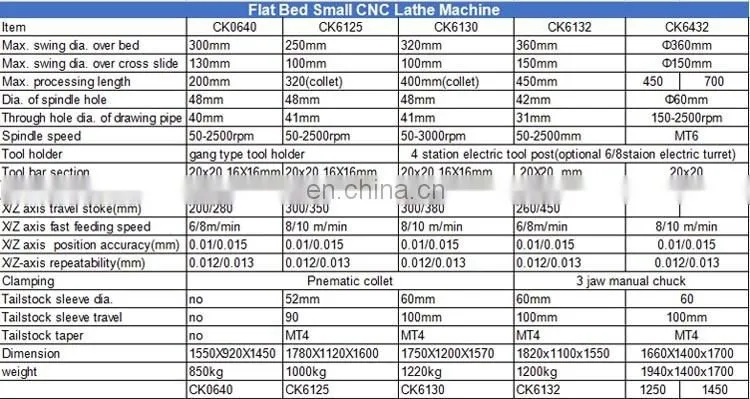

| Flat Bed Small CNC Lathe Machine | |
| Item | CK0640 |
| Max. swing dia. over bed | 300mm |
| Max. swing dia. over cross slide | 130mm |
| Max. processing length | 200mm |
| Dia. of spindle hole | 48mm |
| Through hole dia. of drawing pipe | 40mm |
| Spindle speed | 50-2500rpm |
| Tool holder | gang type tool holder |
| Tool bar section | 20x20 16X16mm |
| Main motor power | 3kw |
| X/Z axis travel stoke(mm) | 200/280 |
| X/Z axis fast feeding speed | 6/8m/min |
| X/Z axis position accuracy(mm) | 0.01/0.015 |
| X/Z-axis repeatability(mm) | 0.012/0.013 |
| Clamping | Pneumatic collet |
| Tailstock sleeve dia. | no |
| Tailstock sleeve travel | no |
| Tailstock taper | no |
| Dimension | 1550X920X1450 |
| weight | 850kg |
| CK0640 | |
| Standard configuration: | Option configuration: |

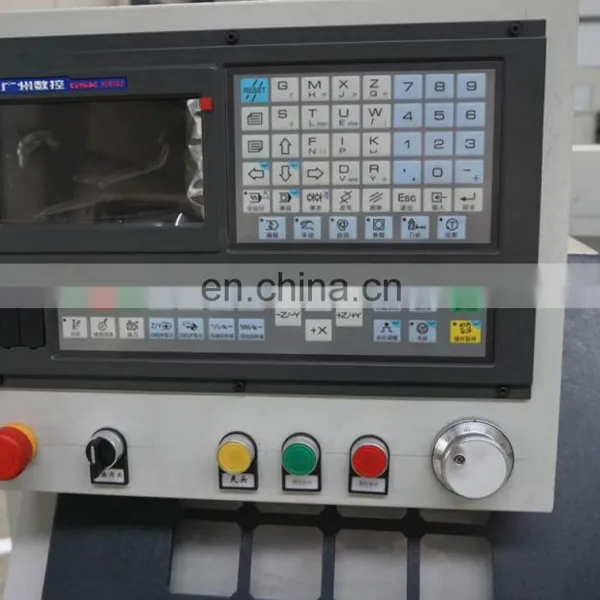

| GSK 928TD-L | Siemens,fanuc cnc controller |
| Pneumatic spring collet(2pcs free) | 4 station electrice tool holder |
| Gang type tool carrier | Auto feeder system |
| Auto lubrication system | Pneumatic chuck |
| Lighting system | Hydrualic chuck |
| Cooling system | Tailstock |
| 380V 3 phase(if your local have special request pls let us know) | |

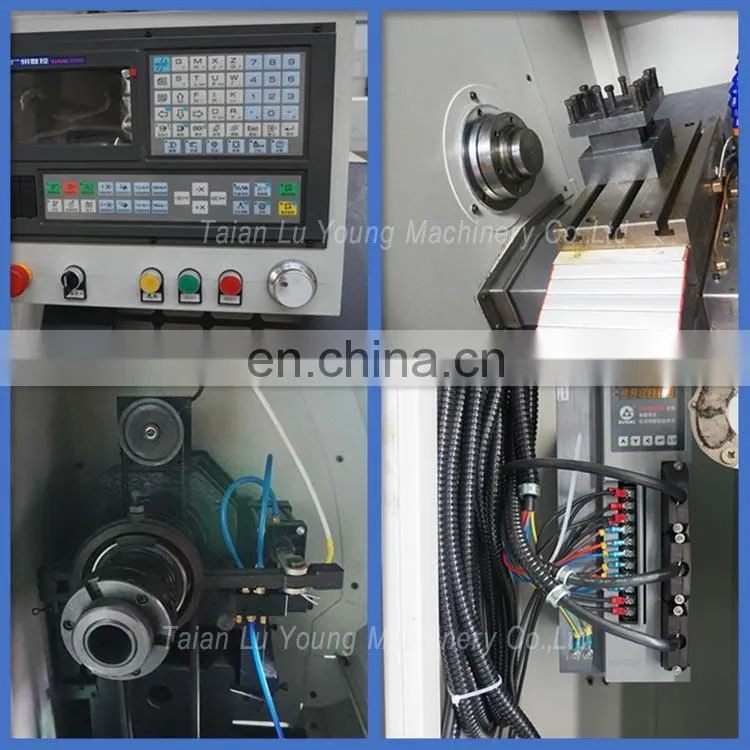

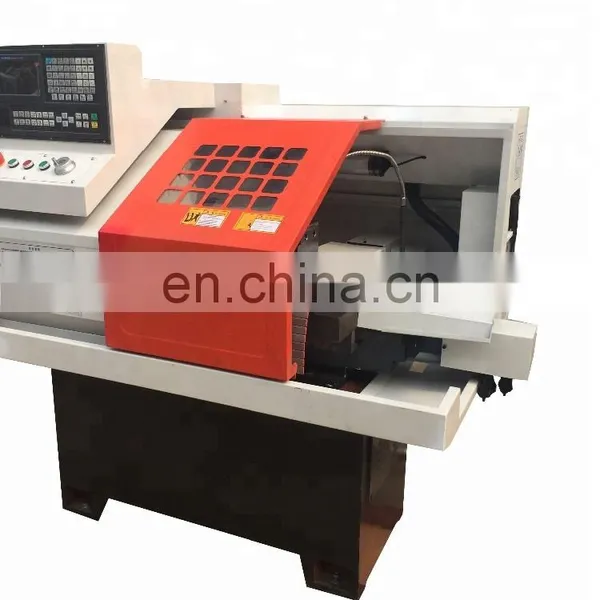

| Detail Photo: |
|

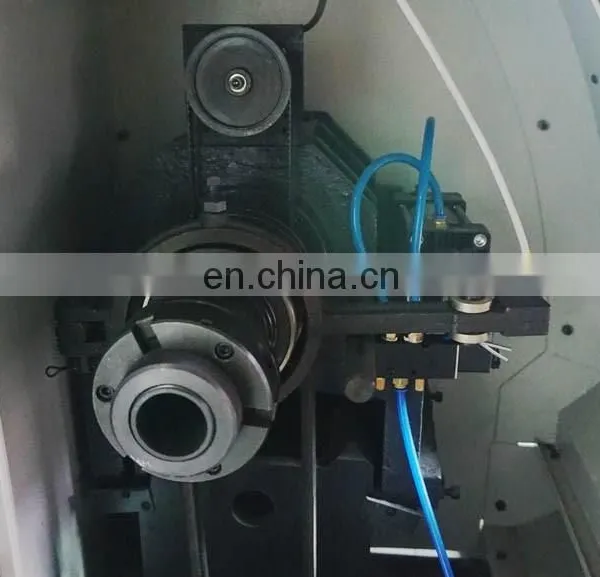

| Auto feeder system: |
|

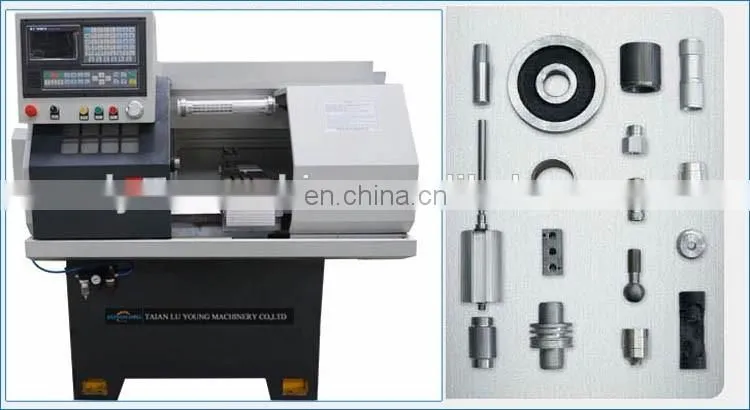

| Machining Samples: |
|
Related Products
Who Choose US
| Our Customer |
|
|
Packaging & Shipping
- We have 20 years experiences in cnc machine export.
- According the weight of our machine,we desgin defferent package to insure the transportation safety.
- We choose famous and well-established express company to arrange the shipping,they are professional and have the ability to confirm every process work well.
Contact with US
| Trade Contact! |
|
You Will Get Best Offer Within 24 Hours Attn : Bruce Yang Mobile &WhatsApp &Wechat : +86-18660852746 Skype :bruceyang688 |
|
