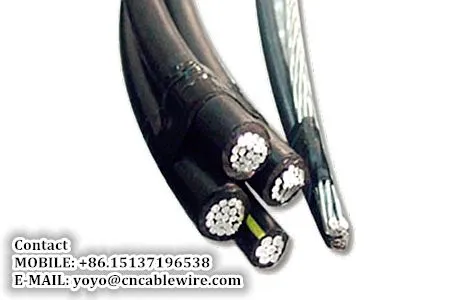

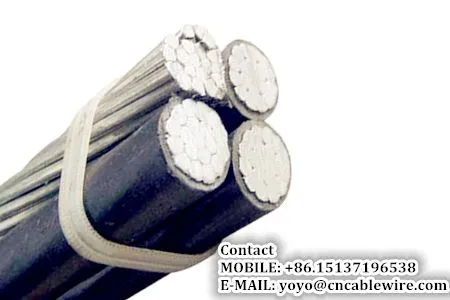

Help CenterQuadruplex Service Drop ABC Cable
Related Products
Application of Quadruplex Service Drop ABC Cable
ABC cable is a new type of power transmission overhead cable, which is widely used in overhead power transmission lines, improving the security and reliability of the electrified network.
Construction of Quadruplex Service Drop ABC Cable
The conductors are made of compressed 1350-H19 aluminium strands,the insulating material is polyethylene or crosslinked polyethylene. The neutral messengers are concentrically stranded 6201 series aluminum twisted aluminum(AAC) or steel-cored aluminum stranded wire(ACSR).
ABC Technical Characters Based on Standard
ASTM ANSI/ICEA S-76-474 and NFC 33-209
The Specification of Quadruplex Service Drop ABC Cable
| Code word | AWG or kcmil |
Bare Neutral Messenger |
Phase Conductor Code word |
Weight (kg/km) |
||
| AAC |
Rated strength (1bs) |
AAC |
Insulation Thickness (mm) |
|||
|
Stranding and Wires Dia. (mm) |
Stranding and Wires Dia. (mm) |
|||||
|
Clydesdatc |
3x4AWG+ 1x4AWG |
7/1.96 | 881 | 1/5.19 | 1.14 | 299 |
|
Pinto |
3x4AWG+ 1x4AWG |
7/1.96 | 881 | 7/1.96 | 1.14 | 306 |
|
Mustang |
3x2AWG+ 1x2AWG |
7/2.47 | 1320 | 7/2.47 | 1.14 | 461 |
|
Criollo |
3x1/0AWG+ 1x1/0AWG |
7/3.12 | 1990 | 19/1.89 | 1.52 | 744 |
|
Percheron |
3x2/0AWG+ 1x2/0AWG |
7/3.50 | 2510 | 19/2.13 | 1.52 | 914 |
|
Hanoverian |
3x3/0AWG+ 1x3/0AWG |
19/2.39 | 3310 | 19/2.39 | 1.52 | 1127 |
