Introduction

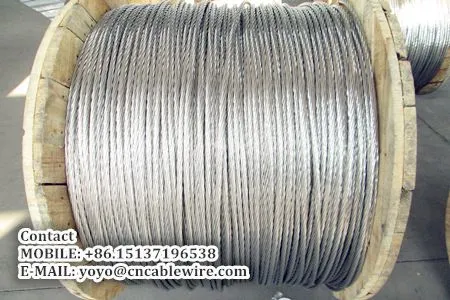

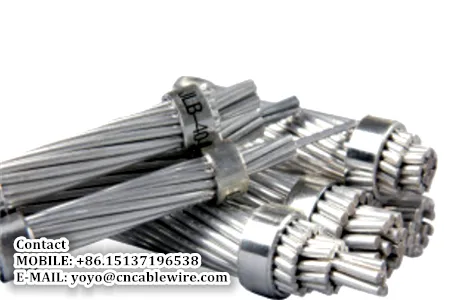

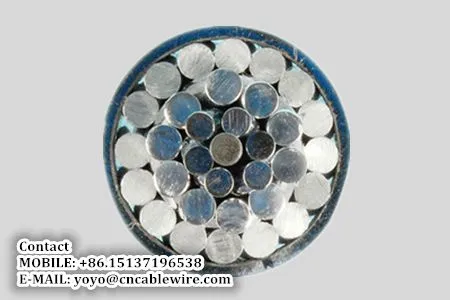

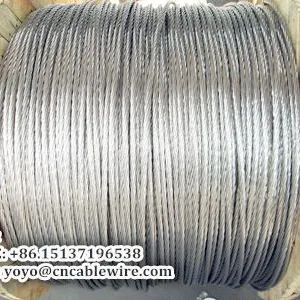

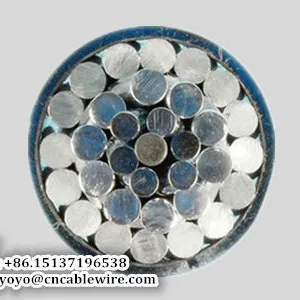

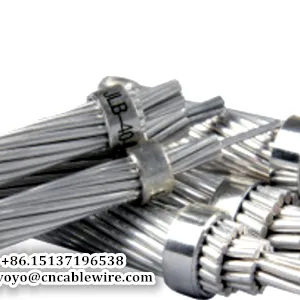

Aluminium Conductor Steel Reinforced is a type of high-capacity, high-strength stranded conductor typically used in overhead power lines. The outer strands are high-purityaluminium, chosen for its excellent conductivity, low weight and low cost. The center strand, or strands is/are of steel for additional strength to help support the weight of the conductor. Steel is higher strength than aluminium which allows for increased mechanical tension to be applied on the conductor. Steel also has lower elastic and inelastic deformation (permanent elongation) due to mechanical loading (e.g. wind and ice) as well as a lower coefficient of thermal expansion under current loading. These properties allow ACSR to sag significantly less than all-aluminium conductors.
Standards implemented
This product is the implementation of GB / T1179-2008 standards, GB / T1179-2008 is the same as IEC207、IEC209.
Using features
The product is used in the field of overhead power line.
Technical specification of ACSR 95/15 mm2
|
ACSR 95/15 mm2 | |
| Standard | GB/T 1179-83 |
| Area of aluminum | 94.4 mm2 |
| Area of steel | 15.3 mm2 |
| Total area | 109.7 mm2 |
| Overall diameter | 13.6 mm |
| Total weight of conductor | 380.8 kg/km |
| Nominal breaking load | 35.0 kN |
| Stranding & Diameter of wire | |
| Aluminum (26 strand) | 26/2.15 No/mm |
| Steel (7 Strand) | 7/1.67 No/mm |
| DC resistance at 20 ℃ | 0.3058 Ohm/km |
| Current carrying capacity (70 ℃) | 252 A |
Gongyi Shengzhou Metal Products Co., Ltd. is a professional China Wire and Cable Manufacturers, mainly supply YC Rubber Sheathed Cable,YH Rubber Cable,RVV Cable,YJV Cable,Aluminium Conductor Steel Reinforced(ACSR),Aerial Insulated Cable,ABC Cable,House Electric Wire, etc. series of wire and cable products, sincerely welcome everyone to visit.
Contact information:
/
MOBILE: +86.15137196538
Tel: +86.371.60266515
SKYPE: yoyo@cncablewire.com
Whatsapp: +86.15137196538
E-MAIL: yoyo@cncablewire.com
