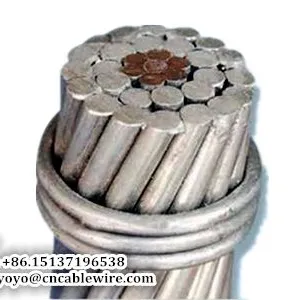

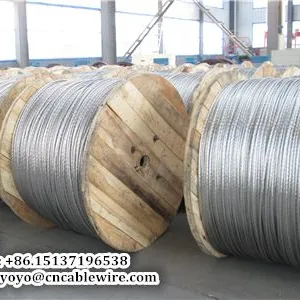

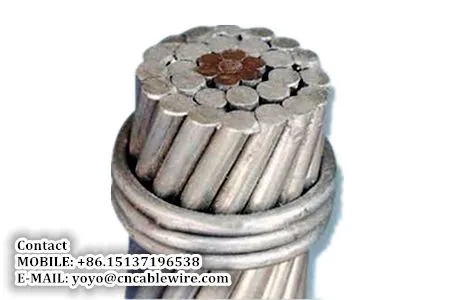

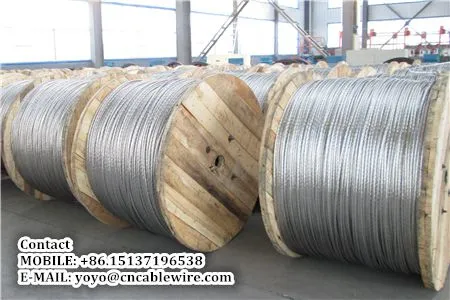

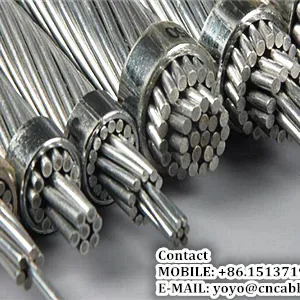

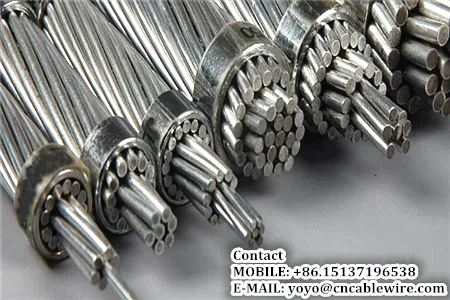

ACSR 150/25

ACSR 150/25 thumbnail-1
ACSR 150/25 thumbnail-2
ACSR 150/25 thumbnail-3
ACSR 150/25 photo-1
ACSR 150/25 photo-2
ACSR 150/25 photo-3
Negotiable MOQ: 10000 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Gongyi Shengzhou Metal Products Co.,Ltd.
Place of Origin:
China
Model Number:
ACSR
Contact Supplier Request Quote Chat Now
Gongyi Shengzhou Metal Product Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Gongyi Shengzhou Metal Products Co.,Ltd.
Place of Origin China
Model Number ACSR
Conductor Material Aluminum
ACSR 150/25


Standard of ACSR 150/25  mm2

This product can press GB1179-83, GB/T1179-1999 and Q/SX107-2001 standard and American standard ASTM - B231 manufacturing.The product is suitable for fixed installation transmission power line.Rare earth products conductive performance is good, strong anti-corrosion, acid resistance, is suitable for humid coastal areas.

Technical specification of ACSR 150/25 mm2


ACSR 150/25 mm2

Standard GB/T 1179-83
Area of aluminum 148.9  mm2
Area of steel 24.3  mm2
Total area 173.1  mm2
Overall diameter 17.1  mm2
Total weight of conductor 601  kg/km
Nominal breaking load 54.1  kN
Stranding & Diameter of wire
Aluminum 26/2.7  No/mm
Steel 7/2.1  No/mm
DC resistance at 20 ℃ 0.194  Ohm/km
Current carrying capacity (70 ℃) 331  A


Use Features of ACSR 150/25  mm2

The product is used in the field of overhead power line.

1. ACSR maximum allowable working temperature does not exceed 80 ℃.

2. Laying temperature should not be less than -20 ℃.

3. The wire allows bending radius of 12 times the cable diameter.


Gongyi Shengzhou Metal Products Co., Ltd. is a professional China Wire and Cable Manufacturers, mainly supply YC Rubber Sheathed Cable,YH Rubber Cable,RVV Cable,YJV Cable,Aluminium Conductor Steel Reinforced(ACSR),Aerial Insulated Cable,ABC Cable,House Electric Wire, etc. series of wire and cable products, sincerely welcome everyone to visit.



Contact information:

/

MOBILE: +86.15137196538

Tel: +86.371.60266515

SKYPE: yoyo@cncablewire.com

Whatsapp: +86.15137196538

E-MAIL: yoyo@cncablewire.com



Product Tags: ACSR 150/25 , ACSR , Aluminum Conductors Steel Reinforced
